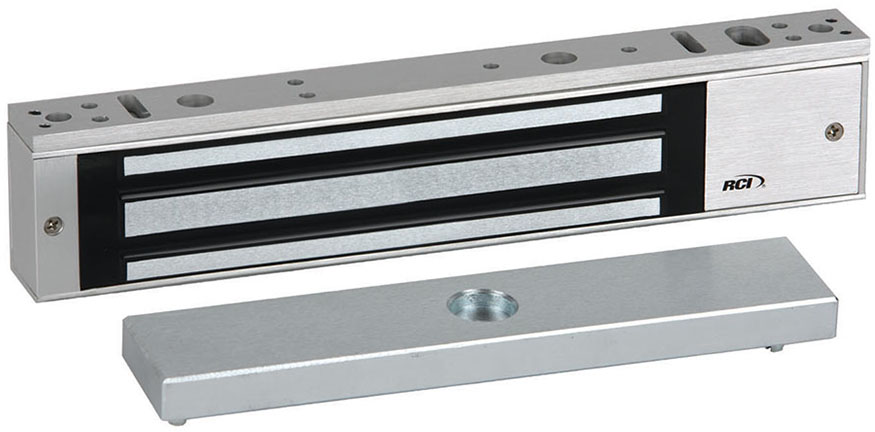

Rutherford Controls 8371-40 750lbs MiniMag 12/24VDC Dark Bronze offers a robust security solution designed specifically for single outswinging doors. With a compact width of 1-7/8 inches, this surface-mounted electromagnetic lock is perfect for narrow-style interior or perimeter doors, ensuring compliance with building codes. Its impressive holding force of up to 750 lbs provides peace of mind for high-traffic areas. Installation is simplified thanks to the keyhole mounting system and easy-access wiring cavity, which minimizes setup time and eliminates the need for additional brackets. The lock features a stabilizing 4-bolt "drop stop" mounting system and surge protection, ensuring reliable operation. For added versatility, it operates on field-selectable voltage options of 12 or 24 VDC, accommodating various system requirements. Constructed with durability in mind, the RCI 8371-40 is designed to overcome residual magnetism and features a hardened steel armature nut for enhanced security. Its dark bronze finish not only complements various architectural styles but also resists wear and tear. Additionally, this model is UL 294 certified and California State Fire Marshal listed, making it a dependable choice for professionals seeking quality access control solutions.
750lbs MiniMag 12/24VDC Dark Bronze
The surface MiniMag locks are designed with a 1-7/8" width to keep undersized openings within code. These locks are ideal solutions for traffic control on narrow-style interior or perimeter doors. The RCI 8371 surface MiniMag is for single outswinging doors. The RCI 8372 surface MiniMag is used for double outswinging doors without mullions. These electromagnetic locks install perfectly alongside most automatic door operators or stop-mounted door hardware. They reduce installation time and eliminate the need for extra brackets.
Features:
Technical Details:
Applications:
Alternate Codes: 140685, 8371-40, 837140, 8371 X 40
Armature Depth: 1/2"
Armature Height: 1-1/2"
Armature Width: 7-1/4"
Category: Access Control, Maglocks, Single Maglocks
Certifications: CAN/ULC-S104, CSFM California State Fire Marshal, UL 10C
Current Draw: 0.26A @ 24VDC, 0.52A @ 12VDC
Door Application: Maglocks
Door Swing: Out Swing
Fail Safe/ Fail Secure: FS - Fail Safe
Finish Color: Anodized Aluminum, Dark Bronze
Holding Force: 750lbs
Lock Body Depth: 1"
Lock Body Height: 1-7/8"
Lock Body Width: 9-3/8"
Maglock Type: Single Maglock
Manufacturer: RCI Rutherford Controls
Mounting: Surface
Series: 8370
Voltage: 12, 24
Voltage Type: Field Selectable, VDC - Direct
