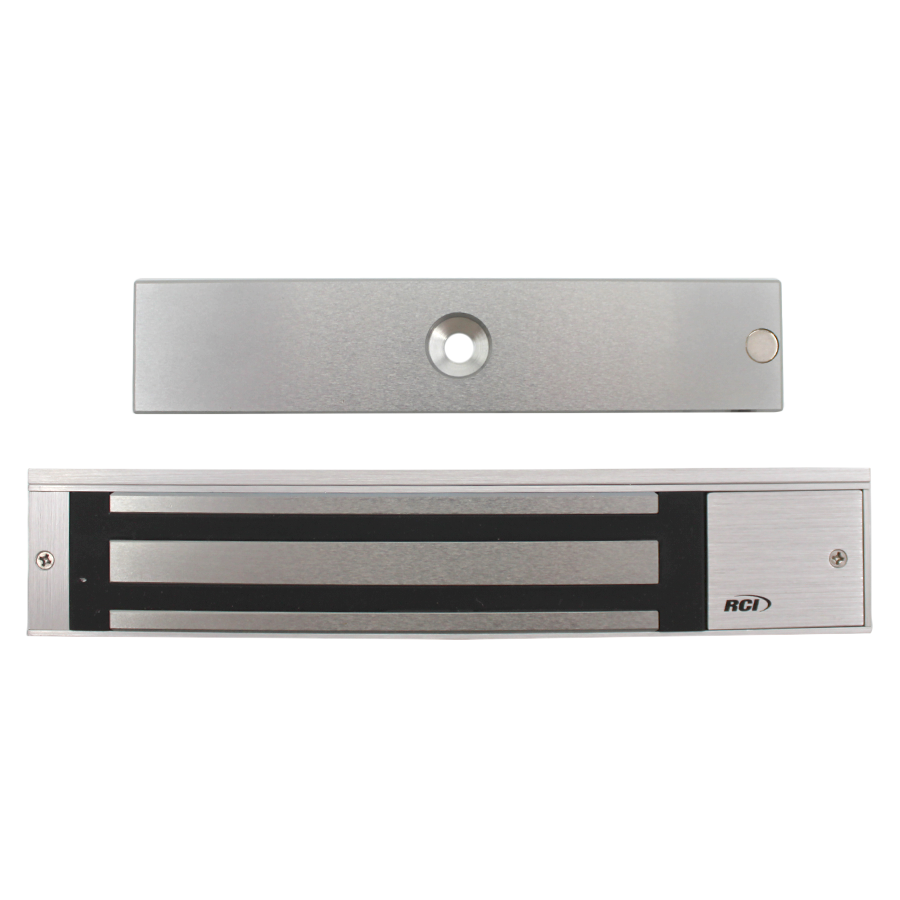

Rutherford Controls 8371-DSS/SCS-28 750lbs MiniMag Door Status Sensor, 12/24VDC, Aluminum US28

Rutherford Controls 8371-DSS/SCS-28 750lbs MiniMag is a robust electromagnetic lock designed for single outswinging doors, providing exceptional security and reliability. With a holding force of up to 750 lbs, this MiniMag ensures that your doors remain securely locked when needed. The 8371 model is versatile, operating at field-selectable voltages of 12 or 24VDC, making it adaptable for various installation requirements. Constructed from durable brushed anodized aluminum, this lock features a compact design with dimensions of 9-3/8"W x 1-7/8"H x 1"D, allowing it to fit seamlessly on narrow-style interior or perimeter doors. The innovative "drop stop" mounting system utilizes four bolts for added stability, while the keyhole mounting design streamlines installation, reducing labor time. Enhancing its functionality, the optional door status sensor (DSS) and security condition sensor (SCS) allow for real-time monitoring of door status, providing peace of mind. This lock is also UL 294 certified and listed by the California State Fire Marshal, ensuring compliance with safety standards. With a lifetime limited warranty, the Rutherford Controls 8371 MiniMag is a dependable choice for both professional installers and discerning homeowners seeking advanced access control solutions.

750lbs MiniMag 12/24VDC, Door Status Sensor, Security Condition Sensor, Aluminum US28

The surface MiniMag locks are designed with a 1-7/8" width to keep undersized openings within code. These locks are ideal solutions for traffic control on narrow-style interior or perimeter doors. The RCI 8371 surface MiniMag is for single outswinging doors. The RCI 8372 surface MiniMag is used for double outswinging doors without mullions. These electromagnetic locks install perfectly alongside most automatic door operators or stop-mounted door hardware. They reduce installation time and eliminate the need for extra brackets.

Features:

• Stabilizing 4 bolt "drop stop" mounting
• Keyhole mounting for ease of installation
• Surge protection
• Easy-access wiring cavity
• Lifetime limited warranty
• Fail-safe
• Energy: 520mA Field-Selectable 12/24VDC (Max at 12VDC for 8371, 1.04A for 8372)
• Strength: Up to 750lbf Holding force
• Monitoring: Optional door status sensor (DSS)/ security condition sensor (SCS) available
• UL 294 Special locking arrangement component
• CAN/ULC S104
• UL 10C 1-Hour
• California State fire marshal listed (CSFM: 3774-2275:0500)

Technical Details:

• Dimensions: 9-3/8"W x 1-7/8"H x 1"D (238mm x 48mm x 25mm) – Includes 3/16" (5mm) mounting bracket
• Armature Plate: 7-1/4"W x 1-1/2"H x 1/2"D (185mm x 38mm x 13mm)
• Designed to overcome residual magnetism
• Hardened steel armature nut
• Includes 3/8" (9.5mm) armature plate
• Available in brushed anodized aluminum (28) or brushed anodized dark
• Bronze (40) finish

Applications:

• Single outswinging doors
• Single inswinging doors (use with TJ (Z) bracket)
