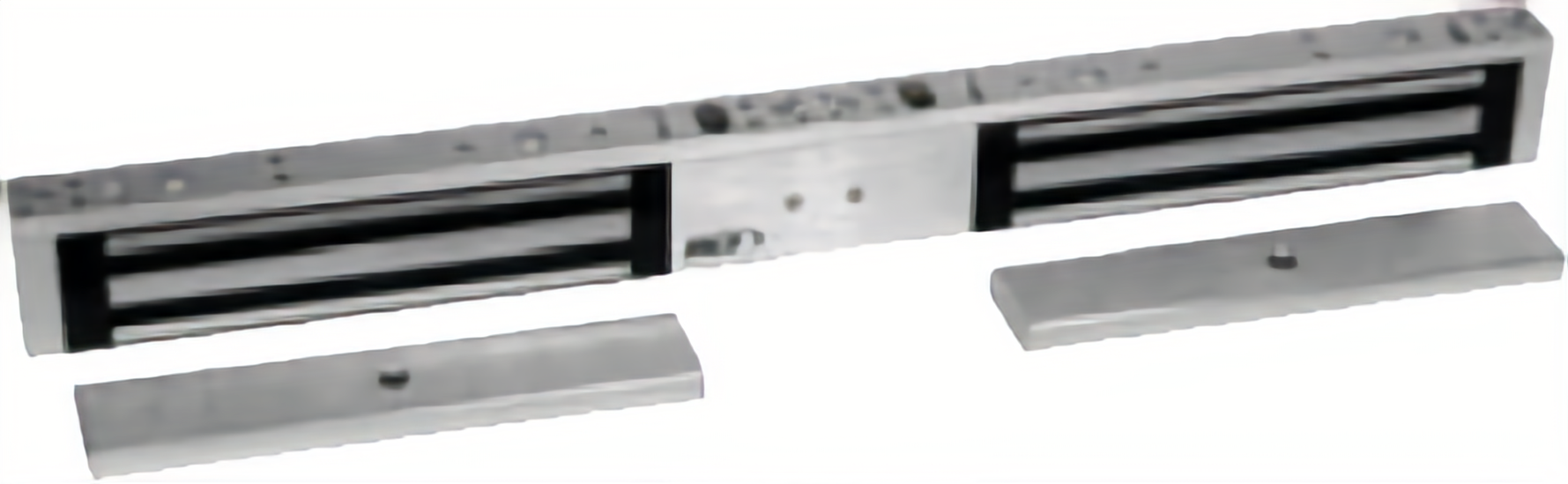

Rutherford Controls 8372-40 750lbs EA Double MiniMag 12/24VDC Dark Bronze

Rutherford Controls 8372-40 750lbs EA Double MiniMag 12/24VDC Dark Bronze offers robust security for double outswinging doors without mullions, making it an ideal choice for both commercial and residential applications. With a holding force of up to 750 pounds, this surface-mounted electromagnetic lock ensures reliable access control while maintaining compliance with code requirements for narrow-style doors. Designed for ease of installation, the MiniMag features a stabilizing 4-bolt "drop stop" mounting system and keyhole mounting, significantly reducing installation time. It operates on field-selectable 12 or 24 VDC power, providing flexibility for various setups. The lock is equipped with surge protection and an easy-access wiring cavity, promoting safe and efficient installation. With a sleek dark bronze finish, the Rutherford Controls 8372-40 not only enhances security but also complements modern aesthetics. It is UL 294 certified and California State Fire Marshal listed, ensuring it meets the highest safety standards. Optional door status sensors enhance monitoring capabilities, providing additional peace of mind. Whether paired with automatic door operators or used independently, this MiniMag lock is a powerful solution for maintaining security in high-traffic areas. Invest in the Rutherford Controls 8372-40 for a fail-safe locking mechanism that prioritizes both safety and convenience.

750lbs EA Double MiniMag 12/24VDC Dark Bronze

The surface MiniMag locks are designed with a 1-7/8" width to keep undersized openings within code. These locks are ideal solutions for traffic control on narrow-style interior or perimeter doors. The RCI 8371 surface MiniMag is for single outswinging doors. The RCI 8372 surface MiniMag is used for double outswinging doors without mullions. These electromagnetic locks install perfectly alongside most automatic door operators or stop-mounted door hardware. They reduce installation time and eliminate the need for extra brackets.

Features:

• Stabilizing 4 bolt "drop stop" mounting
• Keyhole mounting for ease of installation
• Surge protection
• Easy-access wiring cavity
• Lifetime limited warranty
• Fail-safe
• Energy: 520mA Field-Selectable 12/24VDC (Max at 12VDC for 8371, 1.04A for 8372)
• Strength: Up to 750lbf Holding force
• Monitoring: Optional door status sensor (DSS)/ security condition sensor (SCS) available
• UL 294 Special locking arrangement component
• CAN/ULC S104
• UL 10C 1-Hour
• California State fire marshal listed (CSFM: 3774-2275:0500)

Technical Details:

• Dimensions: 18-3/4"W x 1-7/8"H x 1"D (476mm x 48mm x 25mm) – Includes 3/16" (5mm) mounting bracket
• Armature Plate: 7-1/4"W x 1-1/2"H x 1/2"D (185mm x 38mm x 13mm) each
• Designed to overcome residual magnetism
• Hardened steel armature nut
• Includes 3/8" (9.5mm) armature plate
• Available in brushed anodized aluminum (28) or brushed anodized dark
• Bronze (40) finish

Applications:

• Pairs of outswinging doors without mullion
• Pairs of inswinging doors without mullion (use with TJ (Z) bracket)
