Rutherford Controls 8375-28 300lbs Micromag 12/24VDC Aluminum

Rutherford Controls 8375-28 300lbs Micromag 12/24VDC Aluminum offers a robust and compact locking solution ideal for a variety of applications. Measuring just 6-17/32" in width, 1-1/2" in height, and 13/16" in depth, this electromagnetic lock is designed for spaces where size matters without compromising strength-boasting an impressive holding force of up to 300lbf. The 8375 MicroMag features a low-profile design that blends seamlessly into its surroundings, making it perfect for cash drawers, drug cabinets, filing cabinets, safes, vending machines, and access cover hatches. Its easy-access wiring cavity simplifies installation and maintenance, while the built-in surge protection enhances reliability. Designed for fail-safe operation, the MicroMag operates on field-selectable 12/24VDC, drawing a maximum current of 360mA at 12VDC. The brushed anodized aluminum finish provides a sophisticated look, and the hardened steel armature nut ensures durability. Additionally, it is equipped with self-drilling Teks fasteners for secure mounting. With a lifetime limited warranty, the Rutherford Controls 8375-28 ensures peace of mind, making it a smart choice for building professionals and discerning homeowners alike. Choose the 8375 MicroMag for a secure, dependable locking solution that meets your needs.

300lbs Micromag 12/24VDC Aluminum

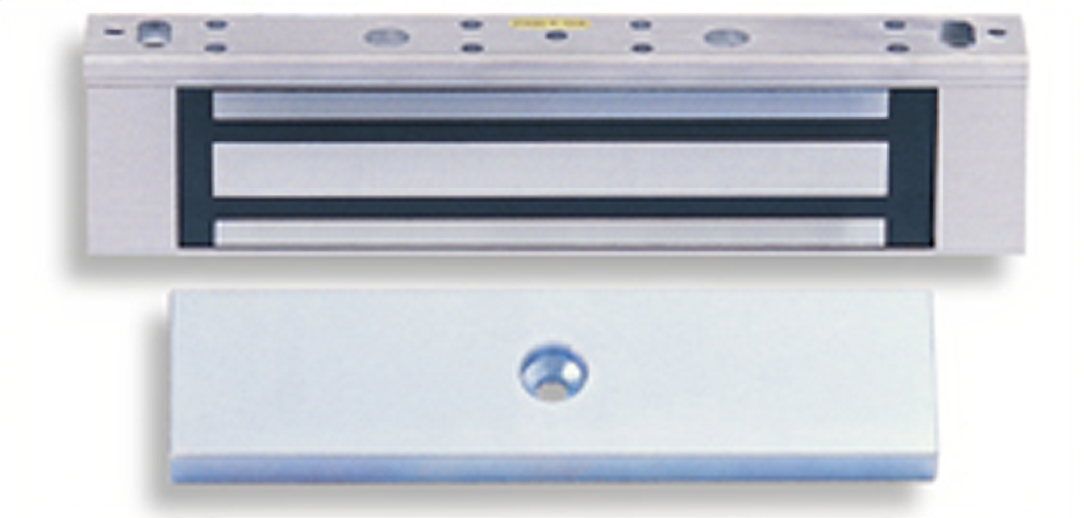

The 8375 surface MicroMag is uniquely small, measuring 6-17/32"W x 1-1/2"H x 13/16"D. This electromagnetic lock may be a compact design, but with a holding force of up to 300lbf it doesn’t lack strength. The RCI 8375 surface MicroMag is a secure locking solution for swinging doors on small enclosures.

Features:

• Low-profile compact design
• Easy-access wiring cavity
• Surge protection
• Energy: 360mA Field-selectable 12/24VDC (max at 12VDC)
• Strength: Up to 300lbf Holding force
• Lifetime Limited warranty
• Mode: Fail-safe

Technical Details:

• Dimensions: 6-17/32"W x 1-1/2"H x 13/16"D (166mm x 38mm x 21mm) – Includes 1/8" (3mm) mounting bracket
• Armature Plate: 5-1/8"W x 1-1/4"H x 21/64"D (130mm x 32mm x 8.5mm)
• Designed to overcome residual magnetism
• Hardened steel armature nut
• Self-drilling Teks fasteners
• Includes 21/64" (8.5mm) armature plate
• Brushed anodized aluminum (28) finish

Applications:

• Cash drawers
• Drug cabinets
• Filing cabinets
• Safes
• Vending machines
• Access cover hatches

Resources

• Cut Sheet
