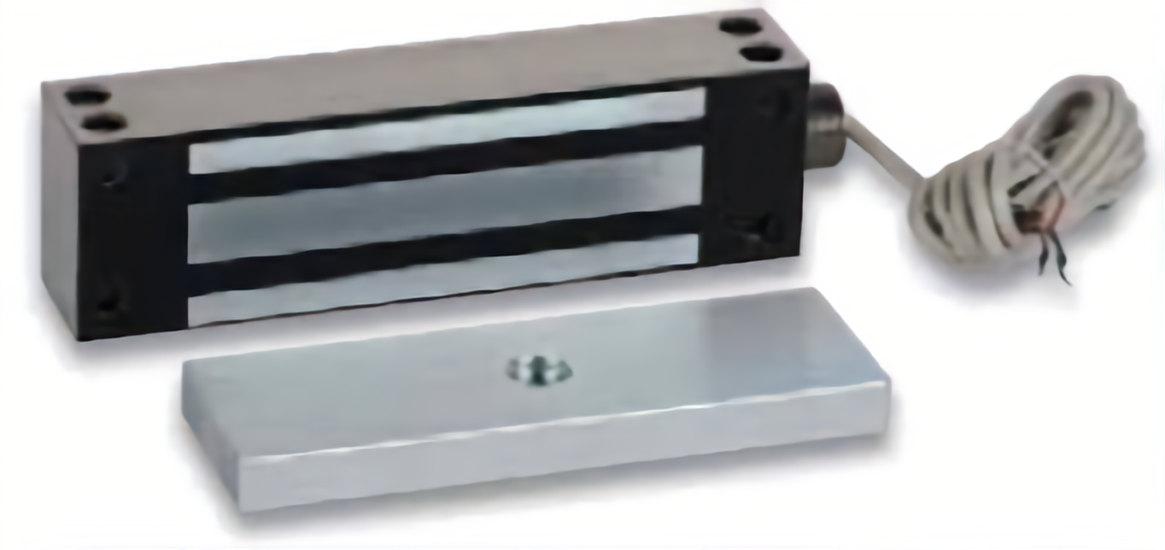

Rutherford Controls 8380-32D 1500lbs GateMag w/ Remote Lock Status

Rutherford Controls 8380-32D 1500lbs GateMag with Remote Lock Status is the ultimate solution for securing both interior and exterior gates with confidence. Engineered with a rugged, weather-resistant stainless steel housing, this electromagnetic lock stands up to the elements while providing reliable performance. The built-in remote lock status (RLS) feature allows for convenient monitoring, indicating whether the lock is engaged or disengaged, which enhances operational efficiency. Designed for versatility, the 8380 GateMag can be mounted through the face or bottom, accommodating various installation preferences. Its extra-long wire cable and built-in conduit fitting simplify wiring to an electrical box, making installation a breeze. Offering a robust holding force of up to 1,200 lbs, this maglock ensures your gates remain securely locked, while its fail-safe mode guarantees safety in emergencies. Certified for fire doors rated up to 1-1/2 hours and equipped with surge protection, the GateMag is both reliable and compliant with industry standards. Its sleek brushed stainless steel finish complements any environment, whether it’s a sliding gate, swinging gate, or tool cage. With a lifetime limited warranty, the Rutherford Controls 8380-32D is a smart investment for peace of mind and security.

1500lbs GateMag w/ Remote Lock Status

The 8380 GateMag is weather resistant with a rugged, stainless steel housing. Making it an excellent solution for interior and exterior perimeter gates. The GateMag electromagnetic lock features a built-in conduit fitting and an extra-long wire cable for easy wiring to an electrical box. Remote monitoring access is easy with the RCI 8380 GateMag. It includes a built-in remote lock status (RLS) that indicates whether the magnet is locked or unlocked.

Features:

• Rugged, stainless steel housing
• Weather-resistant
• Built-in remote lock status (RLS) indicated whether the magnet is locked or unlocked
• Versatile face or bottom through-bolt mounting
• Built-in conduit fitting and extra-long wire cable allowing easy wire access to an electrical box
• Surge protection
• Energy: 480mA Field-selectable 12/24VDC (max at 12VDC)
• Strength: Up to 1,200lbf Holding force
• Lifetime limited warranty
• Mode: Fail-safe
• Fire-Rated: CAN/ULC S104 UL 10C 1-1/2-Hour
• Environment: Rugged weather-resistant design

Technical Details:

• Dimensions: 8-7/8"W x 2-1/2"H x 1-3/4"D (225mm x 63mm x 45mm)
• Armature Plate: 7-7/16"W x 2-3/8"H x 5/8"D (190mm x 61mm x 16mm)
• Designed to overcome residual magnetism
• Includes 5/8" (16mm) armature plate, optional 3/8" (9.5mm) available
• Brushed stainless steel (32D) finish
• UL 10C Auxiliary locks listed for fire doors rated up to 1-1/2-hours

Applications:

• Exterior or interior gates
• Sliding gates
• Swinging gates
• Tool cages
• Fences
• Storage areas
