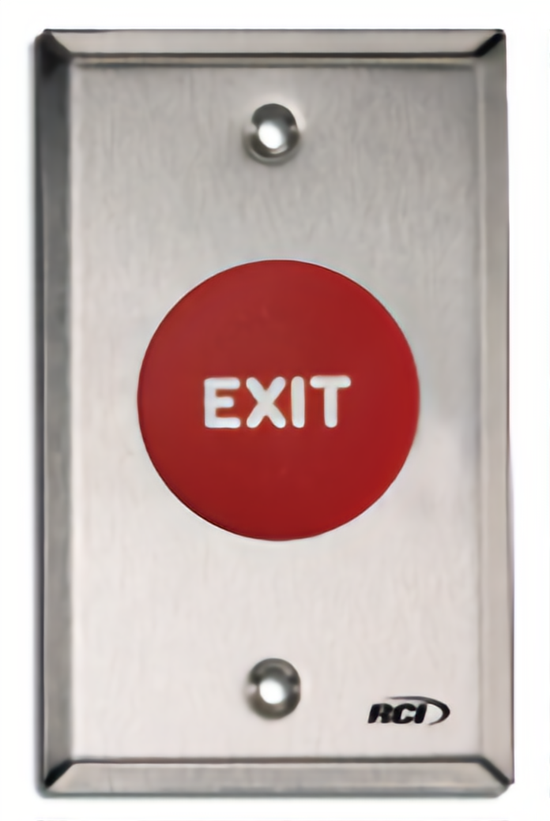

Rutherford Controls 908RE-MA-32D Maintained Red Exit Button 1-3/4in

Rutherford Controls 908RE-MA-32D Maintained Red Exit Button 1-3/4in is a reliable and efficient solution for automatic door operation. Designed for quick access, this mushroom push button is perfect for exit operations, ensuring ease of use in both commercial and residential settings. The button features a striking red color with an engraved "EXIT" sign, facilitating immediate recognition. Constructed from durable stainless steel, the brushed finish (32D) not only enhances the aesthetic appeal but also provides resistance against tampering and wear. The 1-9/16" diameter button ensures comfortable operation, while the momentary and maintained switch options allow for versatile functionality to suit different applications. Installation is straightforward, as the button can be mounted on a single gang surface or recessed electrical box, with a tamper-proof hardware kit that includes stainless steel screws and a spanner bit. With dimensions of 2-3/4" x 4-1/2" (70mm x 114mm), it fits seamlessly into various environments. Operating at 24VDC with a relay amperage of 10 Amp, this push button is ideal for access control systems, providing both reliability and security. Choose the Rutherford Controls 908RE-MA-32D for a dependable exit solution that meets your accessibility needs.

Maintained Red Exit Button 1-3/4in

The 906 and 908 are mushroom push buttons switches for operating automatic doors. The RCI 906 push button is dedicated for handicap use and the RCI 908 push button is utilized for exit operation. These push buttons quickly and easily mount to single gang surface or recessed electrical boxes. The hardware kit is tamper-proof and includes stainless steel screws and spanner bit with a brushed stainless steel (32D) faceplate.

Features:

• Red or green, 1-9/16" (40mm) diameter button
• Available with engraved "EXIT" (English, French or Spanish) or blank
• Quickly mounts to single gang surface or recessed electrical box
• Hardware kit includes stainless steel tamper-proof screws and spanner bit
• Momentary (2-SPST), maintained (2-SPST) or time-delay (DPDT) switches available
• Brushed stainless steel (32D) faceplate
• Dimensions: 2-3/4" x 4-1/2" (70mm x 114mm)

Resources

• Cut Sheet
