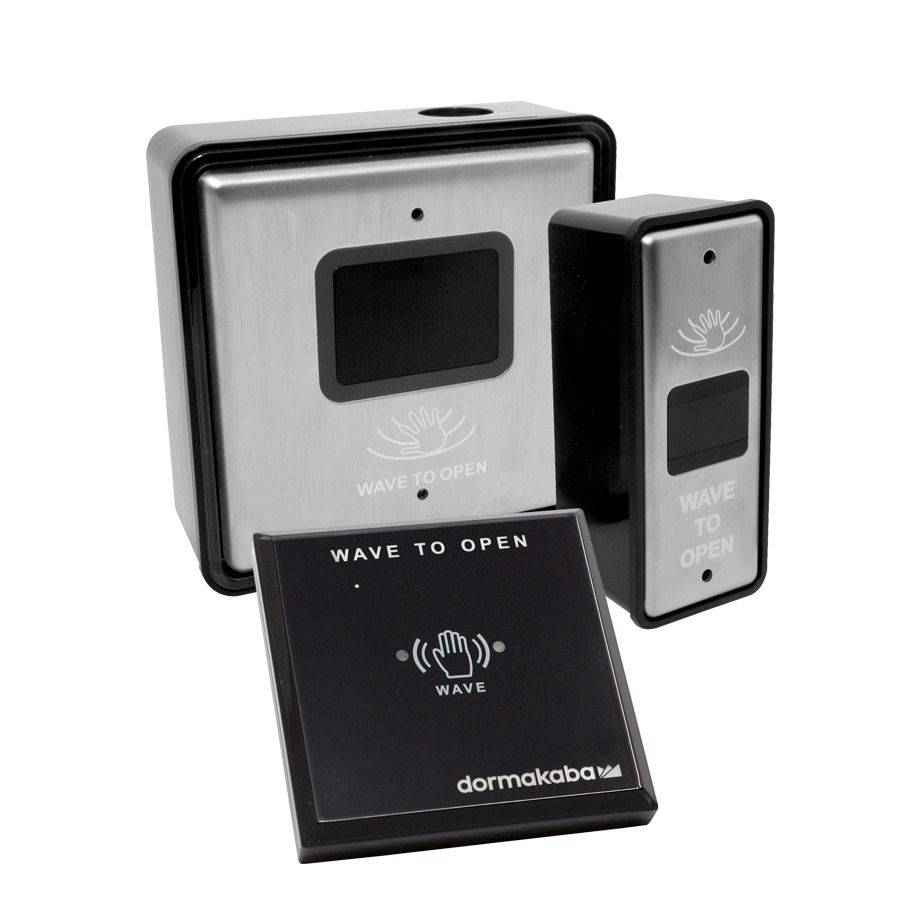

Rutherford Controls 912-WBT-R Single Switch and Receiver with Waving Hand Icon

Rutherford Controls 912-WBT-R Single Switch and Receiver with Waving Hand Icon offers a sophisticated solution for touch-free activation in a variety of environments. Utilizing advanced infrared motion detection technology, this device ensures reliable and hygienic operation, with activation speeds of less than 130 milliseconds. Ideal for settings such as hospitals, pharmacies, and clean rooms, the 912-WBT-R detects the movement of hands or reflective objects and triggers automatic door openers, promoting a seamless flow of traffic while minimizing contact. This actuator features silent operation, making it perfect for noise-sensitive areas. The adjustable detection distance ranges from 3 to 30 cm (1" to 12"), catering to various needs. With a low power consumption design, the unit boasts a battery lifespan of approximately 450 days, powered by four AA batteries (not included). The receiver operates within a voltage input of 12 to 30 VDC and is compatible with 1 or 4 channel remote fobs, ensuring versatility. The SPDT relay output can handle 3A at 30VDC, making it suitable for signaling or switching automatic doors and access control systems. Certified by FCC and CE, the Rutherford Controls 912-WBT-R is a dependable choice for modern access control solutions.

Single Switch and Receiver with Waving Hand Icon

The 912 series wireless, battery power, actuators utilize proven infrared motion detection technology to ensure consistent, dependable touch-free activation and can be adjusted to comply with ANSI knowing act applications. The 912 series, available in three models including 912GL for glass wall or door applications, detects moving objects such as a hand, reflective object, cart, or wheelchair and relays a signal triggering an automatic door opener. It is ideal for use in hospitals, pharmacies, clean rooms, food service facilities, and other applications requiring a hygienic touch free activation method.

Features:

• Infrared motion detection technology
• Touch free activation with hand or reflective object provides clean and hygienic activation (less than 130 ms)
• Silent activation for hospitals and other noise-sensitive environments
• 1 or 4 channel remote fob (coming soon)
• Switches are available with or without receivers
• 2.4Ghz transmitter and receiver (line of site +30 meters/100ft)
• SPDT relay output can be used for signaling/switching automatic doors and access control (3A @ 30VDC)
• Low power consumption providing long battery life (4"AA"-912, 2"AA"-912N, 2"AAA"-912GL). Batteries not included.
• Detection distance is adjustable from 3~30 cm (1"-12")
• Selectable activation output between 1.5 seconds or "latching", meaning activation "on", activation "off"
• Receiver voltage input 12~30 VDC
• FCC, CE certified
