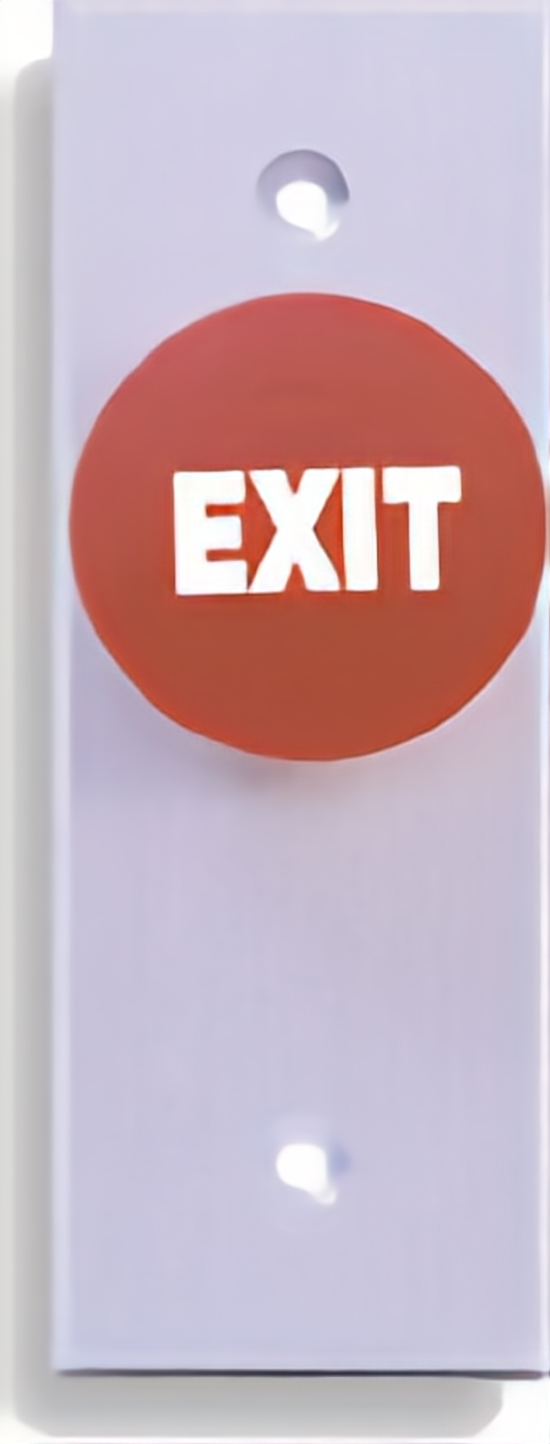

Rutherford Controls 918N-MO28 2-SPST Narrow Momentary Exit Button

Rutherford Controls 918N-MO28 2-SPST Narrow Momentary Exit Button offers a robust solution for secure exit operations. Designed with a tamper-resistant extruded aluminum construction, this push button features a durable 1/4" plate with beveled edges, ensuring long-lasting performance in high-traffic areas. The 1-9/16" diameter button is available in vibrant red or green, making it easily identifiable for users. This versatile exit button can be customized with an engraved "exit" label in English, French, or Spanish, or left blank for a more streamlined appearance. Its quick-mount design accommodates both standard single gang boxes and narrow-stile door frames, providing flexibility in installation. The included hardware kit features stainless steel tamper-proof screws and a spanner bit, enhancing security and ease of setup. With a momentary relay action rated for 6 Amps at 24V, the 918N-MO28 is suited for various access control applications. The faceplate is available in brushed anodized aluminum or brushed dark bronze finishes, allowing for both aesthetic appeal and durability. Designed to meet the needs of both building professionals and knowledgeable homeowners, this exit button is an essential component for any secure environment.

2-SPST Narrow Momentary Exit Button

The 916 and 918 round push buttons are tamper-resistant with an extruded aluminum 1/4" plate with beveled edges that provides additional durability. These mushroom push buttons are available in momentary (2-SPST), maintained (2-SPST), or time-delay (DPDT) switches. The RCI 916 push button is devoted for handicap use and the RCI 918 push button is utilized for exit operation.

Features:

• Red or green, 1-9/16" (40mm) diameter button
• Available with engraved "exit" (English, French or Spanish) or blank
• Quickly mounts to single gang box (standard) or narrow-stile door frames (narrow)
• Extruded aluminum 1/4" (6.4mm) plate with beveled edges for tamper-resistance and durability
• Hardware kit includes stainless steel tamper-proof screws and spanner bit Momentary (2-SPST), maintained (2-SPST) or time-delay (DPDT) switches available
• Faceplate available in brushed anodized aluminum (28) or brushed anodized dark bronze (40)
• Standard: 3"W x 4-3/4"H (76mm x 121mm)
• Narrow: 1-5/8"W x 4-3/4"H (45mm x 121mm)

Resources

• Cut Sheet
