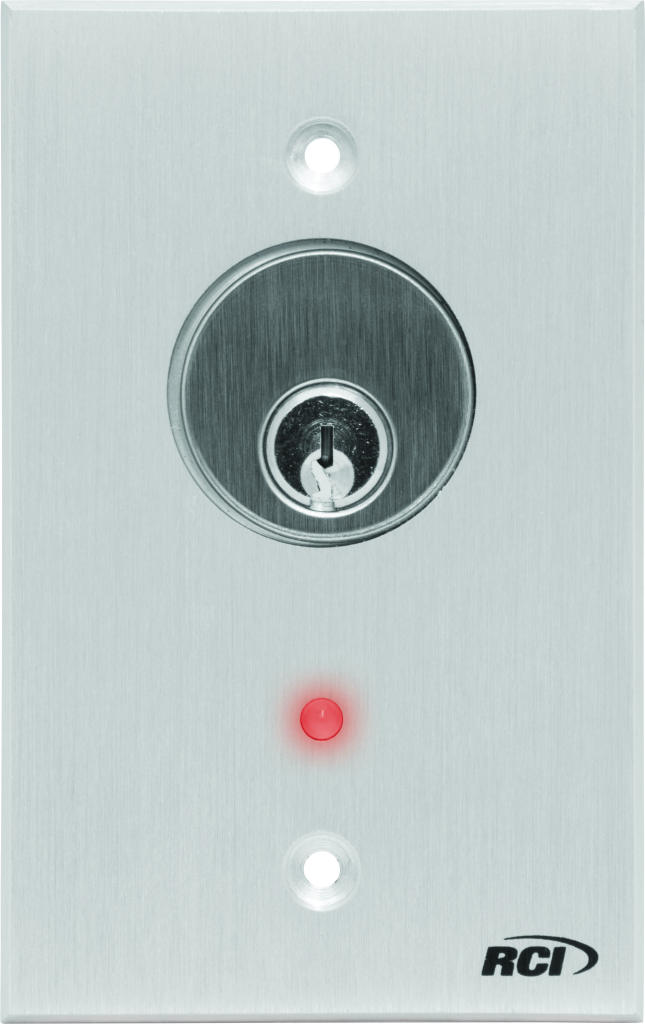

Rutherford Controls 960-MAL-28 SPDT Maintained Key Switch w/LED

Rutherford Controls 960-MAL-28 SPDT Maintained Key Switch w/LED offers a robust solution for access control in high-use environments. Crafted from durable extruded aluminum, this key switch features a tamper-resistant design with a sleek brushed anodized aluminum finish that enhances both functionality and aesthetics. The innovative one-piece bracket includes a two-position switch holder, ensuring easy installation and operation. This model supports multiple switch types, including momentary, maintained, and time-delay options, making it versatile for various applications. With a bi-color LED indicator, users can easily monitor the status of the switch, providing added convenience and security. The switch is compatible with standard mortise cylinders, accommodating both straight and clover cams in 1-1/8" or 1-1/4" lengths. Installation is a breeze with included stainless steel tamper-proof screws and a spanner bit, allowing for quick mounting to standard single gang boxes or narrow-stile door frames. Designed for commercial, industrial, and institutional settings, the 960-MAL-28 excels in vestibules, storefronts, and healthcare facilities. With a 3-year limited warranty and the option for a reset/override feature, the Rutherford Controls 960-MAL-28 is a reliable choice for any security-focused project.

SPDT Maintained Key Switch w/LED

The 960 tamper resistant keyswitch series is available in momentary (SPDT/DPDT), maintained (SPDT/DPDT), or time-delay (2-SPDT) operating versions. The keyswitch is a one-piece bracket with two-position switch holder. The RCI 960RO provides a screen-printed reset/override with directional arrows to indicate the simple function of the corresponding switch. The RCI 960 & RCI 960RO are compatible with standard mortise cylinders with straight or clover cams in 1-1/8" or 1-1/4" cylinder lengths (1-1/4" key cylinders available).

Features:

• Extruded aluminum 1/4" plate with beveled edges for tamper-resistance and durability
• Momentary (SPDT/DPDT), maintained (SPDT/DPDT) or time-delay (2-SPDT) switches available
• Hardware kit includes stainless steel tamper-proof screws and spanner bit
• Faceplate available in brushed anodized aluminum (28) or brushed anodized dark bronze (40) finish
• 3 Year Limited Warranty
• Quickly mounts to single gang box (standard) or narrow-stile door frames
• One-piece bracket with two-position switch holder
• Compatible with standard mortise cylinders with straight or clover cams in 1-1/8" or 1-1/4" cylinder lengths (1-1/4" key cylinders available)
• Also available with reset/override (RO) feature
• LED lamps and other accessories are also available
• Standard: 3"W x 4-3/4"H (76mm x 121mm)
• Narrow: 1-5/8"W x 4-3/4"H (41mm x 121mm)

Applications:

• For commercial, industrial and institutional applications in high use areas:
• Vestibules
• Storefront
• Commercial
• Industrial
• Health Care
