Rutherford Controls 960N-MA-28 SPDT Narrow Maintained Key Switch offers reliable security and ease of use for various commercial and industrial applications. Designed with tamper-resistant features, this switch is constructed from extruded aluminum with a durable 1/4" plate and beveled edges, ensuring longevity even in high-traffic areas. This key switch operates in maintained mode (SPDT), providing a straightforward solution for controlling access. Its one-piece bracket houses a two-position switch holder, allowing for quick installation on standard single gang boxes or narrow-stile door frames. The device is compatible with standard mortise cylinders with both straight and clover cams, accommodating cylinder lengths of 1-1/8" and 1-1/4". The 960N-MA-28 is available with a brushed anodized aluminum finish, enhancing its aesthetic appeal while ensuring protection against wear. A comprehensive hardware kit is included, featuring stainless steel tamper-proof screws and a spanner bit for easy setup. Additionally, the switch is backed by a 3-year limited warranty, reflecting its quality and reliability. Ideal for vestibules, storefronts, and healthcare facilities, the Rutherford Controls 960N-MA-28 provides a secure and user-friendly option for access control needs. Enhance your security setup with this robust and functional key switch.

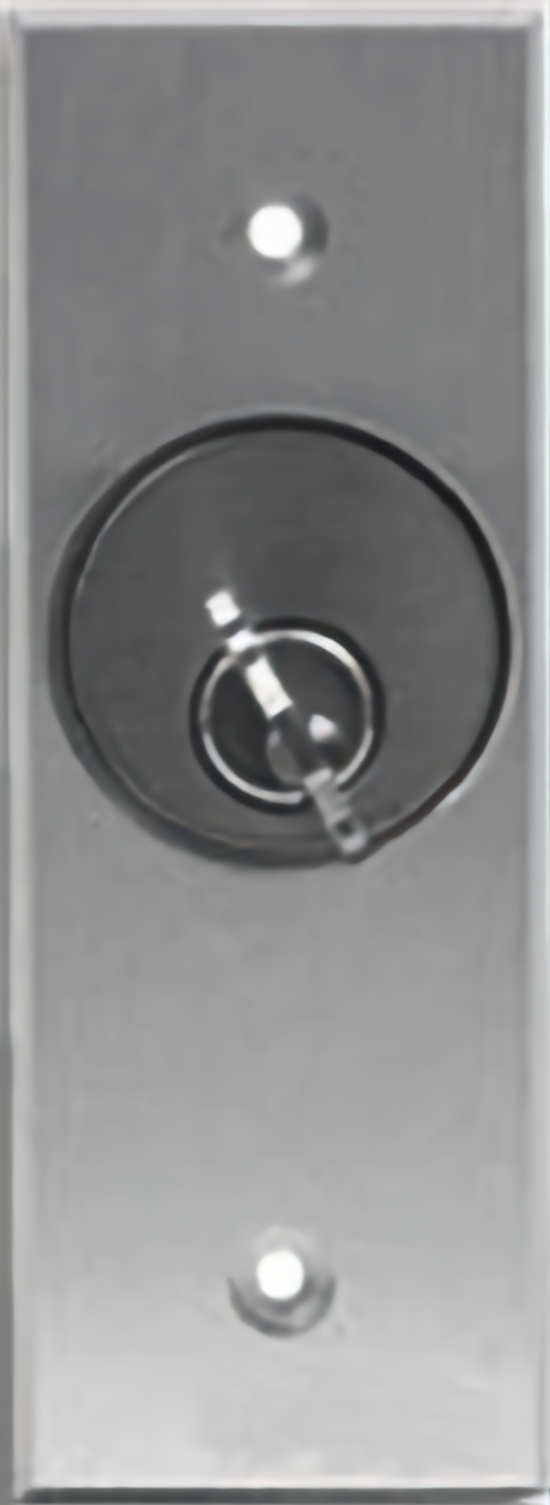

SPDT Narrow Maintained Key Switch

The 960 tamper resistant keyswitch series is available in momentary (SPDT/DPDT), maintained (SPDT/DPDT), or time-delay (2-SPDT) operating versions. The keyswitch is a one-piece bracket with two-position switch holder. The RCI 960RO provides a screen-printed reset/override with directional arrows to indicate the simple function of the corresponding switch. The RCI 960 & RCI 960RO are compatible with standard mortise cylinders with straight or clover cams in 1-1/8" or 1-1/4" cylinder lengths (1-1/4" key cylinders available).

Features:

• Extruded aluminum 1/4" plate with beveled edges for tamper-resistance and durability
• Momentary (SPDT/DPDT), maintained (SPDT/DPDT) or time-delay (2-SPDT) switches available
• Hardware kit includes stainless steel tamper-proof screws and spanner bit
• Faceplate available in brushed anodized aluminum (28) or brushed anodized dark bronze (40) finish
• 3 Year Limited Warranty
• Quickly mounts to single gang box (standard) or narrow-stile door frames
• One-piece bracket with two-position switch holder
• Compatible with standard mortise cylinders with straight or clover cams in 1-1/8" or 1-1/4" cylinder lengths (1-1/4" key cylinders available)
• Also available with reset/override (RO) feature
• LED lamps and other accessories are also available
• Standard: 3"W x 4-3/4"H (76mm x 121mm)
• Narrow: 1-5/8"W x 4-3/4"H (41mm x 121mm)

Applications:

• For commercial, industrial and institutional applications in high use areas:
• Vestibules
• Storefront
• Commercial
• Industrial
• Health Care

Resources

• Cut Sheet
