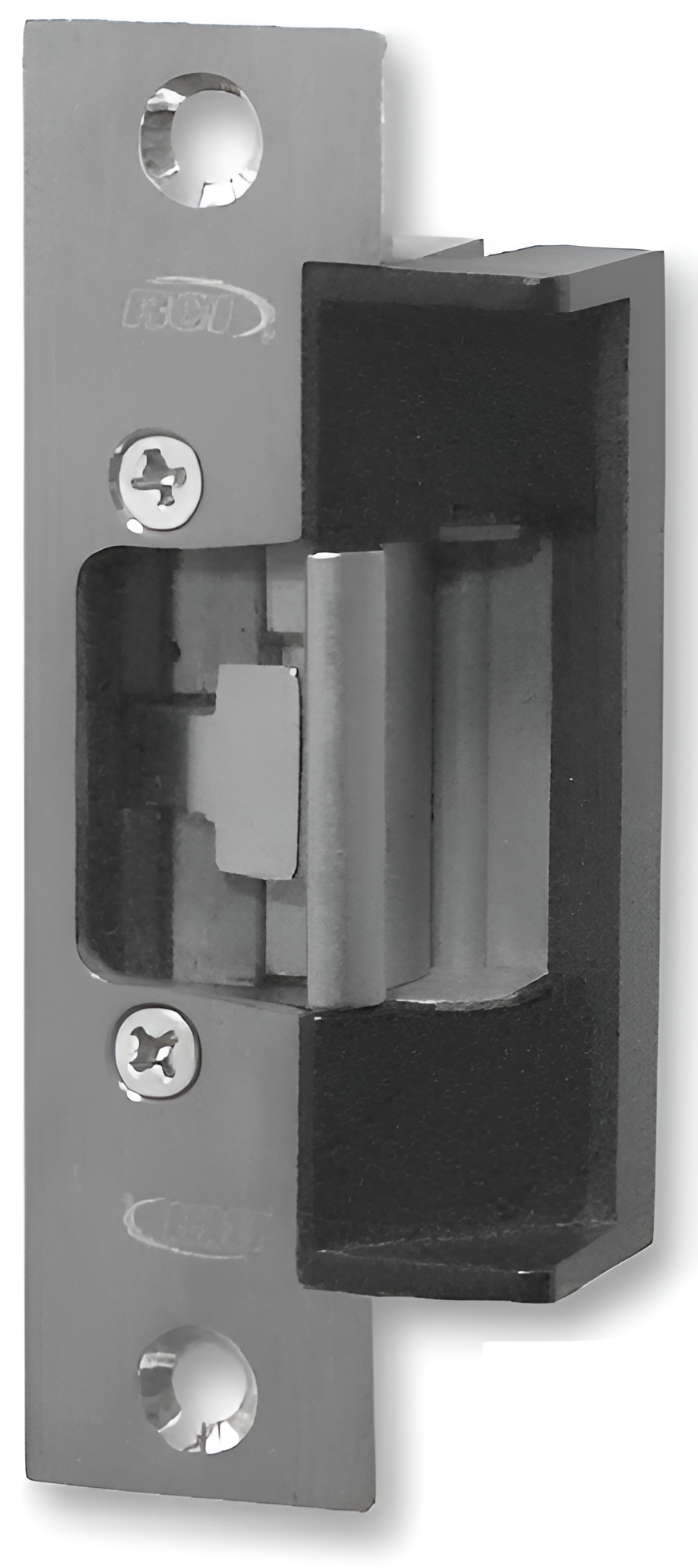

Rutherford Controls AL65 Electric Strike Low Profile Less Face Plate

Rutherford Controls AL65 Electric Strike Low Profile Less Face Plate offers a versatile solution for access control in a variety of settings. This heavy-duty electric strike is designed for both commercial and industrial applications, accommodating latch projections of 1/2" (12.7mm) or 5/8" (16mm) in its low-profile configuration. With a robust static strength of 1,500lbf and dynamic strength of 70ft-lb, it ensures reliable security, making it ideal for high-traffic areas such as educational facilities, healthcare centers, and retail outlets. The AL65 features a multi-voltage single solenoid, which can be field-selected for either 12 or 24VDC, and includes horizontal adjustment capabilities of ¼" (6.4mm) for simplified installation. Plug-in wire connectors streamline the setup process, while the included trim plate effectively covers any irregular frame cut-outs, enhancing the overall aesthetic. Its non-handed design allows for flexibility in installation, and with an endurance rating of 500,000 cycles, the AL65 is built for longevity. Additionally, it offers field-selectable fail-secure and fail-safe modes, catering to diverse security needs. Backed by a 10-year limited warranty, this strike is a reliable choice for professionals seeking durable and adaptable security solutions.

Electric Strike Low Profile Less Face Plate

The 6 series centerline strikes are available in standard profile or low-profile options to accommodate different latch projections. This heavy-duty series combines several requested key features. Standard features include a multi-voltage single solenoid, selectable lock mode (no tools necessary), horizontal adjustment, and plug-in wire connectors. ¼" horizontal adjustment makes installations faster and easier. Plus, with the RCI 6 series there will be less pressure on installer’s strike inventory, because these RCI strikes do it all.

Features:

• Standard profile accommodates 3/4" (19mm) and Low-profile accommodates 1/2" (12.7mm) or 5/8" (16mm) latch projections
• 1/4" (6.4mm) horizontal adjustment
• Plug-in wire connectors
• Trim plate included to cover up irregular frame cut-out
• Non-handed
• Energy: 375mA Field-Selectable 12/24VDC, 12-24VAC (At 12VDC)
• Strength: 1,500lbf Static 70ft-lb dynamic (grade 1, 04 & 14 faceplates only. Grade 2, 1,000lbf static for 05, 07 & 08 faceplates)
• Endurance: 500,000 Cycles (grade 1, 04 & 14 faceplates only. grade 2, 1,000lbf static for 05, 07 & 08 faceplates)
• Mode: Field-selectable fail-secure & fail-safe
• Optional latch & keeper monitor models available
• Warranty: 10-Year limited warranty

Technical Details:

• Standard Insert Depth: 1-3/16"D (30mm)
• Low Profile Insert Depth: 1-1/16" (27mm)
• Brushed stainless steel (32D)
• Factory tested to over 1-million cycles of operation

Applications:

• Commercial centers
• Industrial buildings
• Educational facilities
• Retail outlets
• Health care facilities
• Office complexes
