Rutherford Controls DE8310-28 1500lbs Maglock Delayed Egress

Rutherford Controls DE8310-28 1500lbs Maglock Delayed Egress offers a robust and efficient solution for perimeter door security. This all-in-one delayed egress lock features a built-in sensor that detects pressure applied to outward swinging doors, eliminating the need to replace existing hardware. It allows for field-selectable release delays of 15 or 30 seconds, with an optional nuisance delay of up to 3 seconds, making it adaptable for various security needs. The DE8310-28 is designed with practicality in mind, including a highly visible red/green light panel for local status indication. It comes equipped with a 960 keyswitch for reset and override, along with a building code sign, ensuring compliance and user convenience. The electromagnetic lock can be monitored both locally and remotely via relay outputs, making it ideal for applications focused on loss prevention and life safety. Constructed from durable brushed anodized aluminum, this maglock features a holding force of up to 1,200 lbs, ensuring reliability in high-traffic areas such as healthcare facilities, retail centers, airports, and museums. With easy installation thanks to keyhole mounting and plug-in wiring harnesses, the DE8310-28 is a practical choice for professionals seeking a dependable security solution.

1500lbs Maglock Delayed Egress

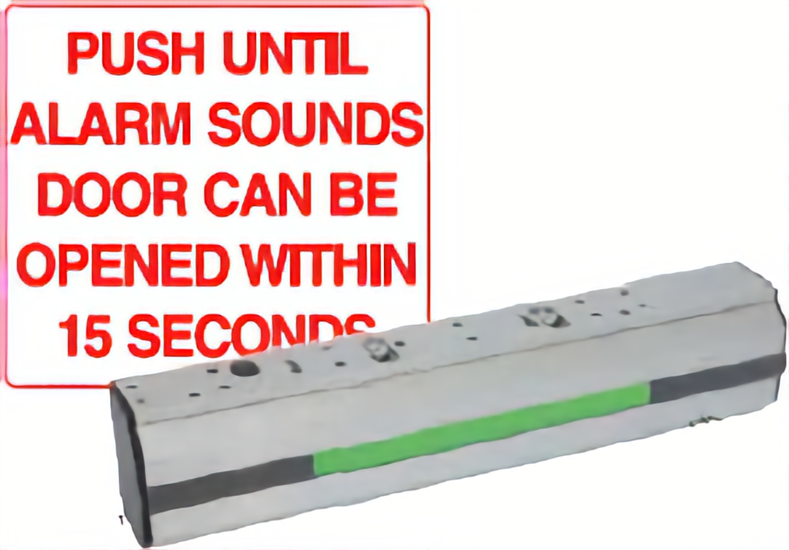

The DE8310 delayed egress all-in-one lock can detect when pressure is applied to a door and can be field selected with a release delay of 15 or 30 seconds. This perimeter door solution is unique in that there is no need to replace existing door hardware, making it an easy and affordable access solution. The RCI DE8310 includes an external alarm sounder, keyswitch for reset and override, and a building code sign for single outswinging doors. The RCI DE8310-S includes a built-in sounder rather than the external sounder in the base unit. This electromagnetic lock series can be monitored locally or remotely through relay outputs. It is ideal for applications requiring loss prevention, life safety, and traffic control.

Features:

• Built-in sensor detects when pressure is applied to outward swinging doors – no need to replace existing door hardware
• Field-selectable 15 or 30 second release delay with field-selectable 0 to 3 second nuisance delay
• Unique highly visible red/green light panel indicates status of door (local)
• Includes 960 keyswitch for reset and override, building code sign and base unit (DE8310) includes a 914 external sounder
• Dry contact SPDT and DPDT relays provided for local and/or remote monitoring
• Keyhole mounting for ease of installation
• Convenient plug-in wiring harnesses
• Easy-access wiring cavity
• Stabilizing 4-bolt "drop stop" mounting
• Surge protection
• Energy: 490mA Auto-Sensing 12-24VDC (base unit, max at 12VDC)
• Strength: Up to 1,200lbf holding force
• Warranty: 5 Year limited warranty
• Mode: Fail-Safe
• Fire-Rated: CAN/ULC S104 UL 10C 1-1/2-Hour
• Monitoring: Local & remote relay outputs & optional built-in sounder

Technical Details:

• Dimensions: 10-13/16"W x 2-7/8"H x 2-1/8"D (275mm x 73mm x 54mm) – Includes 1/4" (6mm) mounting bracket
• Provision for IBC, SBC, NFPA101, UBC, BOCA or NBC of Canada compliance
• Designed to overcome residual magnetism
• Hardened steel armature nut
• Includes self-drilling Teks fasteners
• Includes 5/8" (16mm) armature plate
• Brushed anodized aluminum (28) finish
• Ability to synchronize up to 4 doors (with or without mullion) using a converter.
• Please request further details (Custom applications that require synchronization of 3 or 4 doors will require special AHJ approval)

Applications:

• Health care facilities
• Retail & wholesale centers
• Airports
• Public transit buildings
• Museums & galleries

Resources

• Cut Sheet
