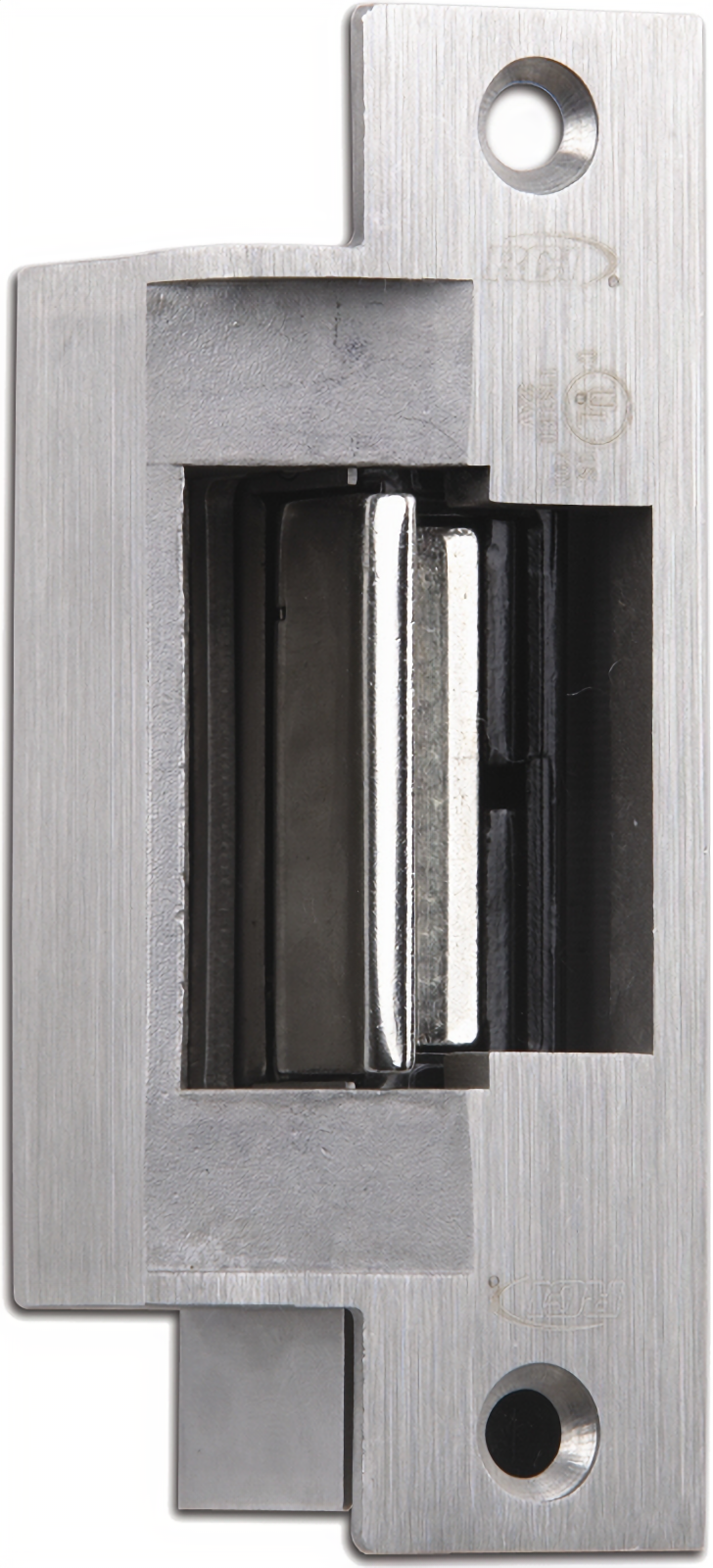

Rutherford Controls F1114-08X32D 24AC/DC FSE Fire Electric Strike

Rutherford Controls F1114-08X32D 24AC/DC FSE Fire Electric Strike combines robust security with innovative design, making it a prime choice for various applications. Crafted from high-quality brushed stainless steel, this electric strike features a sleek faceplate with square corners, specifically designed to fit hollow metal frames seamlessly. Its saddle-mounted housing enhances durability while allowing for up to 1/4" horizontal adjustment to effectively relieve side-load pressure and ensure proper latch alignment. The F1114 series is built with a unique anti-vibration feature and a tamper-resistant pry-guard, providing added security and peace of mind. With a holding force of 1,500 lbs and an impressive endurance rating of 500,000 cycles, it stands up to the demands of commercial centers, industrial buildings, educational facilities, and more. Notably, this electric strike operates in fail-secure mode and is fire-rated for up to 1-1/2 hours according to UL 10C and CAN/ULC S104 standards, ensuring compliance with safety regulations. The energy-efficient coil design operates within a range of 11-16VAC, 12VAC/VDC, or 24VAC/VDC. Mounting tabs, shims, and fasteners are included for straightforward installation, making the Rutherford Controls F1114-08X32D an excellent choice for professionals seeking reliable access control solutions.

24AC/DC FSE Fire Electric Strike

The F1 series of centerline strikes are made of stainless steel and feature a faceplate with square corners. The RCI F1114 is ideal for hollow metal frames and the RCI F1119 is best utilized with aluminum and wood frames. These centerline strikes are saddle-mounted for enhanced strength and allow up to a 1/4'" horizontal adjustment to relieve side-load pressure and ensure proper latch alignment. The RCI F1 series electric strikes are built with a unique anti-vibration feature built-in and a "pry-guard" for tamper-resistance.

Features:

• Accommodates 1/2" (12.7mm), 5/8" (16mm) or 3/4" (19mm) latch projection
• Up to 1/4" (6.4mm) horizontal adjustment, relieves side-load pressure, ensuring proper latch alignment
• Saddle-mount housing design for enhanced strength and durability
• Tamper-resistant pry-guard concealed inside the frame
• Energy efficient coil design
• Mounting tabs, shims and fasteners included
• Non-handed
• Energy: 200mA 11-16VAC, 12VAC/VDC Or 24VAC/VDC (Max at 12VDC)
• Strength: 1,500lbf Static 70ft-lb dynamic
• Endurance: 500,000 Cycles
• Mode: Fail-Secure
• Fire-Rated: CAN/ULC S104 UL 10C 1-1/2-Hour
• 5 Year limited warranty

Technical Details:

• Faceplate: 1-1/4"W x 4-7/8"H (32mm x 124mm)
• Insert Depth: 1-3/4" (45mm)
• Brushed stainless steel (32D) finish
• UL 1034 burglary-resistant listed
• UL 10C, 1-1/2 hour fire-rating listed

Applications:

• Commercial centers
• Industrial buildings
• Educational facilities
• Retail outlets
• Health care facilities
• Office complexes

Resources

• Cut Sheet
