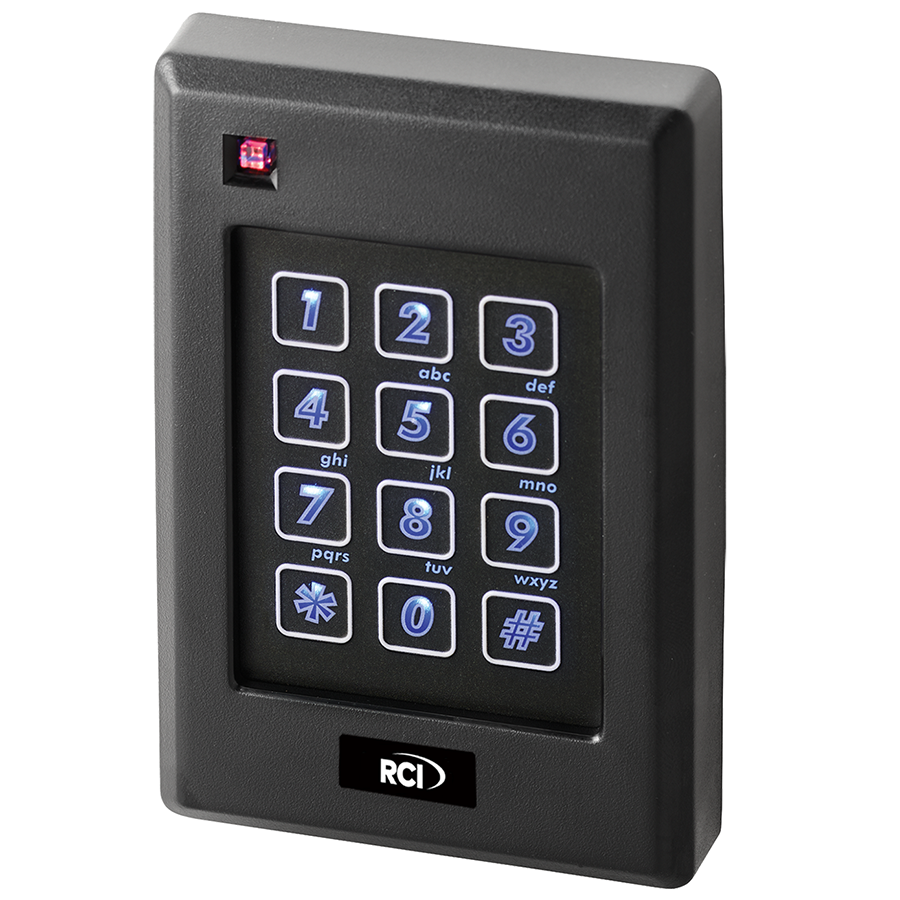

Rutherford Controls P-640-H-A 125kHz Wiegand Proximity Keypad Reader sets a high standard in electronic security, combining advanced RFID technology with user-friendly functionality. This robust keypad reader is designed for both interior and exterior applications, making it ideal for diverse environments such as retail, industrial, educational, and healthcare facilities. Measuring 3" W × 4.6" H × 0.75" D and weighing just 4 oz, the P-640-H-A is compact yet powerful, with a current draw of 70 mA typical and 110 mA peak at 12 VDC. It operates within a voltage range of +5 to 16 VDC and features a four-state LED indicator system (red, green, amber, and off) for clear visual feedback. Certified by FCC, CE, and UL, this reader ensures compliance with industry standards. The P-640-H-A is versatile, supporting multiple card technologies and interfacing seamlessly with legacy Wiegand and modern OSDP systems. With a read range of up to 5 inches and a weather rating of IP67, it provides reliable performance in various conditions. The illuminated 12-button keypad enhances usability, while its snap-on cover simplifies installation. Elevate your security with the Rutherford Controls P-640-H-A, where durability meets innovation.

125khz Wiegand Proximity Keypad Reader

RCI Pyramid P-620-H-A and P-640-H-A sets the electronic security benchmark for 125kHz proximity keypad readers. Based upon proven contactless digital radio frequency identification (RFID) technology, RCI Pyramid readers interface with a wide range of electronic access control systems by complying with either the legacy Wiegand or the latest bi-directional open supervised device protocol (OSDP). They offer value-add features such as MAXSecure, fleaPower and can support several proximity card and tag technologies.

Technical Details:

• Technology: 125 kHz standard security keypad reader
• Dimensions: 3" W × 4.6" H × 0.75" D (76 mm × 117 mm × 19 mm)
• Weight: 4 oz (113 g)
• Current draw: 70 mA typical, 110 mA peak @ 12 VDC
• Voltage: +5 to 16 VDC
• LED: Four-state standard (red, green, amber, and off)
• Certifications: FCC, ICC, CE, C-Tick, UL Standard 294, ULC 60839-11-1
• Keypad output: 8-Bit Burst; 26-bit Wiegand standard
• Applications: These readers are suitable for interior or exterior doors and entrance systems in virtually all applications Retail and Commercial; Industrial; Education, Healthcare facilities and more.

Features

• Weight: 4 oz (113 g)
• LED: Four-state standard (red, green, amber, and off)
• Certifications: FCC, ICC, CE, C-Tick, UL Standard 294, ULC 60839-11-1
• Voltage: +5 to 16 VDC
• Technology: 125 kHz standard security keypad reader
• Applications: These readers are suitable for interior or exterior doors and entrance systems in virtually all applications Retail and Commercial; Industrial; Education, Healthcare facilities and more.
• Current draw: 70 mA typical, 110 mA peak @ 12 VDC
• Dimensions: 3" W × 4.6" H × 0.75" D (76 mm × 117 mm × 19 mm)
• Keypad output: 8-Bit Burst; 26-bit Wiegand standard
