Rutherford Controls PDM-8C-ISO +Power Distribution Module 8-Out PTC

Rutherford Controls PDM-8C-ISO Power Distribution Module offers an efficient solution for managing multiple low voltage DC outputs. Designed to distribute a single input into eight separately protected outputs, this module is ideal for those looking to streamline their power supply systems. Each output features a separate green power indicator LED, allowing for quick visual checks during servicing. The PDM-8C-ISO is equipped with PTC circuit breakers, providing enhanced protection against short circuits, while the integrated surge protector absorbs spikes of up to 1500 watts, safeguarding connected devices from potential damage. This module is particularly beneficial for installations involving electromagnetic locks, electric strikes, DC cameras, and access control systems. For added flexibility, the PDM-8C can be customized with various options, including fire panel control interfaces to manage DC output based on fire alarm signals. The efficiency of this board can significantly reduce servicing time, as any issues are easily identified through the LED indicators. Whether you're a building professional or a knowledgeable homeowner, the Rutherford Controls PDM-8C-ISO Power Distribution Module is an essential component for reliable, secure access control and power management in any setting.

+Power Distribution Module 8-Out PTC

The 10 series power supplies distribute a single low voltage DC output. The PDM-4, *PDM-4C, PDM-8 and *PDM-8C boards are available separately and can be used to customize your power supply after installation.

* Items have been discontinued

Features:

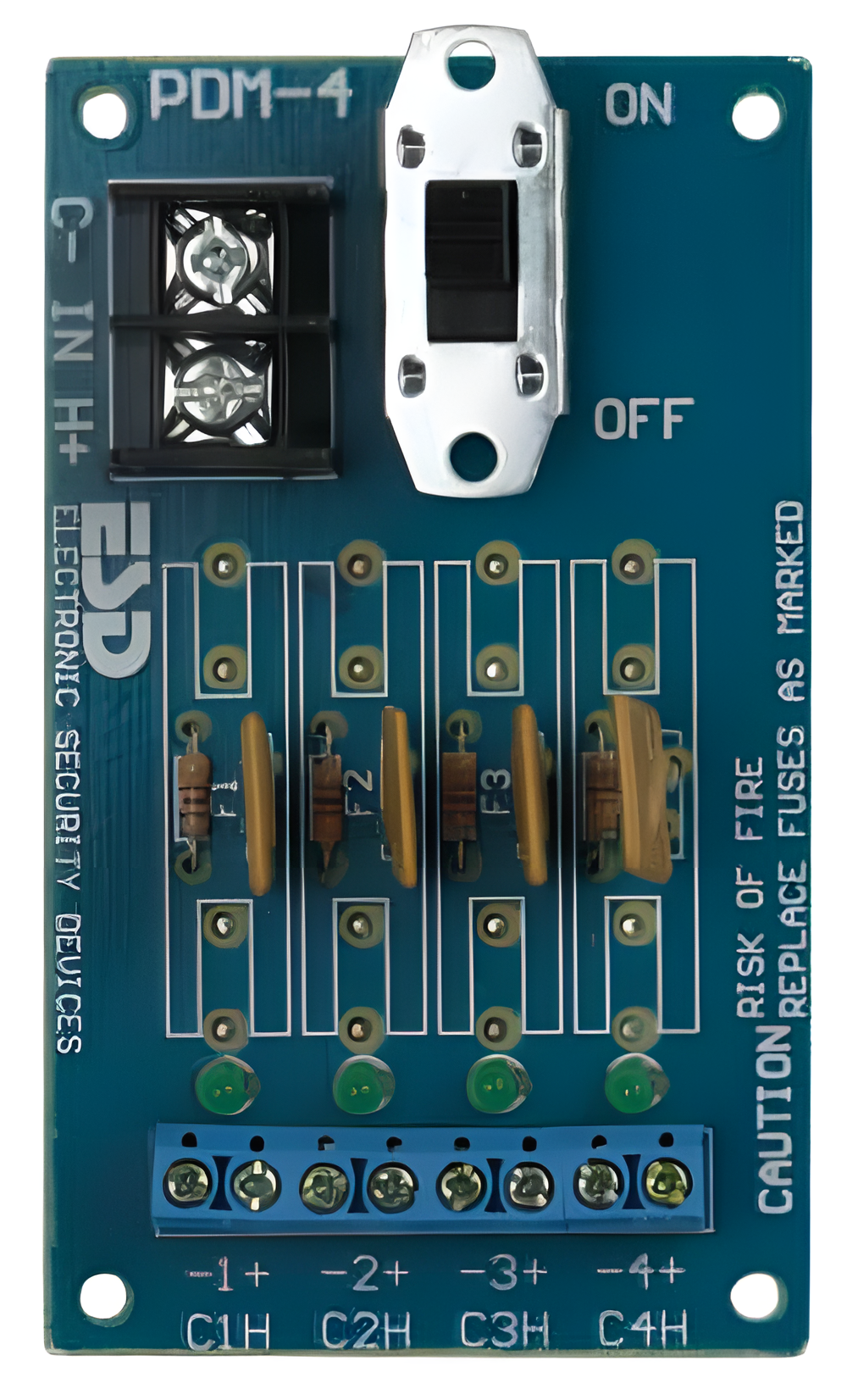

• Power switch to shut off all devices for servicing on PDM-4 and PDM-4C only
• Converts a single input to 4 separately protected outputs
• Available with fuses (PDM-4) or PTC circuit breakers (PDM-4C)
• Separate green power indicator LED for each output

Power Supply Options:

• PDD-FT: board is a fire panel control interface. This board can be used to control DC output based on a fire alarm control panel. Two outputs switch state on alarm.
• PDD-8PCI: board is a power distribution/control interface. The board can be used to convert a DC power source to 8 Class II power limited outputs that can be controlled by a fire alarm control panel. This board allows the installed to power electromagnetic locks, electric strikes, DC Camera and access control with the same power supply.
• PDM-4, *PDM-4C, PDM-8 and *PDM-8C: boards distribute a single low voltage AC or DC source into 4 or 8 outputs. The output voltage and total current available is determined by the input supply. When installed into a power supply, servicing time can be greatly reduced by the output indicator LED's. If an output fuse is blown or PTC is tripped the accompanying LED will be off, simply identifying the device connected to this output will allow for a problem to be quickly corrected. In addition to short circuit protection, the input terminals also have a surge protector that can absorb a 1500 Watt spike or surge to protect connected devices.

Ordering Information:

Resources

• Cut Sheet
