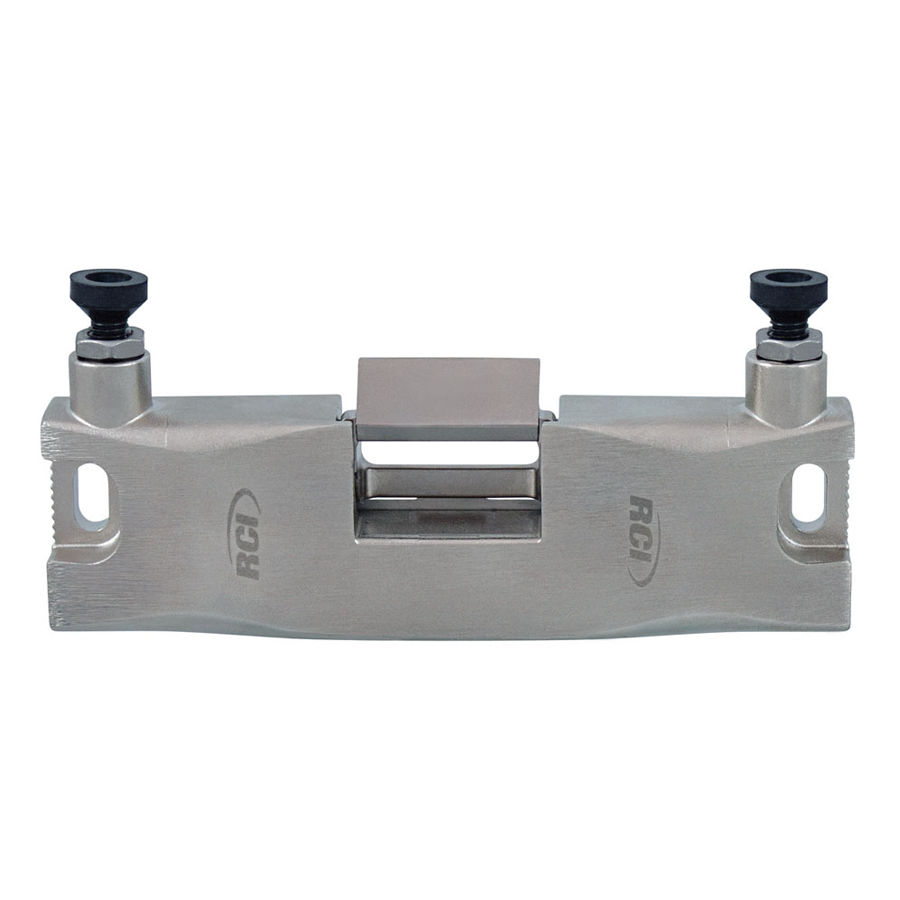

Rutherford Controls VR165-32D Electric Strike for Vertical Rod Exit Device, Single-Door, Stainless Steel

Rutherford Controls VR165-32D Electric Strike is expertly designed to work seamlessly with vertical rod exit devices featuring a roller latch. This heavy-duty, surface-mounted strike accommodates a 5/8" roller latch and is crafted from high-grade stainless steel, ensuring exceptional keeper strength and durability. The conventional keeper design, consisting of just one moving part, promotes even load distribution, enhancing its reliability for various applications. With an impressive static holding force of 1,500 lbs and a dynamic strength of 70 lbs, the VR165-32D is built to withstand rigorous use, boasting an endurance rating of 250,000 cycles. Its fail-secure mode ensures that the door remains locked under power loss, providing peace of mind in security-sensitive environments. Installation is straightforward, thanks to adjustable components that compensate for door and frame misalignments up to 1/4" and a door stop adjustment for varying rail thicknesses. The horizontal solenoid design prevents manipulation from vibrations, while lockdown tabs and tamper-resistant hex socket head cap screws enhance security. This versatile electric strike is ideal for commercial centers, industrial buildings, educational facilities, retail outlets, healthcare facilities, and office complexes. Finished in brushed stainless steel (32D), the VR165-32D combines functionality with a sleek aesthetic, making it a reliable choice for any security setup.

Electric Strike for Vertical Rod Exit Device with Roller Latch, Single-Door Applications, 630/US32D Stainless Steel

The VR165 vertical rod strike is designed for use with vertical rod exit devices with roller latch. This surface mounted strike accommodates 5/8" roller latch. The heavy-duty RCI VR165 is made of high grade stainless steel offering superior keeper strength. The conventional keeper design (one moving part) promotes even load distribution. To prevent vibration manipulation the RCI VR165 has a horizontal solenoid. Lockdown tabs provide a secure mount with Hex socket head cap screws for added support and tamper resistance.

Features:

• Accommodates 5/8" (16mm) roller latch
• Heavy-duty, surface mounted strike
• High grade stainless steel ensures superior keeper strength
• Ensure proper latch alignment – up to 1/4" (6.4mm) adjustment to compensate for door and frame misalignments
• Door stop adjustment for different rail thicknesses
• Horizontal solenoid prevents manipulation from vibration
• Conventional keeper design (one moving part) - promotes even load distribution
• Lockdown tabs for secure mount
• Non-handed
• Hex socket head cap screws for added support and tamper-resistance
• Plug-in wire connector
• Installation tool included (hex key)
• Energy: 450mA Field-selectable 12/24VDC & 12-24VAC (Max at 12VDC)
• Strength: 1,500lbf Static 70 dynamic ft-lb
• Endurance: 250,000 Cycles
• Mode: Fail-Secure
• 5 Year limited warranty
• Brushed stainless steel (32D) finish

Applications:

• Commercial centers
• Industrial buildings
• Educational facilities
• Retail outlets
• Health care facilities
• Office complexes
