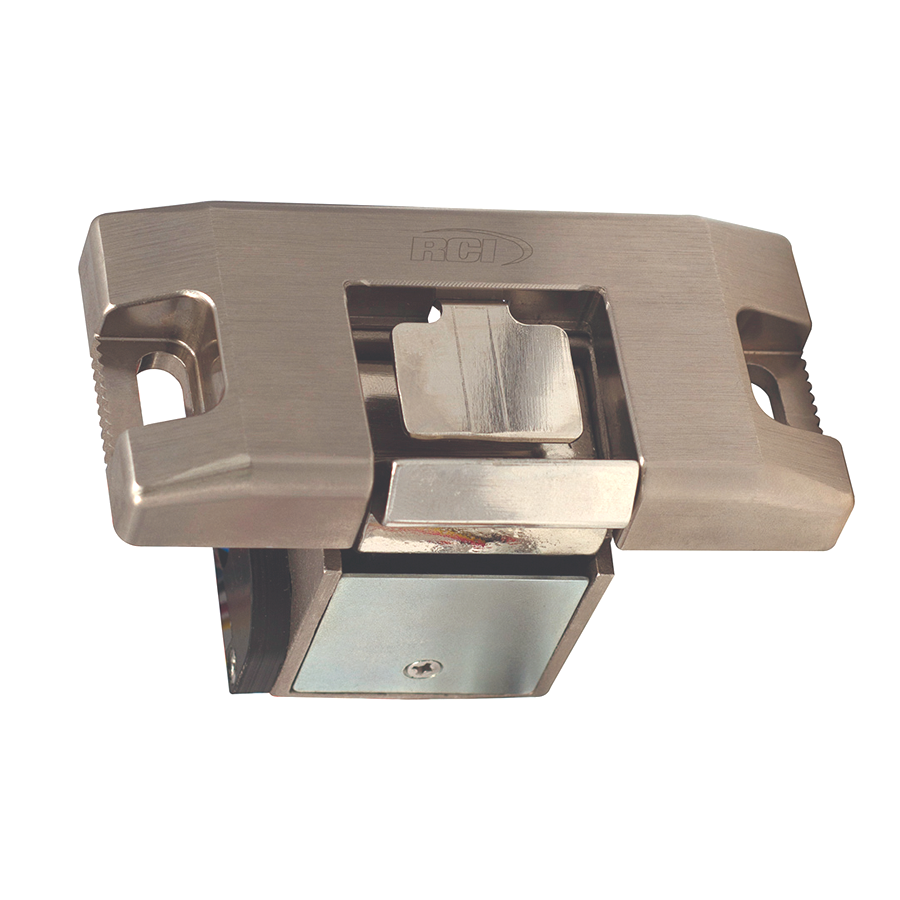

Rutherford Controls VR166-32D Electric Strike for SVR Vertical Rod Exit Device, 12/24VDC, Fail Secure, Stainless Steel

Rutherford Controls VR166-32D Electric Strike for SVR Surface Vertical Rod Exit Device is engineered for versatility and security in single or double-door applications. With a compact design that requires only a 63 mm x 33 mm cut-out in the frame, this electric strike boasts a total footprint of 104 mm x 50 mm x 16 mm, making it an excellent choice for spaces where size matters. The VR166-32D features horizontal adjustability of 8 mm, accommodating various frame and door configurations with ease. It operates on a solenoid activation mechanism and is designed to work with a minimum 52 mm (2 1/16") backset of the top latch. This unit is field-selectable for 12/24VDC and 12-24VAC, drawing a maximum of 210mA at 12VDC. Fail-Secure mode ensures that the door remains locked until the electric strike is activated, providing a reliable security solution. Its robust construction offers a static strength of 1,500 lbf and dynamic strength of 70 ft-lb, withstanding up to 250,000 cycles for long-lasting durability. The satin stainless steel finish (32D) enhances its aesthetic appeal while maintaining high performance. Optional monitoring for the latch and keeper is available, further enhancing its functionality. Enjoy peace of mind with the VR166-32D, backed by a 5-year limited warranty.

Electric Strike for SVR Surface Vertical Rod Exit Device with Pullman Top Latch, 12/24VDC - 12-24VAC Field Selectable, FSE Fail Secure, Single or Double-Door Applications, Small Footprint, 630/US32D Stainless Steel

The RCI VR166 is a small footprint vertical rod strike to be used in single or double-door applications.

Features:

• This simple design requires a 63 mm x 33 mm cut-out in the frame
• Total footprint of the strike does not exceed 104 mm x 50 mm x 16 mm
• Horizontal adjustability of 8 mm for frame and door variations
• Solenoid activated
• Designed and suited to a minimum 52 mm (2 1/16") backset of the top latch
• Energy: 210mA (Max at 12VDC) Field-Selectable, 12/24VDC, 12-24VAC
• Mode: Fail-Secure
• Strength: 1,500lbf Static, 70ft-lb dynamic
• Endurance: 250,000 Cycles
• Warranty: 5 Year limited
• Monitoring: Optional latch and keeper monitor model available
