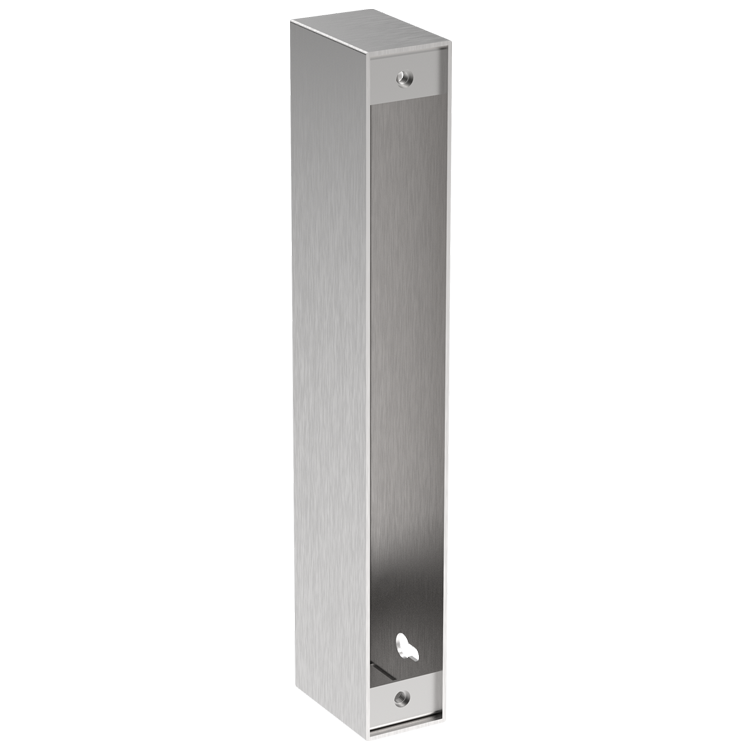

Rutherford Controls YD30D234 Housing Box with Tape for YD30D Double Swing Doors 12-3/16in Long x 3-1/3in Deep

Rutherford Controls YD30D234 Housing Box with Tape is designed specifically for the YD30D double swing doors, measuring 12-3/16 inches long and 3-1/3 inches deep. This robust housing box supports the YD30 series electronic locks, which are motor-driven and capable of securing both commercial and residential single and double-acting doors. With a remarkable holding force of 2204 lbs (1000 kg) and the ability to release under a sideload of 1322 lbs (600 kg), this housing box ensures reliable performance even in high-traffic environments. The YD30 series allows users to control access seamlessly, providing options for fail-safe or fail-secure configurations based on specific security needs. Automatic deadbolting enhances security, while the 10mm thick stainless steel bolt pins provide added strength and durability. Furthermore, the housing box is equipped to correct door misalignment of up to 16mm (+/-8 mm), ensuring proper door function. Designed for versatility, the YD30D234 Housing Box is compatible with various installation methods and is suitable for use on fire-resistant doors, certified for up to three hours. With a warranty of three years and an endurance rating of one million operations, this product delivers peace of mind and long-lasting reliability for any security setup.

Housing Box with Tape for YD30D Double Swing Doors 12-3/16in Long x 3-1/3in Deep

The YD30 series electronic locks are motor driven electronic locks designed to secure commercial and residential single and double acting doors. The YD30 series gives the user the ability to control access in and around a facility and provide traffic reports when desired. Additionally, the YD30 series can be used in a more straightforward system where controlling access to a single door can be implemented with a stand-alone RTE access system. A high traffic, low voltage, motor-driven door lock. YG30 series are typically activated by access control systems and used in commercial entrance doors in either mortise or surface installation as well as swing-through glass doors where security is paramount, convenience required, and appearances important.

Features:

• Correcting door misalignment of up to 16mm (+/-8 mm)
• Door will still release with excess of 1322 lbs (600kg) applied force
• Automatic deadbolting
• 2204 lbs (1,000 Kg) holding force
• 10mm thick stainless steel bolt pins
• User selectable fail safe and fail secure
• Assist with door alignment
• Automatic deadbolting providing high security
• Easily converts from fail safe to fail secure
• Versatile installation

Technical Details:

• YD30D: 10" x 1-1/4" x 1-7/8" (255 x 30 x 47mm)
• Energy: 12-24 VDC 40mA@12VDC, 25mA@24VDC; Peak: 0.75A@12VDC, 0.4A@24VDC
• Strength 2204lbs (1000kg) holding force; 1322lbs (600kg) sideload
• Warranty: 3 years
• Endurance: 1 million operations
• Mode: Fail Safe/Fail Secure selectable
• Monitoring: Door and bolt positions
• Certifications: CE, RoHS 2, FCC Part 15 / IC RCM, UL Listed EN 14846:2008 Certified Suitable for use on fire resistant doors (UL 10C; 3 hrs)
• UL10C For use in vertical orientation with any UL swinging type fire door frame rated up to and including 3 hours
