Rutherford Controls YD30D236 Dress Plate with Tape for YD30D enhances the functionality and aesthetic appeal of the YD30 series electronic locks. Designed for both commercial and residential applications, this dress plate is an essential component for maintaining the integrity and performance of your locking system. The YD30 series locks are motor-driven and offer robust features such as automatic deadbolting and a holding force of 2204 lbs (1000 kg), ensuring high levels of security. With the ability to accommodate door misalignments of up to 16mm (+/-8 mm), this dress plate helps maintain reliable operation even under challenging conditions. The YD30D236 is designed to release under excess force of 1322 lbs (600 kg), making it suitable for high-traffic areas where safety and convenience are paramount. This plate also supports user-selectable fail-safe and fail-secure modes, allowing for versatile installation options. Constructed with durability in mind, it features 10mm thick stainless steel bolt pins and is certified for use on fire-resistant doors, adhering to UL standards. Backed by a three-year warranty and engineered for a million operations, the Rutherford Controls YD30D236 Dress Plate ensures long-lasting performance and peace of mind.

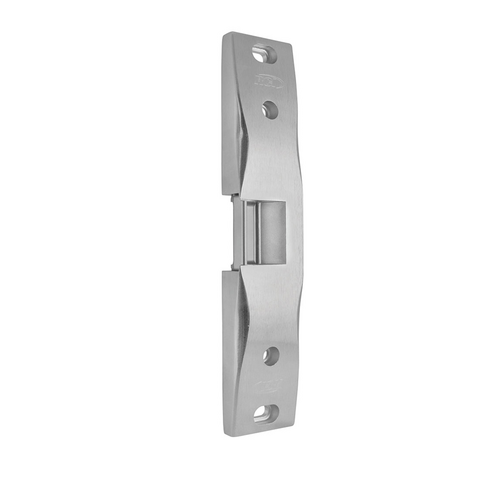

Dress Plate with Tape for YD30D

The YD30 series electronic locks are motor driven electronic locks designed to secure commercial and residential single and double acting doors. The YD30 series gives the user the ability to control access in and around a facility and provide traffic reports when desired. Additionally, the YD30 series can be used in a more straightforward system where controlling access to a single door can be implemented with a stand-alone RTE access system. A high traffic, low voltage, motor-driven door lock. YG30 series are typically activated by access control systems and used in commercial entrance doors in either mortise or surface installation as well as swing-through glass doors where security is paramount, convenience required, and appearances important.

Features:

• Correcting door misalignment of up to 16mm (+/-8 mm)
• Door will still release with excess of 1322 lbs (600kg) applied force
• Automatic deadbolting
• 2204 lbs (1,000 Kg) holding force
• 10mm thick stainless steel bolt pins
• User selectable fail safe and fail secure
• Assist with door alignment
• Automatic deadbolting providing high security
• Easily converts from fail safe to fail secure
• Versatile installation

Technical Details:

• YD30D: 10" x 1-1/4" x 1-7/8" (255 x 30 x 47mm)
• Energy: 12-24 VDC 40mA@12VDC, 25mA@24VDC; Peak: 0.75A@12VDC, 0.4A@24VDC
• Strength 2204lbs (1000kg) holding force; 1322lbs (600kg) sideload
• Warranty: 3 years
• Endurance: 1 million operations
• Mode: Fail Safe/Fail Secure selectable
• Monitoring: Door and bolt positions
• Certifications: CE, RoHS 2, FCC Part 15 / IC RCM, UL Listed EN 14846:2008 Certified Suitable for use on fire resistant doors (UL 10C; 3 hrs)
• UL10C For use in vertical orientation with any UL swinging type fire door frame rated up to and including 3 hours
