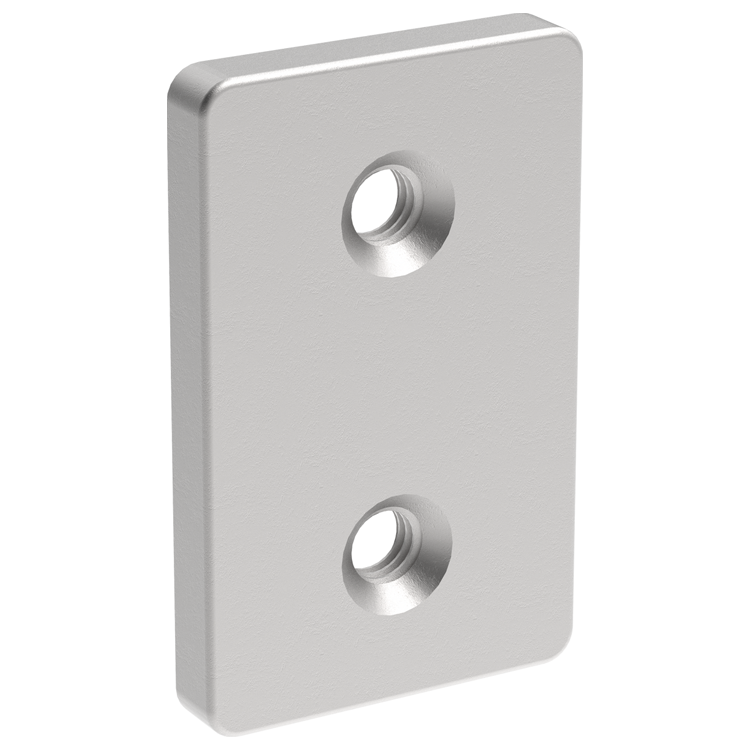

Rutherford Controls YD30SD208 Fitting Tab Kit (YD30D/YD30S)

Rutherford Controls YD30SD208 Fitting Tab Kit (YD30D/YD30S) offers a robust solution for enhancing the security of commercial and residential doors. Designed specifically for the YD30 series electronic locks, this kit ensures seamless installation and optimal performance for both single and double-acting doors. With a generous holding force of 2204 lbs (1000 kg) and the ability to withstand sideloads of up to 1322 lbs (600 kg), this fitting tab kit guarantees reliability in high-traffic environments. The automatic deadbolting feature adds an extra layer of security, while user-selectable fail-safe and fail-secure modes provide flexibility to meet various security needs. The YD30SD208 is not just about strength; it also addresses practical concerns such as door misalignment, correcting discrepancies of up to 16 mm (+/- 8 mm). Installation is straightforward, compatible with mortise or surface applications, and perfect for swing-through glass doors, ensuring that aesthetics are maintained without compromising on security. This kit is built to last, boasting an endurance rating of 1 million operations and certified for use on fire-resistant doors (UL 10C; 3 hrs). With a 3-year warranty and compliance with multiple safety standards, the Rutherford Controls YD30SD208 Fitting Tab Kit is a reliable choice for any security application.

Fitting Tab Kit (YD30D/YD30S)

The YD30 series electronic locks are motor driven electronic locks designed to secure commercial and residential single and double acting doors. The YD30 series gives the user the ability to control access in and around a facility and provide traffic reports when desired. Additionally, the YD30 series can be used in a more straightforward system where controlling access to a single door can be implemented with a stand-alone RTE access system. A high traffic, low voltage, motor-driven door lock. YG30 series are typically activated by access control systems and used in commercial entrance doors in either mortise or surface installation as well as swing-through glass doors where security is paramount, convenience required, and appearances important.

Features:

• Correcting door misalignment of up to 16mm (+/-8 mm)
• Door will still release with excess of 1322 lbs (600kg) applied force
• Automatic deadbolting
• 2204 lbs (1,000 Kg) holding force
• 10mm thick stainless steel bolt pins
• User selectable fail safe and fail secure
• Assist with door alignment
• Automatic deadbolting providing high security
• Easily converts from fail safe to fail secure
• Versatile installation

Technical Details:

• YD30S: 6-1/4" x 1-1/4" x 1-7/8" (160 x 30 x 47mm)
• Energy: 12-24 VDC 40mA@12VDC, 25mA@24VDC; Peak: 0.75A@12VDC, 0.4A@24VDC
• Strength 2204lbs (1000kg) holding force; 1322lbs (600kg) sideload
• Warranty: 3 years
• Endurance: 1 million operations
• Mode: Fail Safe/Fail Secure selectable
• Monitoring: Door and bolt positions
• Certifications: CE, RoHS 2, FCC Part 15 / IC RCM, UL Listed EN 14846:2008 Certified Suitable for use on fire resistant doors (UL 10C; 3 hrs)
• UL10C For use in vertical orientation with any UL swinging type fire door frame rated up to and including 3 hours
