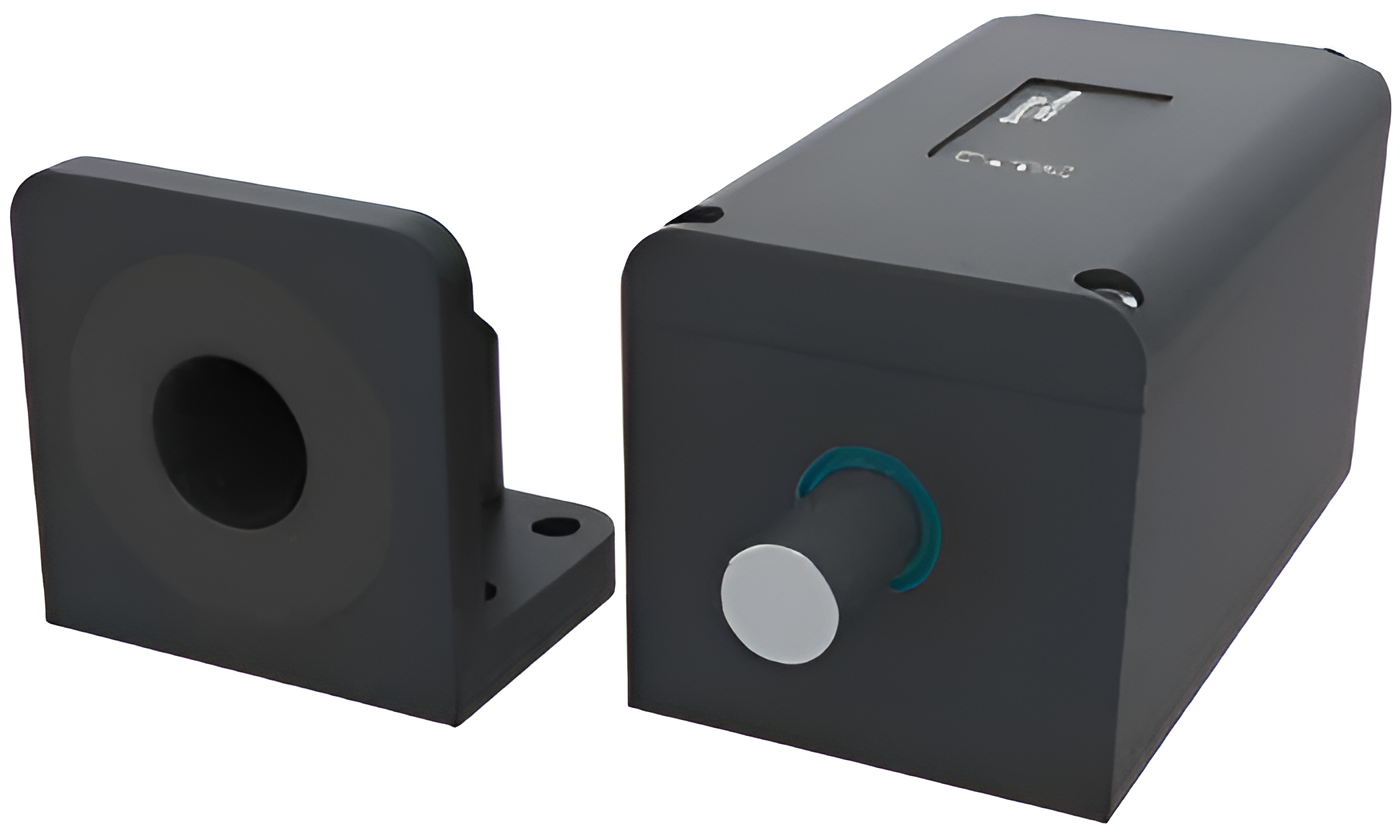

Rutherford Controls YG80 Electric Deadbolt 12/24VDC Selectable Fail Safe/Fail Secure Modes

Rutherford Controls YG80 Electric Deadbolt offers a robust locking solution designed for securing gates, roll-up doors, shipping containers, and other large entryways. This high-strength deadbolt features selectable fail safe and fail secure modes, making it adaptable to various security needs. Its advanced design integrates seamlessly into access control systems, providing complete monitoring capabilities, including output signals to indicate bolt position and door status. Constructed from aluminum for enhanced corrosion resistance, the YG80 is completely weatherproof, boasting an IP67 ingress protection rating. A built-in heater ensures reliable operation in colder climates, while concealed mounting bolts trigger a tamper detection monitor if removed. The symmetrical design allows for versatile installation both horizontally and vertically, indoors and outdoors. With a holding force of 11,240 lbs and dynamic strength of 148 ft-lbs, this deadbolt is built for endurance, rated for 300,000 cycles. The lock operates at 12-24VDC, drawing minimal current-only 50 mA in standby mode. A three-meter flying cable is included for easy connectivity. Whether you need a solution for high-traffic areas or remote locations, the Rutherford Controls YG80 Electric Deadbolt delivers the security and reliability you can trust.

Electric Deadbolt 12/24VDC Selectable Fail Safe/Fail Secure Modes

High-strength lock designed for securing gates, roll-up doors, shipping containers, and other large doors or entryways. Offers the ability to integrate into an access control system. Fully monitored, weatherproof, and user configurable, perfect indoor and outdoor locking solution.

Features:

• Concealed mounting bolts under the lock’s cover, which cannot be removed without triggering the tamper detection monitor
• Completely weatherproof
• Ingress protection to IP67
• Aluminum lock body for excellent corrosion resistance.
• Built-in heater for continued functionality in colder climates, the YG80 can handle any environment it is placed in
• Complete monitoring capabilities
• Provides a range of output signals - bolt locked and unlocked position, door position, and tamper detection
• Integrated access control system capabilities
• Selectable fail safe/fail secure modes, three user selectable control methods, and multiple attempts to lock or unlock, ensures that the YG80 is ready for a wide range of application requirements
• A symmetrical design means the YG80 can be installed both horizontally and vertically, in indoor and outdoor environments
• The included three meter flying cable ensures easy connection for all the monitoring, control and the 12-24VDC power supply
• Low current consumption
• With the heater disabled, the YG80 will draw as little as 50 mA in standby, and only 1,000 mA in operation at 12VDC. (Heater @24VDC only)
• 18 mm diameter stainless steel bolt pin and reinforced strike design
• Holding force of 11,240 lbs

Technical Details:

• Door gap: 15 mm maximum
• Static strength: 11,240 lbs.
• Dynamic strength: 148 ft-lbs.
• Endurance: 300,000 Cycles
• Voltage at lock: 12-24VDC +/- 15%
• Auto relock: Will attempt to lock or unlock 3 times if obstructed during operation
• Initial power up time: 25 seconds, only after power has been removed for an extended period.
• Standby Current: 50mA@12V; 40mA@24V;
• 1.6A@24V with heater on
• Maximum Current: 1.0A@12V; 0.5A @24V;
• 2.0A@24V with heater on.
• Dry Heat, +70°C for 2 Hours EN 60068-2-2:2007
• Corrosion, 240 hours salt spray EN 1670:2007, grade 4
