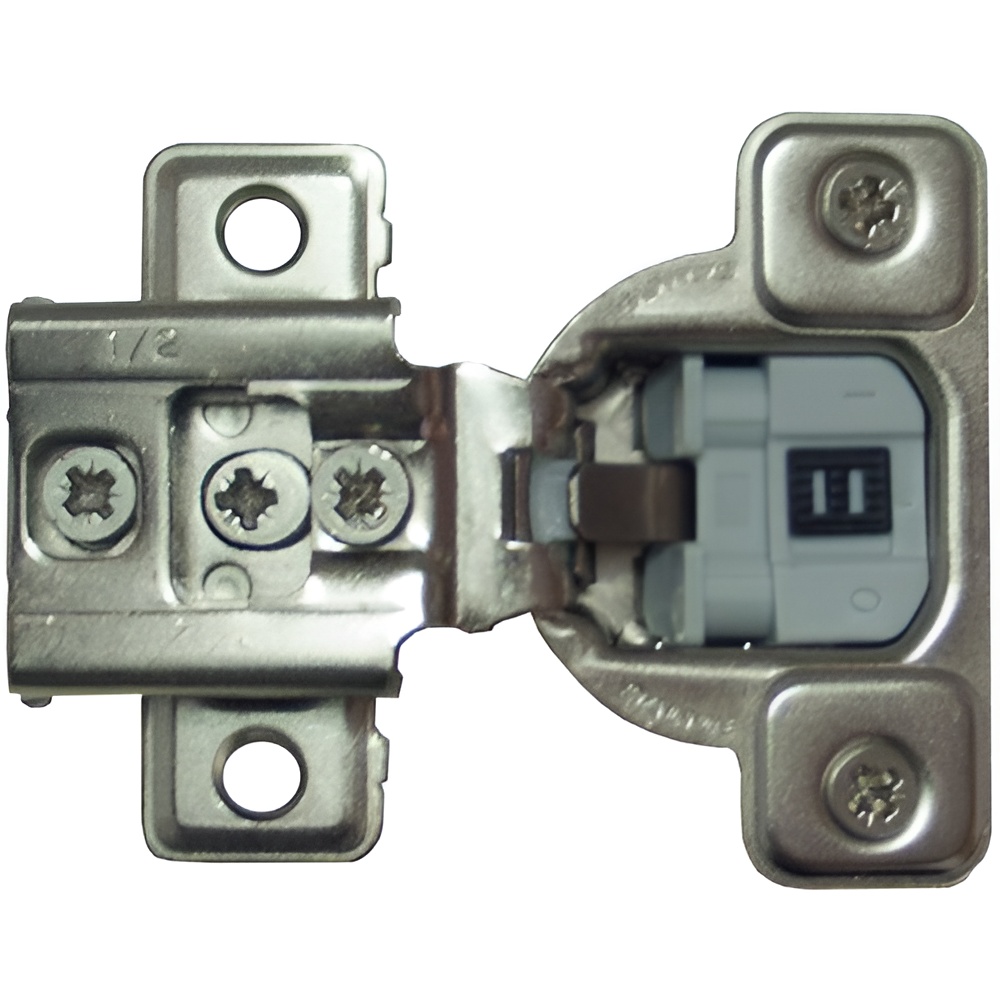

Salice CUP37D9R 106FF 1/2" OL SoftClose 3-Cam Screw-On Hardware

SALICE CUP37D9R 106FF 1/2" OL 3-Cam SoftClose Screw-On hinge combines advanced engineering with practical functionality for a seamless cabinet experience. Designed for face frame applications, this hinge features an 11mm cup depth, making it ideal for accommodating deep edge profiles. Its increased side adjustment range of -2mm to +3mm ensures precision installation, allowing you to fine-tune the overlay with ease. With an edge bore distance of 2.5mm, the CUP37D9R is perfect for profile edge doors, providing an optimal fit and a 4.6mm gap between the door and frame. The hinge opens to a generous 106°, offering wide access for convenient use. It supports a minimum door thickness of 9/16" and a maximum of 7/8", ensuring compatibility with a variety of cabinet designs. This screw-on hinge not only enhances the aesthetic appeal of your cabinetry but also features a soft-close mechanism, contributing to a quiet and gentle closure. Weighing just 0.15 lbs, it is lightweight yet durable, making it an excellent choice for both building professionals and discerning homeowners. Elevate your cabinetry with SALICE’s precision-engineered hinge, designed to deliver reliability and elegance in every application.

106FF 1/2" OL 3-Cam SoftClose Screw-On

• Edge bore distance of 2.5mm to accommodate profile edge doors and allowing overlay fine tuning
• Maximum door thickness 7/8"
• Increased range of side adjustment (-2mm
• 4.6mm gap between door and frame
• 106° opening
• +3mm)
• Minimum door thickness 9/16"
• Features an 11mm cup depth to accommodate deep edge profiles
