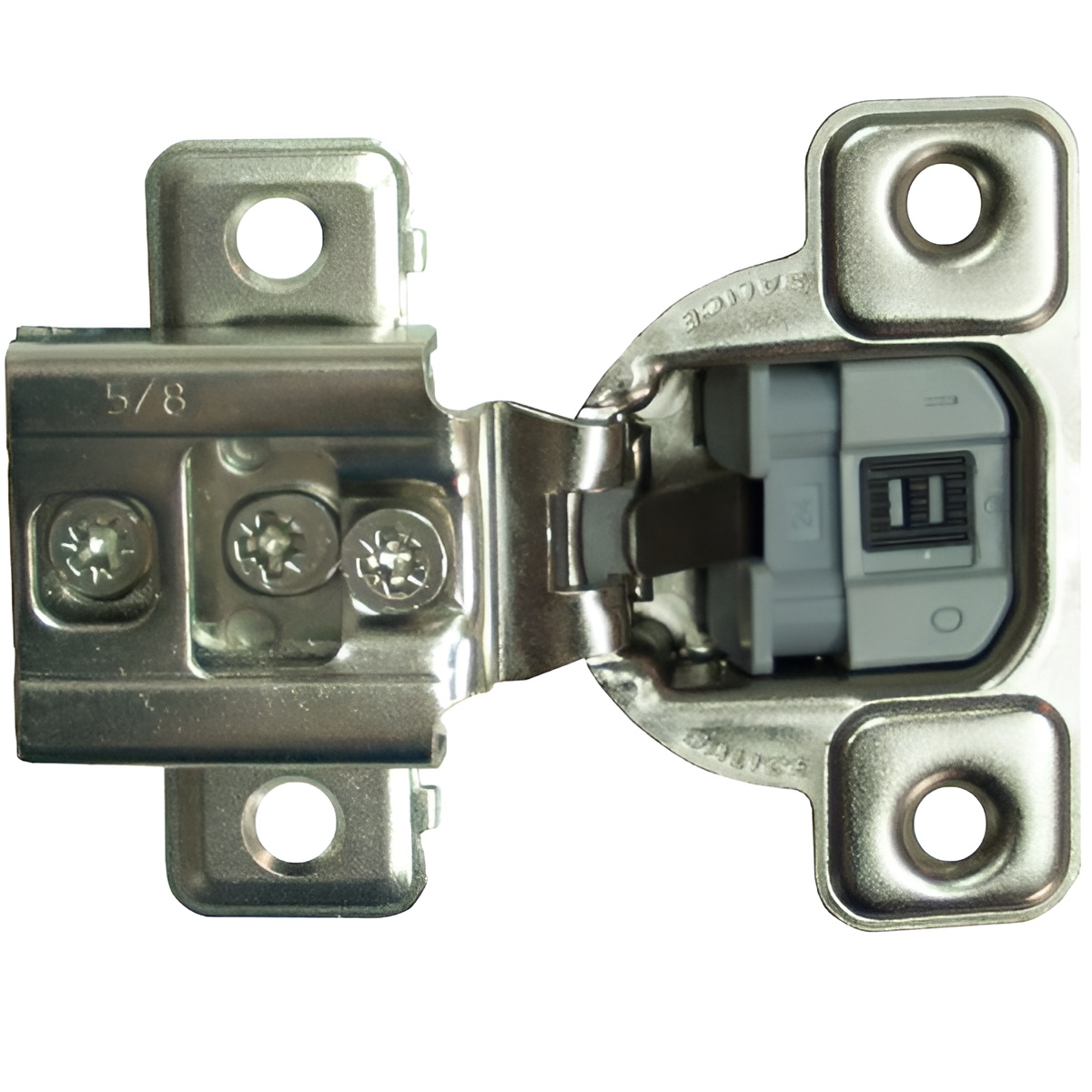

Salice CUR35D9R 106FF 5/8" OL 3-Cam Soft Close Dowel

SALICE CUR35D9R 106FF 5/8 OL 3-Cam Soft Close Dowel offers a seamless solution for cabinet door installation. Designed for face frame applications, this innovative hinge features a press-in mechanism that simplifies installation while providing reliable performance. With an 11mm cup depth, it accommodates deep edge profiles, making it ideal for a variety of door styles. The CUR35D9R hinge boasts an impressive side adjustment range, allowing for adjustments from -2mm to +3mm, which ensures a perfect fit. The edge bore distance of 2.5mm is specifically designed to cater to profile edge doors, enabling fine-tuning of the overlay. A 4.6mm gap between the door and frame further enhances the installation process, promoting a clean and professional look. This hinge supports a door thickness ranging from a minimum of 9/16" to a maximum of 7/8", making it versatile for various cabinetry projects. With a generous 106° opening, it provides ample access for easy use and functionality. Weighing only 0.15 lbs, the SALICE CUR35D9R is lightweight yet durable, ensuring long-lasting performance in any setting. Upgrade your cabinetry with this exceptional soft-close hinge for both aesthetic appeal and practical efficiency.

106FF 5/8 OL 3-Cam Soft Close Dowel

• Edge bore distance of 2.5mm to accommodate profile edge doors and allowing overlay fine tuning
• Maximum door thickness 7/8"
• Increased range of side adjustment (-2mm
• 4.6mm gap between door and frame
• 106° opening
• +3mm)
• Minimum door thickness 9/16"
• Features an 11mm cup depth to accommodate deep edge profiles
