Salice CUR3BD9R 106FF 1-5/16" OL SoftClose Dowel 3-Cam Instruction

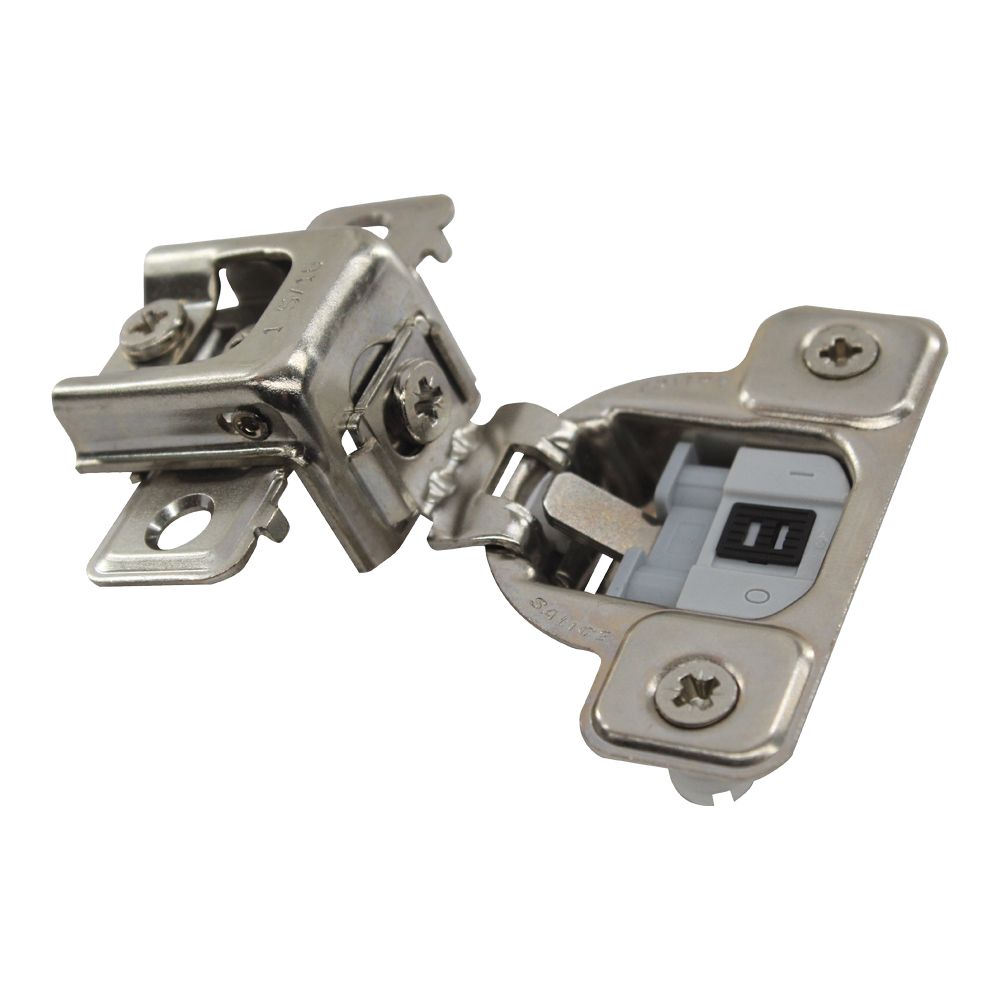

SALICE CUR3BD9R 106FF 1-5/16 OL 3Cam SoftClose Dowel is expertly designed to bring both functionality and style to your cabinetry. This press-in face frame hinge features an innovative 11mm cup depth, allowing it to accommodate deep edge profiles seamlessly. The increased side adjustment range of -2mm to +3mm gives you the flexibility needed for precise alignment and installation, ensuring that your doors close smoothly and securely. With an edge bore distance of 2.5mm, this hinge is perfect for profile edge doors, allowing for fine-tuning of the overlay. It maintains a 4.6mm gap between the door and frame, promoting a clean and professional finish. The 106° opening provides ample access to your cabinet's interior, enhancing usability without compromising aesthetics. Suitable for doors with a minimum thickness of 9/16" and a maximum of 7/8", the SALICE CUR3BD9R is a versatile option for various cabinetry projects. Weighing just 0.15 lbs, it is easy to handle and install, making it an ideal choice for both building professionals and knowledgeable homeowners alike. Crafted by Salice, a trusted name in cabinet hardware, this hinge is designed to deliver lasting performance and reliability.

106FF 1-5/16 OL 3Cam SoftClose Dowel

• Edge bore distance of 2.5mm to accommodate profile edge doors and allowing overlay fine tuning
• Maximum door thickness 7/8"
• Increased range of side adjustment (-2mm
• 4.6mm gap between door and frame
• 106° opening
• +3mm)
• Minimum door thickness 9/16"
• Features an 11mm cup depth to accommodate deep edge profiles
