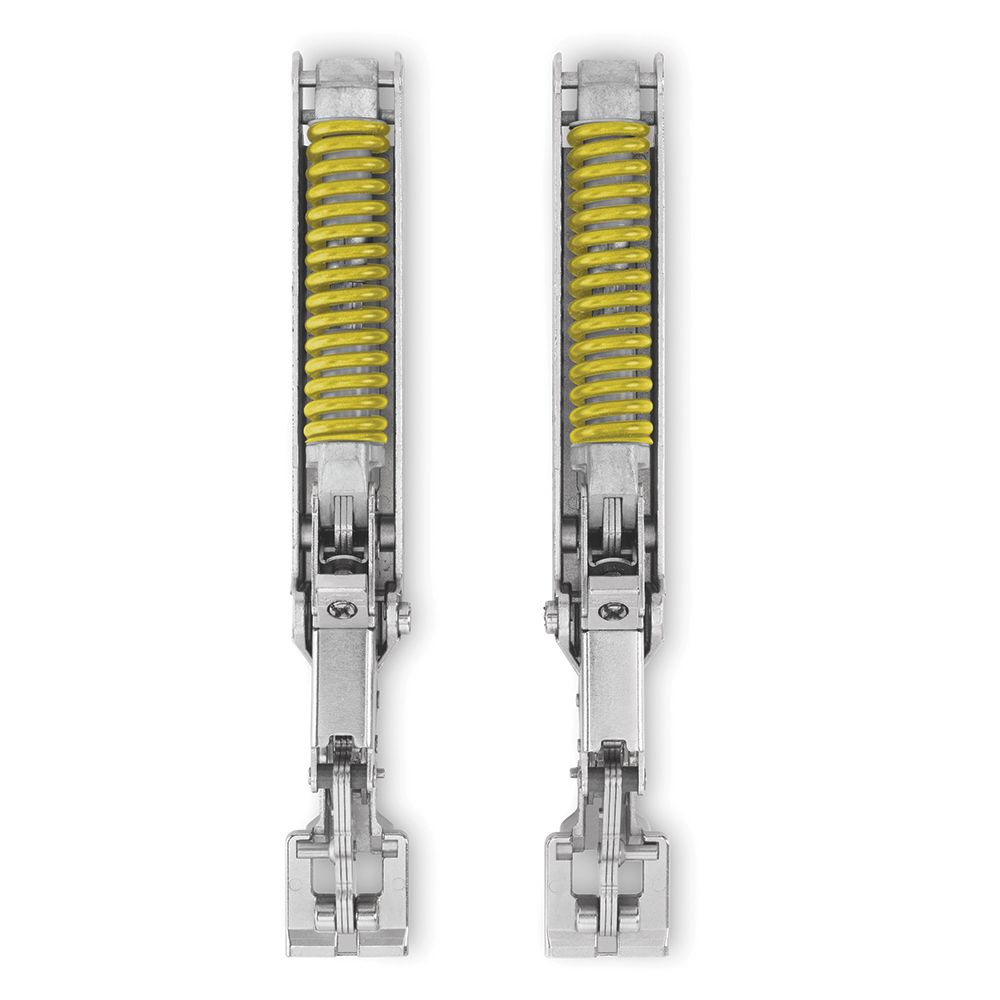

Salice FRAKFEXISN9 Wind Self-Closing Yellow Hardware

SALICE Wind Soft Close YELLOW/YELLOW FRAKFEXISN9 offers an innovative solution for upward-opening lids, eliminating the need for traditional piano, butt, or concealed hinges. This lift system is designed for ease of installation, attaching directly to the cabinet sides with a 35mm hinge cup hole in the door. It boasts a minimum door height of 8-5/8" (220mm) and accommodates doors up to a maximum height of 24" (610mm). When using two lid stays, the system supports doors with a width of up to 48", ensuring versatility for various cabinet configurations. One of the standout features of the SALICE Wind system is the optional top mounting bracket. This bracket is ideal for angled cabinets, wide or heavier doors, and even five-piece doors that require ceiling mounting. The system allows for an impressive opening angle of 85° with the restriction clip installed, which can be increased to 94° if the clip is removed, providing flexibility in access. Weighing in at just 3.5 lbs, this lift system is lightweight yet sturdy, making it a perfect choice for both building professionals and knowledgeable homeowners looking to enhance their cabinetry effortlessly. With SALICE, you can trust that functionality and design are seamlessly integrated.

Wind Self Close YELLOW/YELLOW

• Does not require extra hinges
• Minimum door height 8-5/8" (220mm)
• Maximum door height 24" (610mm)
• 85° opening with restriction clip installed, 94° if removed
• Maximum door width is 48" when using 2 lid stays
• Flap door lift system attaches to the cabinet sides with 35mm hinge cup hole in the door
• Top mounting bracket available for angled cabinets, wide or heavier doors and 5 piece doors to mount to ceiling of cabinet
