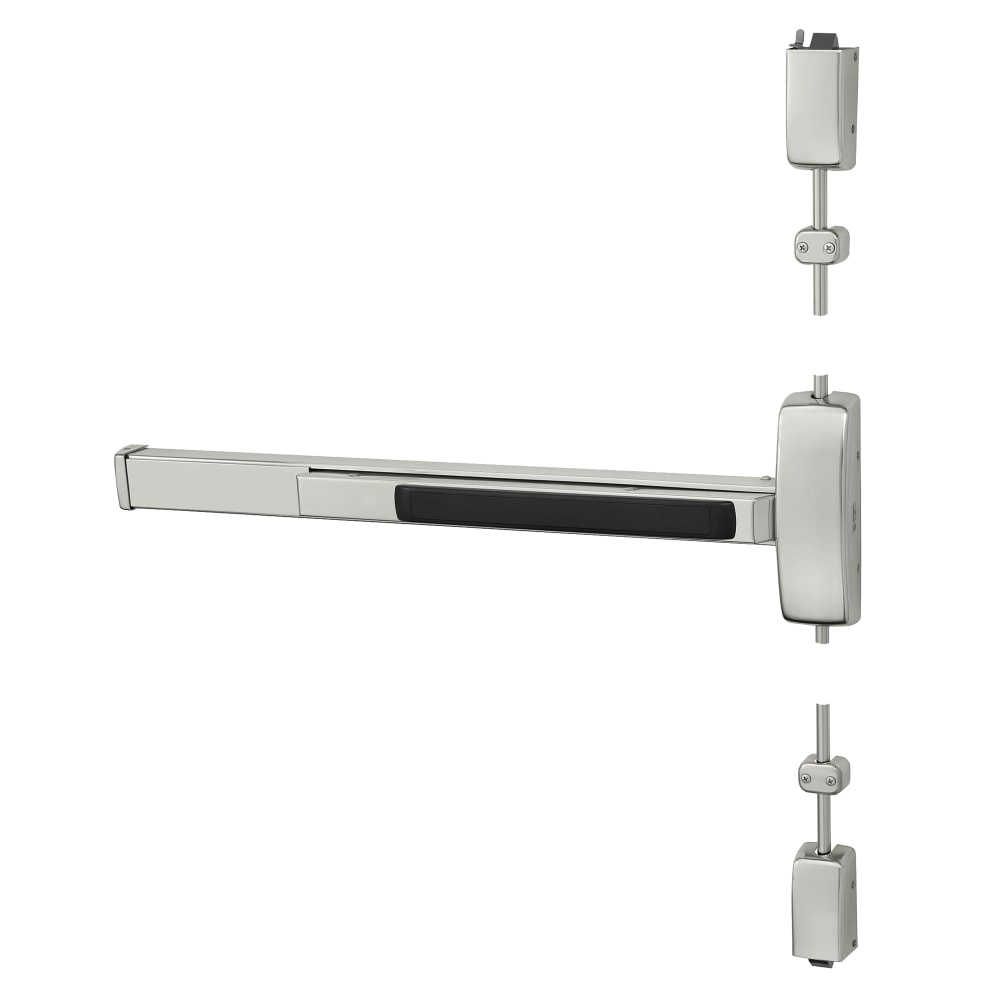

Sargent 12-8706F ETJ RHR 32D SVR Storeroom Exit Device

Sargent 12-8706F ETJ RHR 32D SVR Exit Device, Storeroom offers robust security and reliability with its Grade 1 Surface Vertical Rod design. Engineered for demanding environments, this 36" fire-rated device accommodates a 96" door height and features a wide stile pushpad, ensuring easy access in high-traffic areas. The storeroom function provides enhanced security by restricting entry to authorized personnel only. Constructed from satin stainless steel, this exit device not only meets but exceeds ANSI/BHMA Grade 1 requirements for durability and strength, making it a dependable choice for any facility. Its modular design boasts minimal moving parts, translating to maintenance-free performance over its lifespan. The two-point latching system, adjustable through the center case, delivers added security and adaptability across various door types, including wood and metal doors ranging from 1-3/4" to 2-1/4" in thickness. Additionally, it features a J lever with escutcheon and is part of the versatile Sargent 80 Series, which includes options for unique applications like delayed egress and electric latch retraction. Choose the Sargent 12-8706F for a combination of simplicity, strength, and innovative design, ensuring your facility remains secure and accessible.

SVR Exit Device, Storeroom

Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, 36" Fire-Rated Device, 96" Door Height, Storeroom Function, J Lever with Escutcheon, Less Dogging, Satin Stainless Steel Finish, Right Hand Reverse

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.

Has two point latching and is adjustable through the center case.

Part of Sargent's full line of exit devices that provide the best combination of simplicty, strength, durability, aesthetics, and innovation. The top and bottom latchbolt projection is adjustable through the center case.

• Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" to 2-1/4" specify thickness and order as a 31- prefix.  4-1/2" (114mm) minimum stile with trim and 3-1/2" (44mm) minimum stile without trim
• Door Widths:E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door

Resources

• 12-HC8700 Top Case Parts List
• 14-8700 Series Surface Vertical Rod Series Bottom Case Parts List
• 16- 816 Cylinder Dogging Kit (80 Series Exit Device) Installation Instructions
• 43-Flush End Cap Rail Cutting Installation Instructions
• 55-Signal Switch for 80 Series Installation Instructions
• 56-Electric Latch Retraction Exit Device Sell Sheet
• 565 & 665 Metal End Cap Kit Installation Instructions
• 57-Delayed Action 80 Series Exit Device Installation Instructions
• 57-Delayed Egress for 80 Series Exit Devices to ElectroLynx Connector System Installation
• 59-8700 Surface Vertical Rod Chassis Parts List
• 59-Electroguard Delayed Egress for 80 Series Exit Devices Installation Instructions
• 80 Series Brochure
• 816 Cylinder Dogging Kit Parts List
• 8600/8700/8800/8900 Wide Stile Rail Assemblies Parts List
• 8700 Series Surface Vertical Rod Exit Devices Cut Sheet
• AL- Alarmed Exit Device Installation Instructions
• Basic Fundamentals - Exit Devices
• Electric Dogging for 80 Series Installation Instructions
• Mounting 80 Series Exit Device with Glass Bead Shim Kit Installation Instructions
• NB-8700 ET Trim Template
• Thru-Bolt for 80 Series 8700,8800 and 8900 Installation Instructions
• Video: 8700 Series Surface Vertical Rod Exit Device Installation
• Windstorm Solutions - Exit Devices
