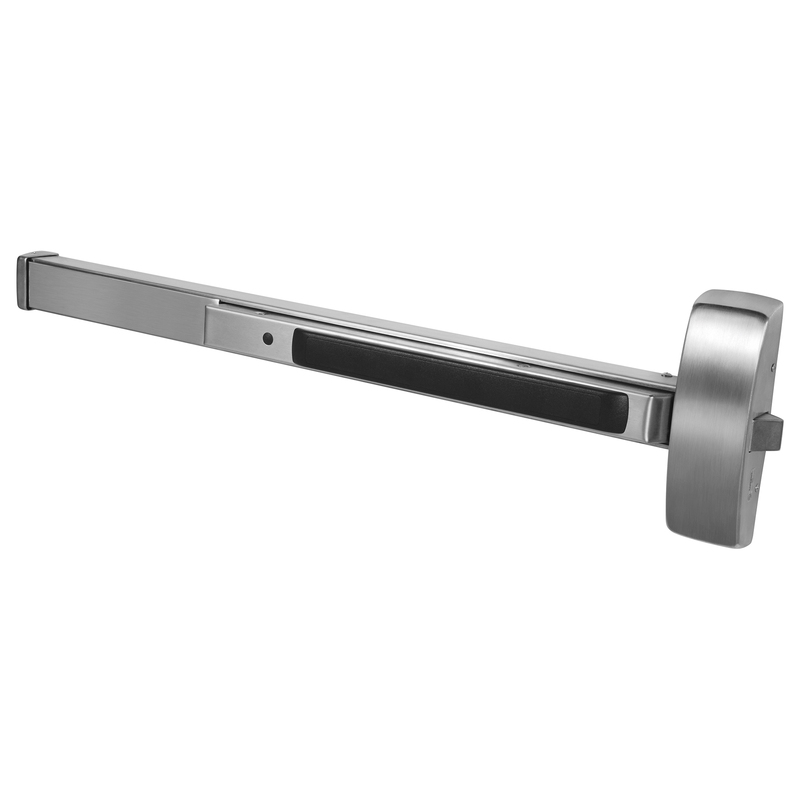

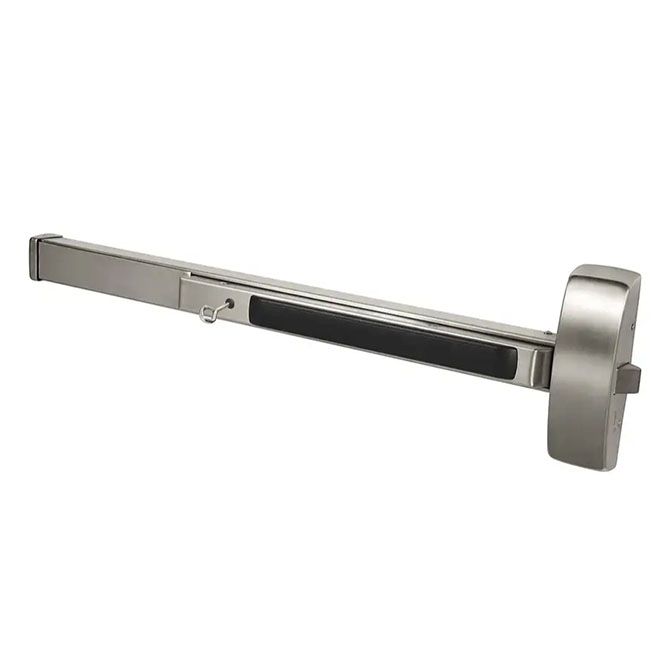

Sargent 128888F32D UL Fire Rated Reversible Extra Heavy Duty Rim Exit Only Exit Device is designed for doors measuring 33" to 36" wide and 7' tall, featuring a sleek satin stainless steel finish that combines durability with style. This exit device is an ideal choice for high-traffic commercial environments, healthcare facilities, industrial sites, and educational institutions, ensuring security and ease of use. Constructed with modular design and maintenance-free engineering, the Sargent 128888F32D boasts fewer moving parts, enhancing reliability while reducing the need for frequent maintenance. UL Fire and Panic listed, this device meets stringent safety standards, providing peace of mind in emergency situations. It is ANSI/BHMA Grade 1 certified, which guarantees top-tier performance and longevity. With a device length of 34" and a door thickness of 1-3/4", it fits seamlessly into various applications. The minimum stile width required is 4-1/2", making it versatile for different door types. This exit device is part of the 8888 Series, emphasizing Sargent’s commitment to quality and innovation. Backed by a limited 5-year warranty, the Sargent 128888F32D is a dependable choice for ensuring safe and efficient egress in any building.
UL Fire Rated Reversible Extra Heavy Duty Rim Exit Only Exit Device for 33" to 36" x 7' Door Satin Stainless Steel Finish
SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.
Ship via: Can Ship UPS
Accessible: No
Ada Compliance: No
Alternate Codes: 12-8888F32D, 128888F32D, 142842
Ansi: ANSI/BHMA A156.3
Baa Qualified: Yes
Bar Style: Push Bar
Burglar Rated: No
Category: Exit Devices
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: USA
Design: Rim Device
Device Length: 36 In.
Device Type: Rim
Dimension: 34"
Dogging: Hex Key
Dogging Options: Less Dogging
Door Material: Metal or Wood
Door Thickness: 1-3/4" to 2-1/4"
Door Type: Metal, Wood
Door Width: 36"
Exit Device Type: Rim Exit
Finish: Satin Stainless Steel
Finish Code: US32D
Finish Color: Satin Stainless Steel
Finish Description: Satin Stainless Steel
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: Exit Only
Grade: Grade 1
Hand: Non-Handed
Handing: Non-Handed
Hazardous Material: NO
Includes Cylinder: No
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 5 Years
Manufacturer Warranty: Limited 5 Year Warranty
Material: Stainless Steel
Mechanical Function: Universal
Minimum Stile Size: 4-1/2" Minimum Stile Width
Minimum Style Size: 4-3/4"
No Of Inners: 1
Options: Fire Rated
Order_ Qty: 1
Origin: USA
Pack Height: 6"
Pack Length: 38"
Pack Qty: 1
Pack Volume: 1710 in³
Pack Width: 7.5"
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: Yes
Series: 8888 Series
Ship Weight: 15 lbs.
Strike: 649 Strike
Strike Standard: 649
Subcategory: Rim Exit Devices
Subtype: Exit Device
Supplier: Sargent
Trim Type: Less trim
Type: PANIC DEVICES & EXIT ALARMS
Ul Listing: UL10C & UL305
Ul Listing Type: UL10C and UL305
Unit of Measure: Each
