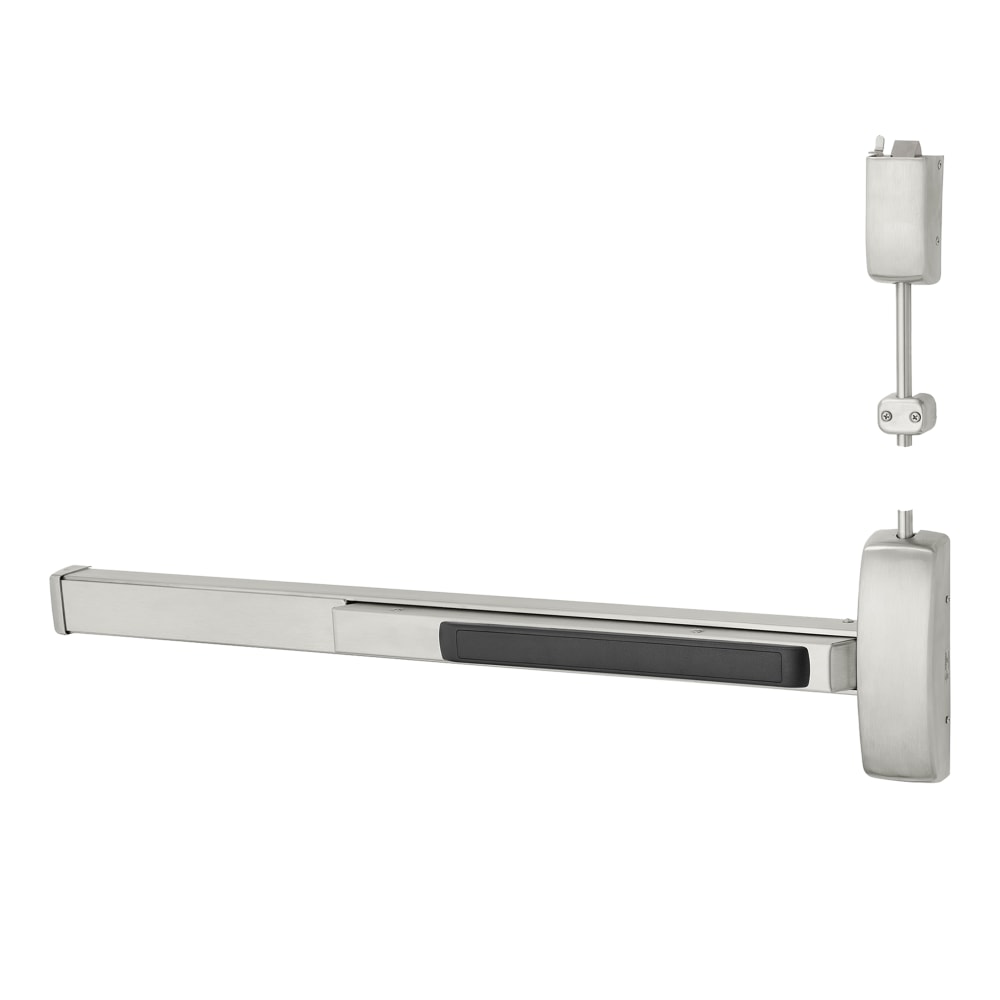

Sargent 125556-NB8713G LHR 32D NB-SVR Classroom Exit Device

Sargent 125556-NB8713G LHR 32D NB-SVR Exit Device, Classroom combines robust security with user-friendly functionality. Designed as a Grade 1 Surface Vertical Rod Exit Device, it features a wide stile pushpad and is suitable for fire-rated applications, with a 48" device tailored for 84" doors. The classroom function provides controlled access, making it ideal for educational environments. Notably, this model includes electric latch retraction and a request to exit switch, enhancing both security and convenience. Constructed to meet and exceed ANSI/BHMA Grade 1 standards, the Sargent 80 Series exit devices ensure longevity and minimal maintenance due to their modular design and fewer moving parts. With a satin stainless steel finish, it seamlessly integrates with various architectural styles while offering a clean, professional appearance. This exit device is compatible with wood or metal doors ranging from 1-3/4" to 2-1/4" in thickness and accommodates door widths from 24" to 48". Fire-rated for up to 3 hours, it is a reliable choice for commercial spaces requiring stringent safety measures. The Sargent 125556-NB8713G is the perfect solution for facilities prioritizing security, durability, and ease of use.

NB-SVR Exit Device, Classroom

Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, 48" Fire-Rated Device, 84" Door Height, Classroom Function, Less Bottom Rod, Electric Latch Retraction, Request to Exit Switch, Less Dogging, Satin Stainless Steel Finish, Left Hand Reverse

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.

The NB8700 Series is a top latch surface vertical rod exit device.

The NB8700 Series is part of Sargent's full line of exit devices that provide the best combination of simplicity, strength, durability, aesthetics and innovation. This series has both rated and non-rated openings.

• Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" to 2-1/4" specify thickness and order as a 31- Prefix; 4-1/2" (114mm) minimum stile with trim and 3-1/2" (44mm) minimum stile without trim
• Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door

Resources

• 8700 Series Surface Vertical Rod Exit Devices Cut Sheet
• NB8700 Series Installation Instructions
