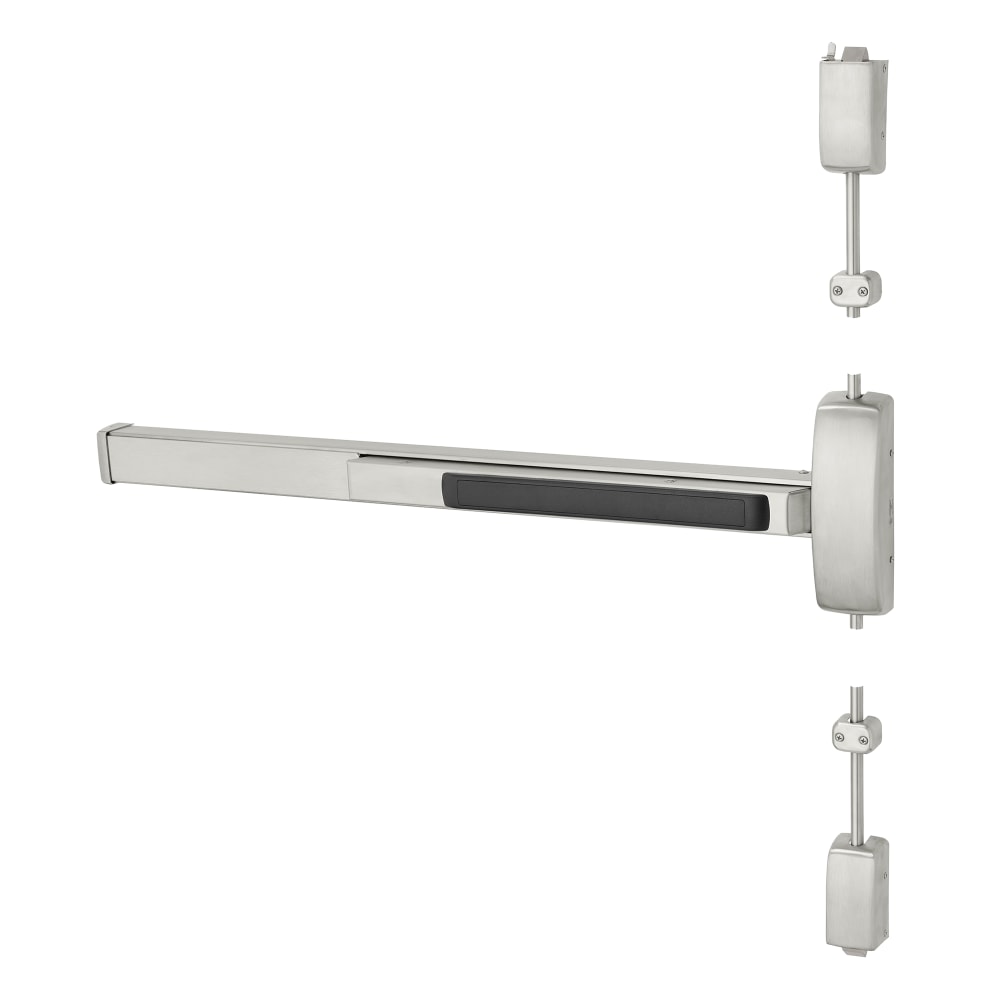

Sargent 1256-8710J LHR 32D SVR Exit Device - Exit Only

Sargent 1256-8710J LHR 32D SVR Exit Device, Exit Only offers a robust security solution designed for high-traffic commercial environments. This Grade 1 Surface Vertical Rod Exit Device features an impressive 42" length and is engineered to accommodate doors up to 96" in height, ensuring compliance with fire safety standards. The satin stainless steel finish not only enhances durability but also adds a sleek, modern aesthetic to any building. Ideal for wood or metal doors ranging from 1-3/4" to 2-1/4" in thickness, this exit device is tailored for ease of installation and use. It boasts electric latch retraction for quick exit, making it a reliable choice for emergency situations. The wide stile pushpad design allows for effortless operation, while the less dogging feature ensures a streamlined appearance without compromising security. With its two-point latching system and adjustable top and bottom latchbolt projections, the Sargent 1256-8710J provides exceptional versatility. This exit device is part of the 8700 Series, known for its maintenance-free modular construction and superior strength that meets and exceeds ANSI/BHMA Grade 1 standards. Backed by a 5-year limited warranty, it promises lasting performance and peace of mind for any facility.

SVR Exit Device, Exit Only

Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, 42" Fire-rated Device, 96" Door Height, Exit Only, Electric Latch Retraction, Less Dogging, Satin Stainless Steel Finish, Left Hand Reverse

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.

Has two point latching and is adjustable through the center case.

Part of Sargent's full line of exit devices that provide the best combination of simplicty, strength, durability, aesthetics, and innovation. The top and bottom latchbolt projection is adjustable through the center case.

• Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" to 2-1/4" specify thickness and order as a 31- prefix.  4-1/2" (114mm) minimum stile with trim and 3-1/2" (44mm) minimum stile without trim
• Door Widths:E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
