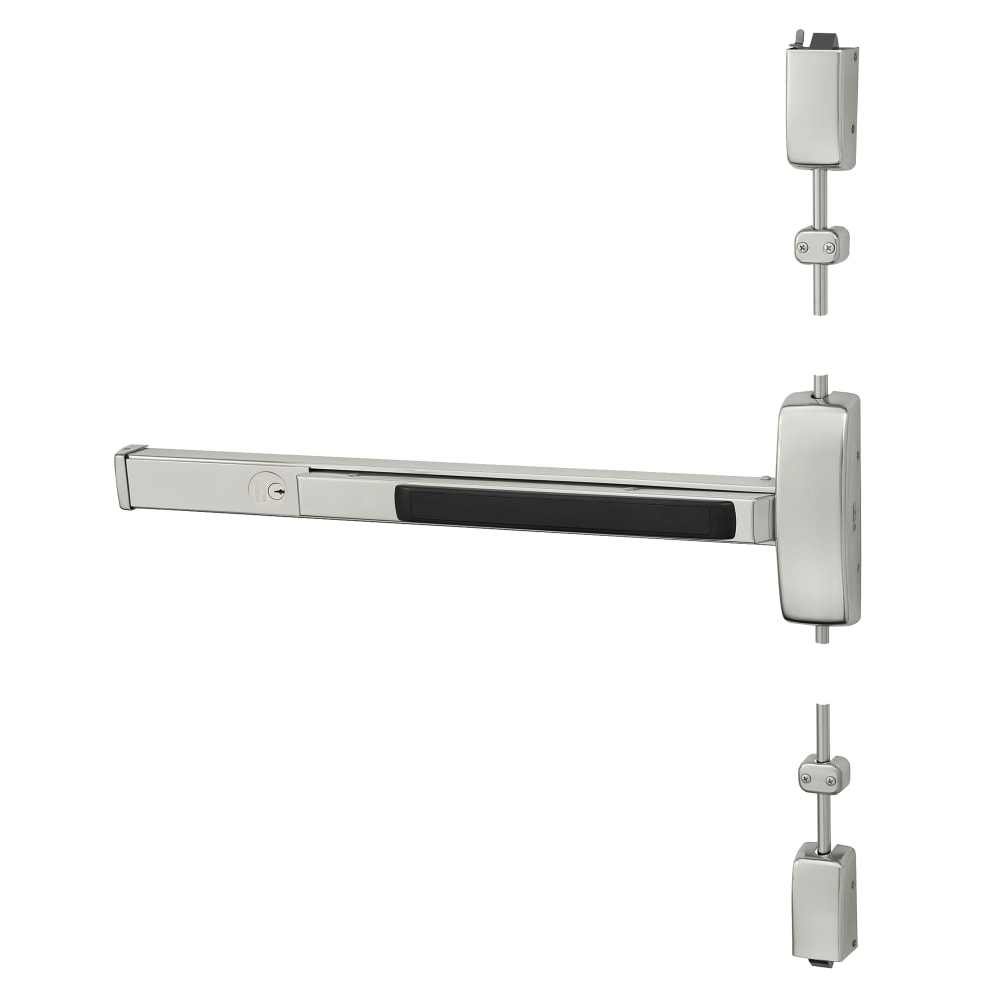

Sargent 16-8762F LHR 32D SVR Storeroom Exit Device T-Piece

Sargent 16-8762F LHR 32D SVR Exit Dev Storeroom T-Piece offers a robust solution for high-security environments. This Grade 1 Surface Vertical Rod Exit Device is designed for doors 36 inches wide and 96 inches tall, making it ideal for commercial spaces where durability is paramount. Featuring a wide stile pushpad and storeroom function, this device allows for easy exit while ensuring secure access control. The Sargent 80 Series exit devices exceed ANSI/BHMA Grade 1 standards for strength and cycling, providing maintenance-free operation thanks to its modular construction and minimal moving parts. It includes cylinder dogging for added convenience and comes in a sleek satin stainless steel finish that complements any architectural style. Designed to fit wood or metal doors with a thickness of 1-3/4 inches to 2-1/4 inches, the exit device accommodates various door widths without the need for cutting. With two-point latching adjustable through the center case, it ensures a tight fit and reliable security. This exit device is UL listed for safety and is backed by a 5-year limited warranty, making it a trustworthy choice for your building's exit security needs.

SVR Exit Dev Storeroom T-Piece

Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, 36" Device, 96" Door Height, Storeroom Function, Cylinder Dogging, Cylinder Included, Satin Stainless Steel Finish, Left Hand Reverse

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.

Has two point latching and is adjustable through the center case.

Part of Sargent's full line of exit devices that provide the best combination of simplicty, strength, durability, aesthetics, and innovation. The top and bottom latchbolt projection is adjustable through the center case.

• Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" to 2-1/4" specify thickness and order as a 31- prefix.  4-1/2" (114mm) minimum stile with trim and 3-1/2" (44mm) minimum stile without trim
• Door Widths:E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
