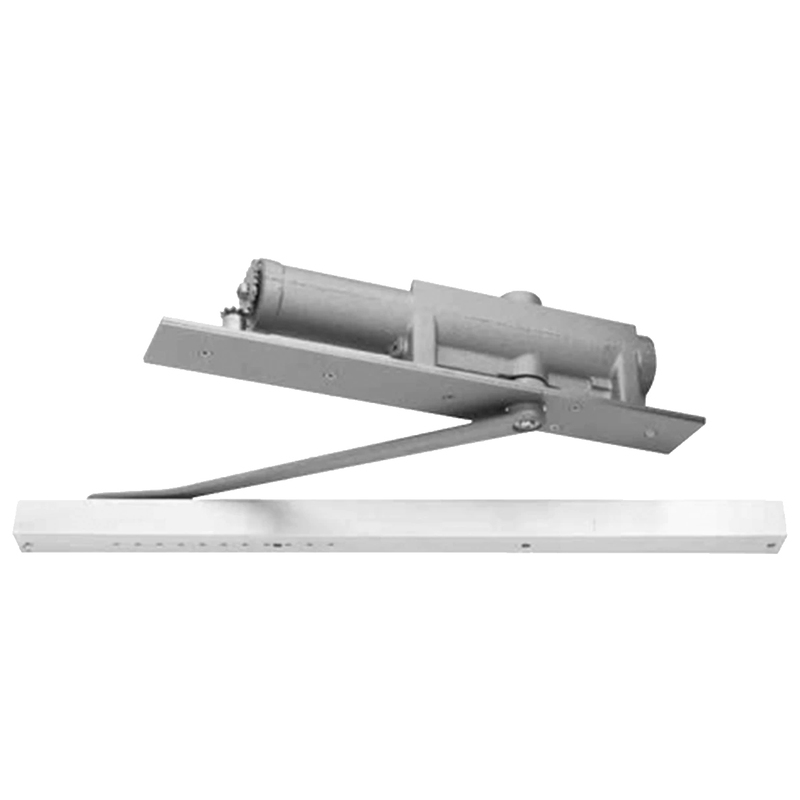

Sargent 268-H EN LH Concealed Track Door Closer

Sargent 268-H EN LH Concealed Track Closer offers a sophisticated solution for both interior and exterior doors, combining security and aesthetics seamlessly. This overhead concealed closer features a hold-open arm and is designed specifically for left-handed doors, ensuring functionality without compromising design integrity. The complete concealment of the closer, arm, and track when the door is closed provides a high degree of resistance to abuse, making it ideal for high-traffic areas. The durable forged steel arm with bearing roller ensures smooth operation, while the aluminum track guarantees longevity. With a minimum door thickness of 1-3/4" (44mm), this closer is suitable for a variety of applications, meeting the needs of both commercial and residential environments. Adjustable closing force from 2 through 4 allows for customization based on specific requirements, and the adjustable degree of hold open enhances flexibility. This Grade 1 closer is engineered for reliability, backed by a limited 10-year warranty. Additionally, it is factory preset for 3' door widths and accommodates a 110-degree swing, ensuring easy installation. Crafted in a matte silver finish, the Sargent 268-H EN LH is a dependable choice for those seeking both performance and style in door hardware.

Concealed Track Closer

Overhead Concealed Door Closer, Concealed Track, Hold Open Arm, Left Hand, Sprayed Aluminum Enamel

The 268 Series is a complete line of overhead concealed closers for interior and exterior doors with quality and flexibility to meet virtually every application. When security is required, the concealed design of the 268 Series Closer provides a high degree of resistance to abuse. The arm, trach and closer are completely concealed when the door is closed.

Concealed closers for interior and exterior doors with quality and flexibility to meet virtually every application.

When security is desired the concealed nature of the 268 Series closer provides a high degree of resistance to abuse since the arm, track and closer is completely concealed when the door is closed.

• Fully concealed closer body concealed in the frame head
• Track fully concealed in door. Arm is only visible when door is open
• 1-3/4" (44mm) min. door thickness
• Arms are forged steel with bearing roller
• Aluminum track
• Metal closer faceplate furnished standard
• Handed - Order the same hand as the door
• Closing force adjustable 2 through 4
• Closers are factory preset for 3' door width
• Delayed action option available
• Auxiliary door stop required

Resources

• 268 Series Concealed Door Closers (w/ 'CSP' Concealed Security Package) Installation Instructions
• 268 Series Concealed Door Closers Installation Instructions
• 268 Series Door Closers Cut Sheet
• 268/269 Case Assembly Parts List
• 268/269 O Arm Parts List
• 268/269 Security Arm Parts List
• 268/269 Series Concealed Door Closers (w/ 'CSPS/CSPD' Door Position) Installation Instruction
• 268/269/278 Series Concealed Door Closers Catalog
• Overhead Concealed Closer Cross-Reference Sheet
