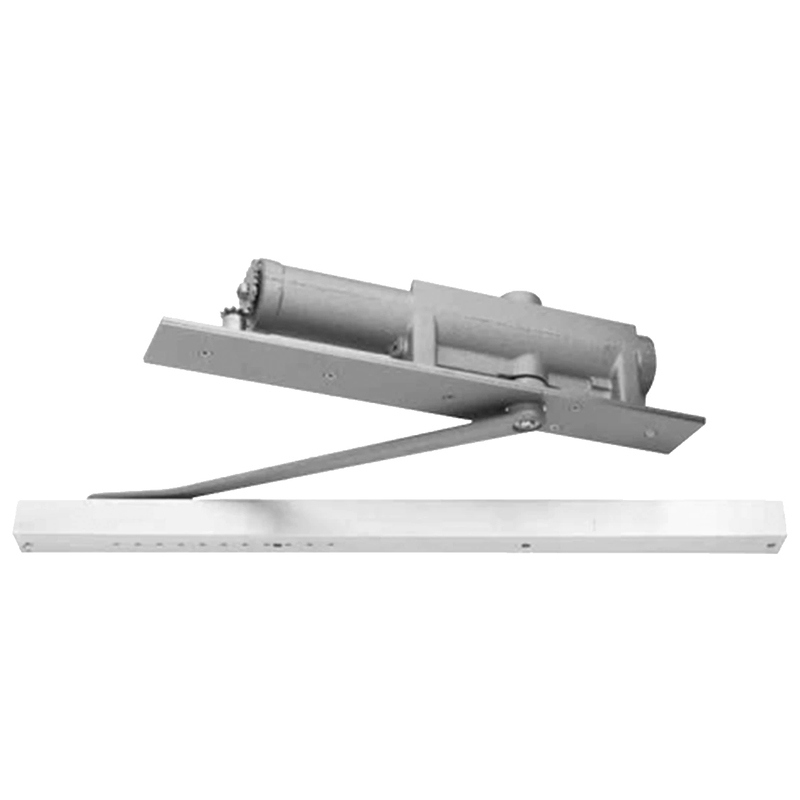

Sargent 268-H EN RH Concealed Track Door Closer

Sargent 268-H EN RH Concealed Track Closer offers a sophisticated solution for both interior and exterior doors. Designed with a completely concealed closer body, this overhead device ensures a sleek appearance while providing robust functionality. The track is also hidden within the door, making the arm visible only when the door is open, which enhances security and aesthetic appeal. With a minimum door thickness of 1-3/4" (44mm), the 268 Series is crafted from durable materials, featuring forged steel arms equipped with bearing rollers for smooth operation. The aluminum track contributes to its lightweight yet sturdy design. This closer is adjustable for closing force, ranging from 2 to 4, and comes factory preset for standard 3' door widths. An auxiliary door stop is required for installation. The adjustable hold open functionality allows for flexibility in various applications, while the back check feature ensures controlled door movement. Ideal for commercial settings, the Sargent 268-H is finished in a matte silver tone (689/US28) that complements any decor. Backed by a 10-year limited warranty, this closer promises reliability and performance, making it a preferred choice for building professionals and knowledgeable homeowners alike.

Concealed Track Closer

Overhead Concealed Door Closer, Concealed Track, Hold Open Arm, Right Hand, Sprayed Aluminum Enamel

The 268 Series is a complete line of overhead concealed closers for interior and exterior doors with quality and flexibility to meet virtually every application. When security is required, the concealed design of the 268 Series Closer provides a high degree of resistance to abuse. The arm, trach and closer are completely concealed when the door is closed.

Concealed closers for interior and exterior doors with quality and flexibility to meet virtually every application.

When security is desired the concealed nature of the 268 Series closer provides a high degree of resistance to abuse since the arm, track and closer is completely concealed when the door is closed.

• Fully concealed closer body concealed in the frame head
• Track fully concealed in door. Arm is only visible when door is open
• 1-3/4" (44mm) min. door thickness
• Arms are forged steel with bearing roller
• Aluminum track
• Metal closer faceplate furnished standard
• Handed - Order the same hand as the door
• Closing force adjustable 2 through 4
• Closers are factory preset for 3' door width
• Delayed action option available
• Auxiliary door stop required

Resources

• 268 Series Concealed Door Closers (w/ 'CSP' Concealed Security Package) Installation Instructions
• 268 Series Concealed Door Closers Installation Instructions
• 268 Series Door Closers Cut Sheet
• 268/269 Case Assembly Parts List
• 268/269 O Arm Parts List
• 268/269 Security Arm Parts List
• 268/269 Series Concealed Door Closers (w/ 'CSPS/CSPD' Door Position) Installation Instruction
• 268/269/278 Series Concealed Door Closers Catalog
• Overhead Concealed Closer Cross-Reference Sheet
