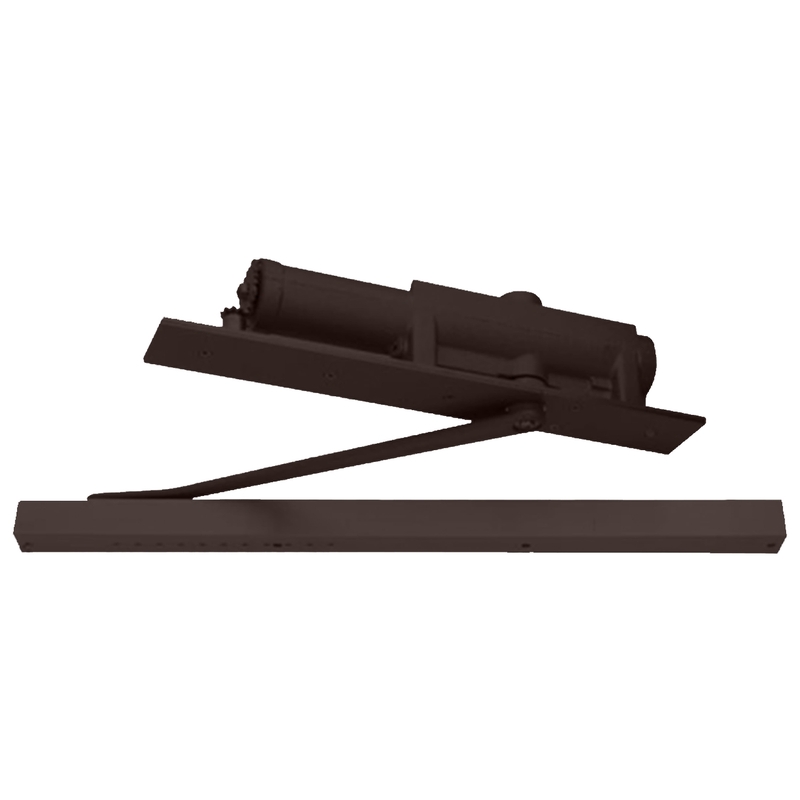

Sargent 268-O EB LH Concealed Track Door Closer

Sargent 268-O EB LH Concealed Track Closer offers a seamless solution for both interior and exterior doors, combining aesthetic appeal with robust functionality. Its overhead concealed design ensures that the mechanism remains out of sight when the door is closed, providing an elegant look while also enhancing security by minimizing potential tampering. This left-handed closer features a fully concealed body housed within the frame head, with track and arm visibility only when the door is open. Designed for doors with a minimum thickness of 1-3/4 inches, it is built with forged steel arms and an aluminum track, ensuring durability and reliability. The closing force is adjustable from 2 to 4, allowing for tailored performance based on specific needs. With a fire rating of 3 hours, this closer is suitable for commercial applications and is factory preset for standard 3-foot door widths. It also includes an adjustable back check and is compatible with cold weather fluid, making it versatile in various climates. The Sargent 268 Series Closer is backed by a 10-year limited warranty, affirming its quality and dependability for any project requiring a concealed overhead door closer.

Concealed Track Closer

Overhead Concealed Door Closer, Concealed Track Arm, Left Hand, Sprayed Dark Bronze Enamel

The 268 Series is a complete line of overhead concealed closers for interior and exterior doors with quality and flexibility to meet virtually every application. When security is required, the concealed design of the 268 Series Closer provides a high degree of resistance to abuse. The arm, trach and closer are completely concealed when the door is closed.

Concealed closers for interior and exterior doors with quality and flexibility to meet virtually every application.

When security is desired the concealed nature of the 268 Series closer provides a high degree of resistance to abuse since the arm, track and closer is completely concealed when the door is closed.

• Fully concealed closer body concealed in the frame head
• Track fully concealed in door. Arm is only visible when door is open
• 1-3/4" (44mm) min. door thickness
• Arms are forged steel with bearing roller
• Aluminum track
• Metal closer faceplate furnished standard
• Handed - Order the same hand as the door
• Closing force adjustable 2 through 4
• Closers are factory preset for 3' door width
• Delayed action option available
• Auxiliary door stop required

Resources

• 268 Series Concealed Door Closers (w/ 'CSP' Concealed Security Package) Installation Instructions
• 268 Series Concealed Door Closers Installation Instructions
• 268 Series Door Closers Cut Sheet
• 268/269 Case Assembly Parts List
• 268/269 O Arm Parts List
• 268/269 Security Arm Parts List
• 268/269 Series Concealed Door Closers (w/ 'CSPS/CSPD' Door Position) Installation Instruction
• 268/269/278 Series Concealed Door Closers Catalog
• Overhead Concealed Closer Cross-Reference Sheet
