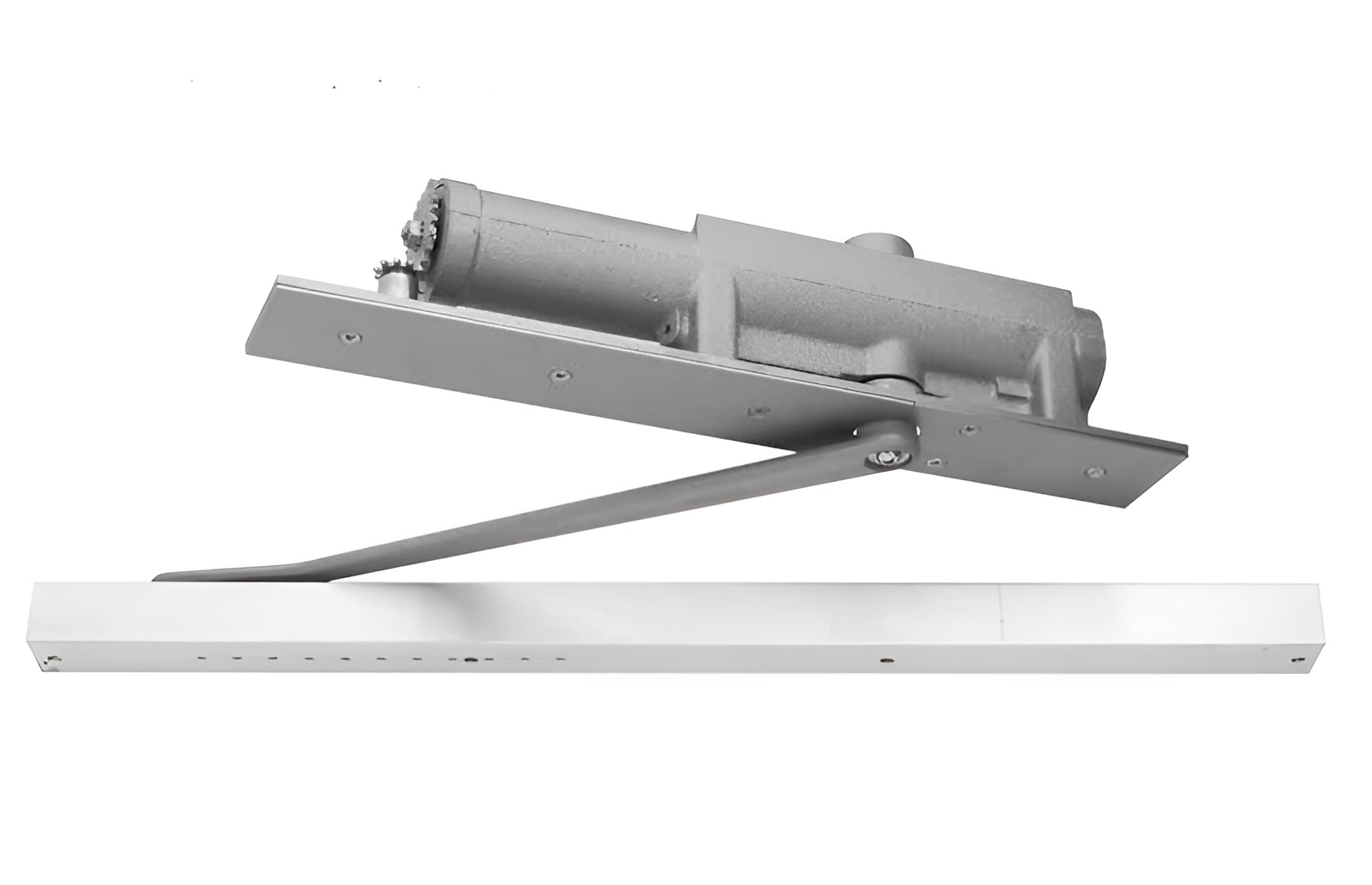

Sargent 269-CSPS EN LH Concealed Track Door Closer

Sargent 269-CSPS EN LH Concealed Track Closer offers a robust solution for your door security needs, particularly for heavy or exterior doors that open to 180°. This overhead concealed door closer is engineered with a specially designed spring that delivers powerful closing forces, ensuring reliable performance in high-use environments. Constructed from durable materials, the Sargent closer features a fully concealed closer body within the frame head, with the track hidden inside the door. The only visible component is the arm when the door is open, maintaining a clean aesthetic. With a minimum door thickness of 1-3/4", this Grade 1 closer is built to last, suitable for both commercial applications and demanding residential settings. Adjustable closing forces range from size 4 to 5, allowing for customization based on specific requirements. The closer is left-handed and comes with a standard metal faceplate. Additionally, it is compatible with cold weather fluid and features an adjustable back check for enhanced control. For optimal installation, an auxiliary door stop is required, and a removable stop is needed for doors under 2 inches wide. With a 10-year limited warranty, the Sargent 269-CSPS EN LH ensures peace of mind while providing superior performance and security.

Concealed Track Closer

Overhead Concealed Security Package Door Closer, Single Pole Double Throw Door Position Switch, Left Hand, Sprayed Aluminum Enamel

The 269 Overhead Concealed Door Closer provides exceptionally strong closing forces and is the ideal closer for use on heavy doors or exterior doors opening to 180¡. This Sargent Closer combines a durable springand the resilience of a grade 1 product to offer long lasting, dependable service where surface applied closers may not be suitable.

Provides strong closing forces and is the ideal closer to use with heavy doors or exterior doors opening to 180°.

This SARGENT closer combines a durable spring and the resilience of a Grade 1 product to offer lasting, dependable service where surface applied units may not be suitable.

• Specially designed spring to close heavy doors
• Fully concealed closer body concealed in the frame head
• Track fully concealed in door. Arm is only visible when door is open
• 1-3/4" (44mm) min. door thickness
• Arms are forged steel with bearing roller
• Aluminum track
• Metal closer faceplate furnished standard
• Handed - Order the same hand as the door
• Closing force adjustable from size 4 to 5
• Delayed action option available
• Auxiliary door stop required
• Removable stop required for door widths under 2"
