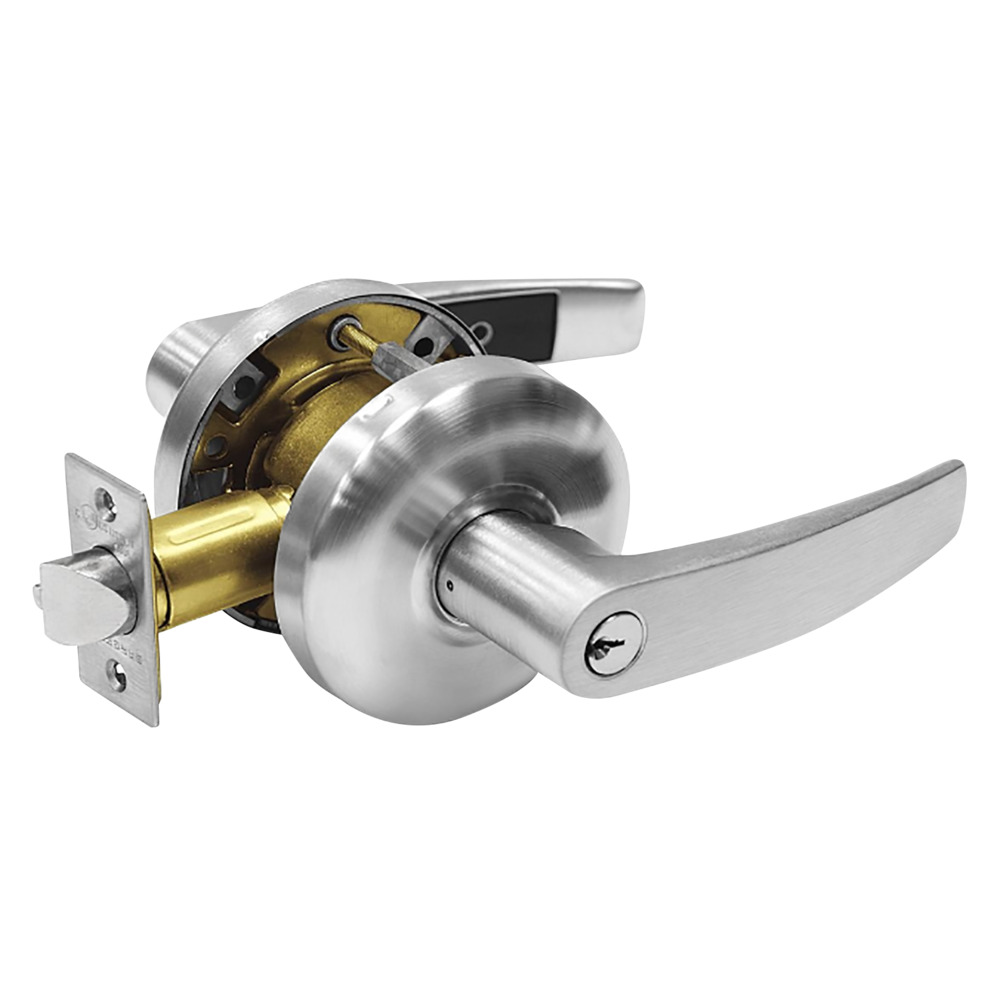

Sargent 28-65G05 KB 26D Grade 2 Office Lock offers a robust solution for both commercial and residential applications. Engineered to meet ANSI A156.2 Series 4000 Grade 2 standards, this cylindrical lock features a non-handed design, making it versatile for various door configurations. The B Lever provides a classic aesthetic while ensuring ease of use. Constructed from high-quality materials, the lock boasts a satin chrome finish that not only enhances durability but also complements a variety of architectural styles. The cylindrical housing is crafted from steel with a zinc dichromate finish, while the front is made of wrought brass and stainless steel for added strength. Designed for doors measuring 1-3/8" to 1-3/4" in thickness, the lock includes a 2-3/4" standard backset, with an optional 2-3/8" backset available. This lock includes a 6-pin brass cylinder with an LA keyway, and comes with two nickel silver keys. Windstorm certified and available with multiple function options, the Sargent 28-65G05 is a reliable choice for those seeking quality and security. With a limited 10-year warranty, it ensures long-lasting performance and peace of mind for your locking needs.
Grade 2 Entrance/Office Cylindrical Lock, B Lever, Conventional Cylinder, Satin Chrome Finish, Non-handed
The SARGENT 6500 Line is a standard duty key-in-lever lock designed to exceed the requirements of ANSI A156.2 Series 4000 Grade 2.
Windstorm certified and has several function options.
Attributes
Ansi: F109
Ansi Function: F109 - Entry/Office
Application: Medium Duty Cylindrical
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4-1/4"
Box Width Fraction: 7-1/8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Door Thickness: 1-3/8" to 1-3/4"
Dust Box: None
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 05-Entrance or Office
Function Family: Entrance/Office
Grade: Grade 2
Handing: Non-handed
Installation: Commercial
Keys: Cut
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: B
Leverknob Design: B Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 10 Year Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Entrance/Office
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/8"
Of Keys: 2
Origin: United States
Pack Height: 4.25"
Pack Height 2: 9"
Pack Length: 8.25"
Pack Length 2: 20.75"
Pack Qty: 1
Pack Volume: 249.82 in³
Pack Volume 2: 2801.25 in³
Pack Width: 7.13"
Pack Width 2: 15"
Pins: 6
Product Height: 4.25"
Product Length: 8.25"
Product Width: 7.13"
Projection: 2-3/8"
Rose Escutcheon: Rose
Roseescutcheon Design: 3-3/8" Rose Diameter
Roseescutcheon Dimensions: 3-3/8"
Screws: Wood/Machine Screws
Series: 6500-Line Bored Lever Locks
Ship Weight: 4.2 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 103121
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 2, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 10
