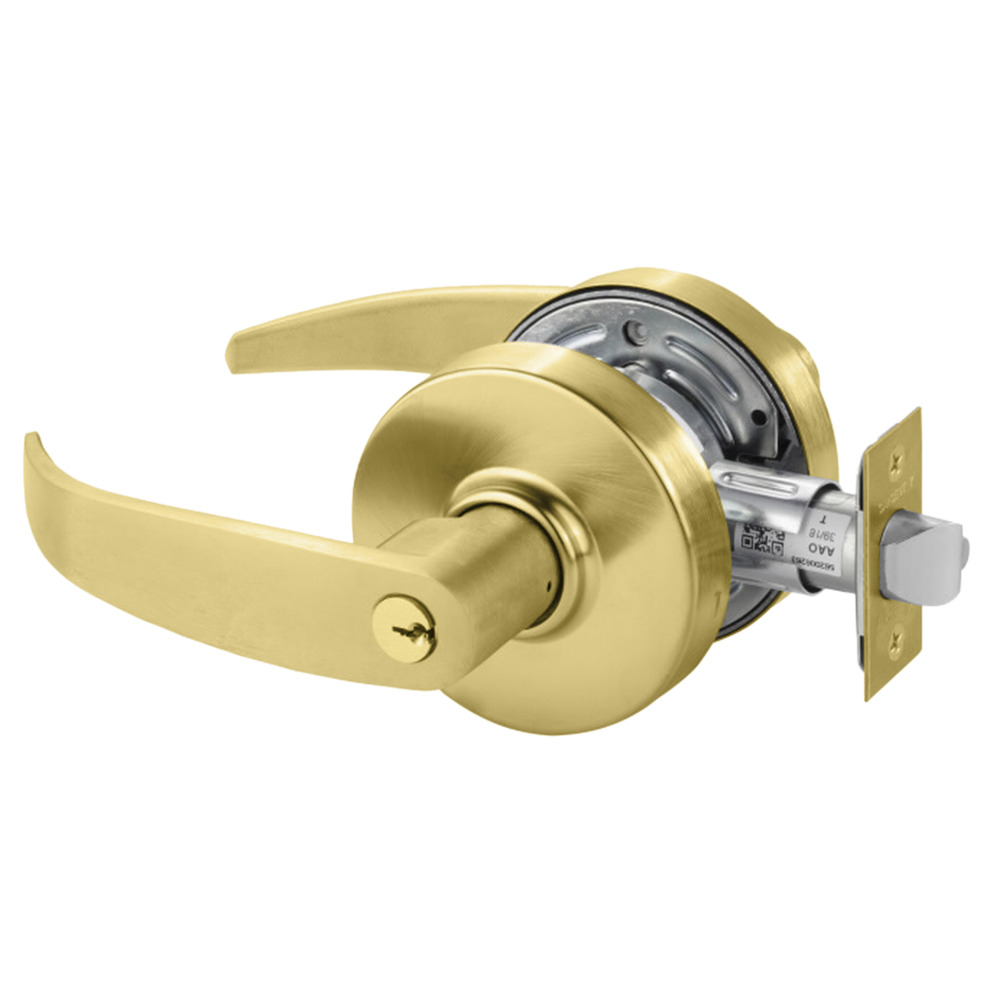

Sargent 28-7G37 LP 04 Grade 2 Cylindrical Lever offers a robust and reliable locking solution tailored for standard duty commercial use. This key-in-lever lock is designed for both interior and exterior applications, making it ideal for public buildings, medical offices, hotels, and government facilities. With a satin brass finish and a P lever design, it not only provides a solid feel but also enhances aesthetic appeal. Exceeding ANSI/BHMA A156.2 standards for cycling and durability, this cylindrical lock boasts a non-handed configuration, accommodating various installation needs. The lock features a conventional cylinder with a 6-pin LA keyway and comes with two nickel silver keys. Its durable steel housing is complemented by a zinc dichromate finish, ensuring long-lasting performance. Designed for doors with a thickness of 1-3/4 inches and a standard backset of 2-3/4 inches, the Sargent 28-7G37 LP is equipped with a brass latch providing a 1/2-inch throw. The lock is also fire-rated for up to 3 hours, adding an extra layer of safety. With a limited 5-year warranty, this lock is an excellent choice for professionals seeking a dependable and stylish locking solution.
Grade 2 Classroom Cylindrical Lock, P Lever, Conventional Cylinder, Satin Brass Finish, Non-handed
A key-in-lever lock designed for standard duty commercial interior and exterior applications in public buildings, medical offices, hotels/motels and government facilities. Exceeds ANSI/BHMA A156.2 standards for cycling and durability.
Sargent's 7 Line Bored Lever Locks are designed with a solid feel and a precise lever action.
A key-in-lever lock designed for standard duty commercial exterior and interior doors in offices, commercial interiors, medical clinics, government facilities and public buildings. Exceeds ANSI/BHMA A156.2 Standards for cycling and durability.
Attributes
Ansi: F84
Ansi Function: F84 - Classroom
Baa Qualified: Yes
Base Material: Brass
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4-1/4"
Box Width Fraction: 6-7/8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4"
Dust Box: None
Finish: 606/US4
Finish Family: Matte Brass
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 37-Classroom
Function Family: Classroom
Grade: Grade 2
Handing: Non-handed
Installation: Commercial
Keys: Cut
Latch Bore Diameter: 7/8"
Lever Knob: Lever
Lever Knob Design Name: P
Leverknob Design: P Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 5 Year Warranty
Lock Face Size: 1-1/8 x 2-1/4"
Manufacturer Function: Classroom
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/4"
Of Keys: 2
Origin: United States
Pack Height: 4.25"
Pack Height 2: 9"
Pack Length: 8.25"
Pack Length 2: 20.75"
Pack Qty: 1
Pack Volume: 241.05 in³
Pack Volume 2: 2801.25 in³
Pack Width: 6.88"
Pack Width 2: 15"
Pins: 6
Product Height: 4.25"
Product Length: 8.25"
Product Width: 6.88"
Projection: 2-1/2"
Rose Escutcheon: Rose
Roseescutcheon Design: 3-3/8" Rose Diameter
Roseescutcheon Dimensions: 3-3/8"
Screws: Wood/Machine Screws
Series: 7-Line Bored Lever Locks
Ship Weight: 3.6 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 193762
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 2, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 10
