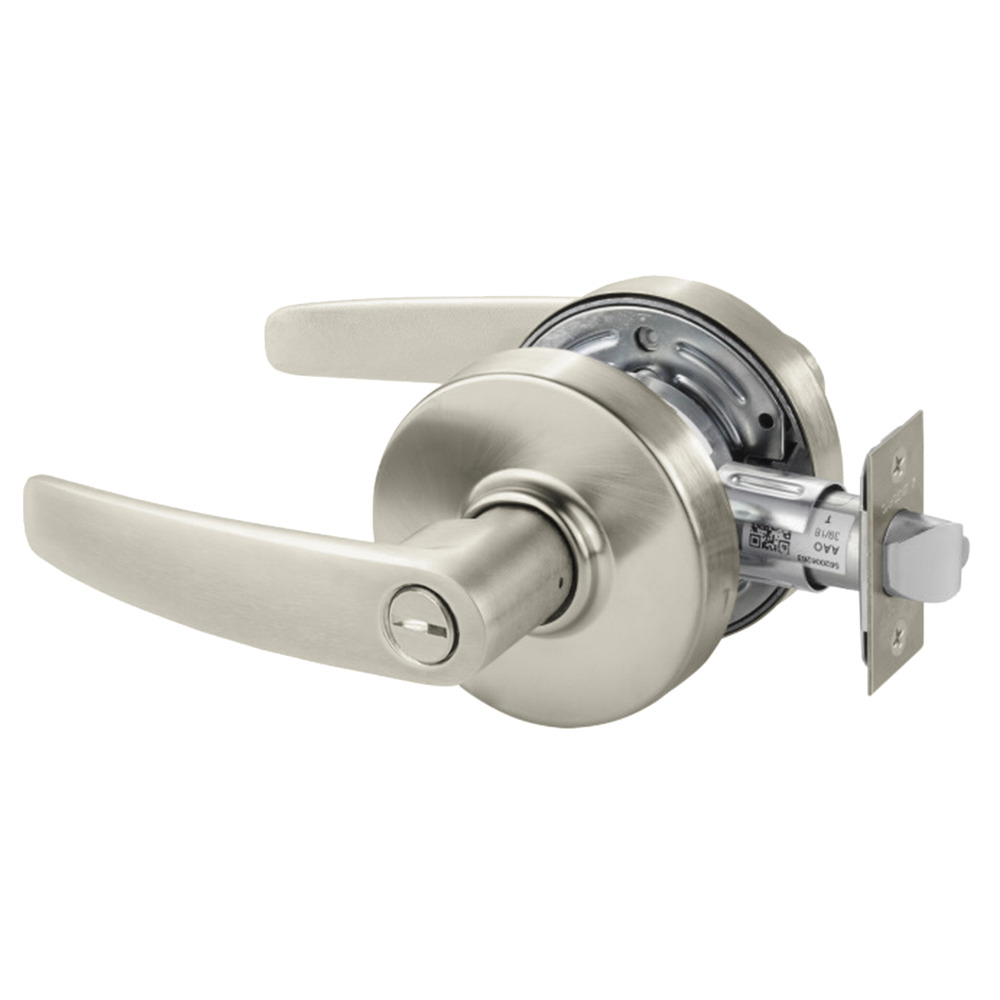

Sargent 28-7U65 LB 15 Grade 2 Cylindrical Lever offers a robust solution for privacy needs in commercial spaces. This Grade 2 privacy/bathroom cylindrical lock features the B lever design, delivering both aesthetic appeal and functional reliability. Finished in satin nickel, it ensures a modern look while being non-handed for easy installation on standard duty interior and exterior doors. Designed to exceed ANSI/BHMA A156.2 standards for cycling and durability, this lock is ideal for a variety of applications, including medical offices, hotels, and public buildings. Its solid construction includes a steel cylindrical housing and a brass 6-pin cylinder, allowing for master keying options. The lock accommodates doors up to 1-3/4 inches thick and is available with a standard 2-3/4 inch backset. Featuring a 1/2-inch throw latch and provided with two nickel silver keys, the Sargent 28-7U65 is built for security and ease of use. Additionally, its fire rating of 3 hours enhances safety in critical environments. With a limited 5-year warranty, this lock exemplifies quality craftsmanship and reliability, making it a smart choice for building professionals and knowledgeable homeowners alike.
Grade 2 Privacy/Bathroom Cylindrical Lock, B Lever, Non-Keyed, Satin Nickel Finish, Non-handed
A key-in-lever lock designed for standard duty commercial interior and exterior applications in public buildings, medical offices, hotels/motels and government facilities. Exceeds ANSI/BHMA A156.2 standards for cycling and durability.
Sargent's 7 Line Bored Lever Locks are designed with a solid feel and a precise lever action.
A key-in-lever lock designed for standard duty commercial exterior and interior doors in offices, commercial interiors, medical clinics, government facilities and public buildings. Exceeds ANSI/BHMA A156.2 Standards for cycling and durability.
Attributes
Ansi: F76
Ansi Function: F76 - Privacy
Baa Qualified: Yes
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4-1/4"
Box Width Fraction: 6-7/8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Door Thickness: 1-3/4"
Dust Box: None
Finish: 619/US15
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 65-Privacy Bathroom
Function Family: Privacy
Grade: Grade 2
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 7/8"
Lever Knob: Lever
Lever Knob Design Name: B
Leverknob Design: B Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 5 Year Warranty
Lock Face Size: 1-1/8 x 2-1/4"
Manufacturer Function: Privacy/Bathroom
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/4"
Origin: United States
Pack Height: 4.25"
Pack Height 2: 9"
Pack Length: 8.25"
Pack Length 2: 20.75"
Pack Qty: 1
Pack Volume: 241.05 in³
Pack Volume 2: 2801.25 in³
Pack Width: 6.88"
Pack Width 2: 15"
Product Height: 4.25"
Product Length: 8.25"
Product Width: 6.88"
Projection: 2-1/2"
Rose Escutcheon: Rose
Roseescutcheon Design: 3-3/8" Rose Diameter
Roseescutcheon Dimensions: 3-3/8"
Screws: Wood/Machine Screws
Series: 7-Line Bored Lever Locks
Ship Weight: 3.6 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 194493
Std Latch Type: Springlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 2, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 10
