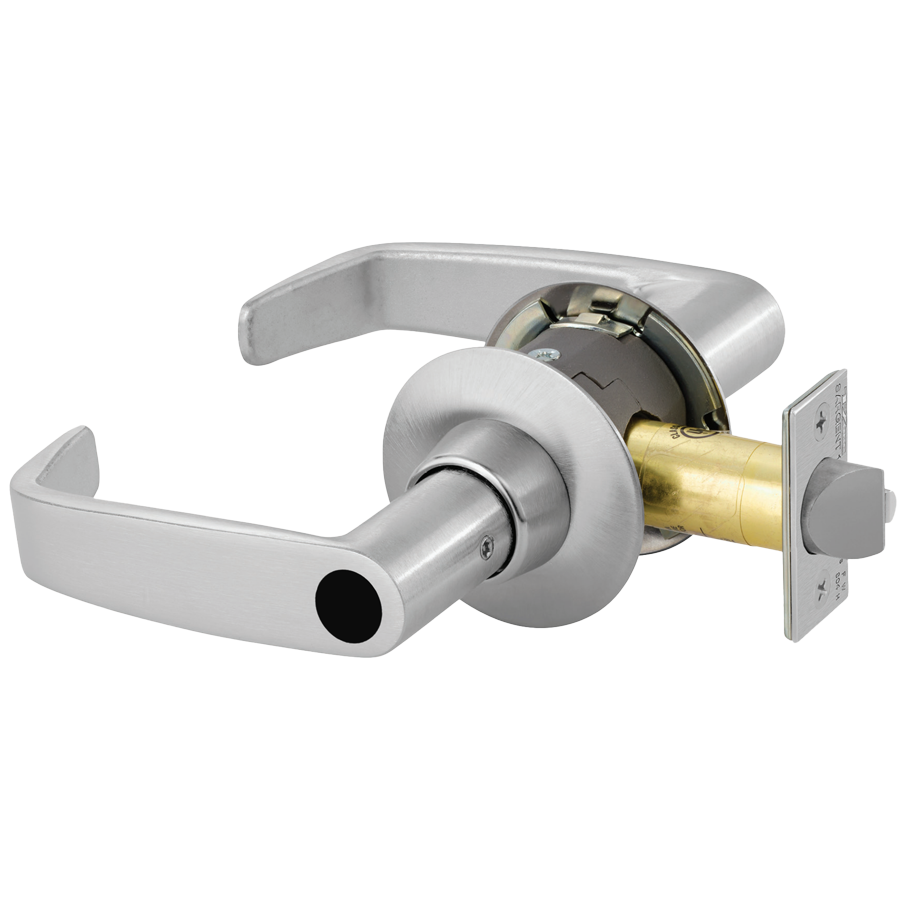

Sargent 2811G05LL26D Entry Office Tubular Bored Lock Grade 1 features a robust design, ensuring exceptional security for commercial spaces. This lockset is equipped with a sleek L Lever and L Rose, finished in a modern Satin Chrome, providing both aesthetic appeal and durability. Its modular design allows for easy field modifications, enabling quick changes to functions as needed. Designed to fit standard 161 door preparations, this lock is non-handed and versatile, accommodating door thicknesses from 1-3/4" to 2". The 2-3/4" backset and 2-1/8" crossbore size make installation straightforward. Featuring an LA Keyway, it integrates seamlessly into existing key systems, including SARGENT’s proprietary systems as well as SFIC and LFIC options, enhancing your facility's security architecture. With an impressive UL Cycle test rating of over 7.6 million cycles, this lockset guarantees long-lasting performance. The ASA strike ensures a secure fit, while the latch faceplate measures 1-1/8" x 2-1/4", providing a reliable locking mechanism. Backed by a 10-year limited warranty, the Sargent 2811G05LL26D is a trusted choice for enhancing security in office environments, making it essential for building professionals and discerning homeowners alike.
SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.
Attributes
Alternate Codes: 11G05LL26D, 124901
Ansi: F81
Ansi Function: F81 - Office
Ansi Function Description: Apartment/Corridor
Application: CM
Baa Qualified: Yes
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bolt Protection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4-1/4"
Box Width Fraction: 7-1/8"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Clazz: SG
Color: Satin Chrome
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: United States
Crossbore Size: 2-1/8" Bore
Cylinder Included: Yes
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Design: L Lever and L Rose
Dimension: 4-15/16" Lever with 2-3/4" Projection, and 3-1/2" Rose
Door Application: Cylindrical Levers
Door Bore Size: 2-1/8"
Door Range: 1-3/4" to 2"
Door Thickness: 1-3/4" - 2"
Door Thickness Max: 2"
Door Thickness Min: 1-3/4"
Dust Box: None
Finish: Satin Chrome
Finish Code: 26D
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 05-Entrance or Office
Function Family: Entrance/Office
Grade: Grade 1
Hand: Not Handed
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Item Class Description: Office Tubular Bored Lock Grade 1 with L Lever and L Rose and ASA Strike
Item Type Keyword: Tubular
Keying: Keyed Different
Keys: Cut
Keyway: LA
Knob/ Lever Design: L
Knob/ Lever Style: Lever
Latch Backset Dim: 2-3/4"
Latch Bolt Faceplate Size: 2-3/4" x 1-1/4"
Latch Bolt Throw: 1/2"
Latch Bolt Type: Deadlatch
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: 11-2106
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: L - Lever
Lever Knob Design Family: Straight Return Lever
Lever Knob Design Name: L
Lever Style: Angled Return Lever
Leverknob Design: L Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year
Lock Category: Cylindrical Lock
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Entrance/Office
Manufacturer Function Description: Operated by deadlocking latch, latchbolt by leither lever unless outside lever is locked by turn button in inside lever, turn button must be released manually, key only retracts latchbolt when outside lever is locked.
Manufacturer Warranty: 10 Year Limited Warranty
Material: Zinc
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
No Of Inners: 1
No Of Pins: 6 Pin Keyway
Num Of Keys: 2
Num Pins: 6
Number Of Inners: 1
Number Of Pins: 6 Pin Keyway
Of Keys: 2
Order_ Qty: 1
Origin: United States
Pack Height: 4.25"
Pack Height 2: 9"
Pack Length: 8.25"
Pack Length 2: 20.75"
Pack Qty: 1
Pack Volume: 249.82 in³
Pack Volume 2: 2801.25 in³
Pack Width: 7.13"
Pack Width 2: 15"
Pins: 6
Product Height: 4.25"
Product Length: 8.25"
Product Width: 7.13"
Projection: 2-3/4"
Rose Escutcheon: Rose
Rose Escutcheon Design: L - Rose
Rose Escutcheon Dimensions: 3-1/2"
Rose/ Escutcheon Size: 3-1/2"
Rose/ Escutcheon Style: Rose
Roseescutcheon Design: L Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Combination
Series: 11 Line Series
Ship Weight: 4.2 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 11-2106
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 808
Strike Size: 2-1/4" x 1-1/8"
Strike Type: ASA
Strike Width: 1-1/4"
Structure Cylinder: *
Structure Function: G05
Structure Latch Number: 11-2106
Structure Outside Finish: US26D
Structure Outside Rose: L
Structure Outside Trim: L
Structure Series: 11Line
Structure Strike Number: 808
Subcategory: Cylindrical Locksets
Subtype: Tubular
Supplier: Sargent
Type: Mechanical Commercial Locksets
Ul Listing: ANSI A156.2, Series 4000, Grade 1, UL Listed
Ul Listing Type: UL and cUL 3 Hour Fire Rating
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 10
