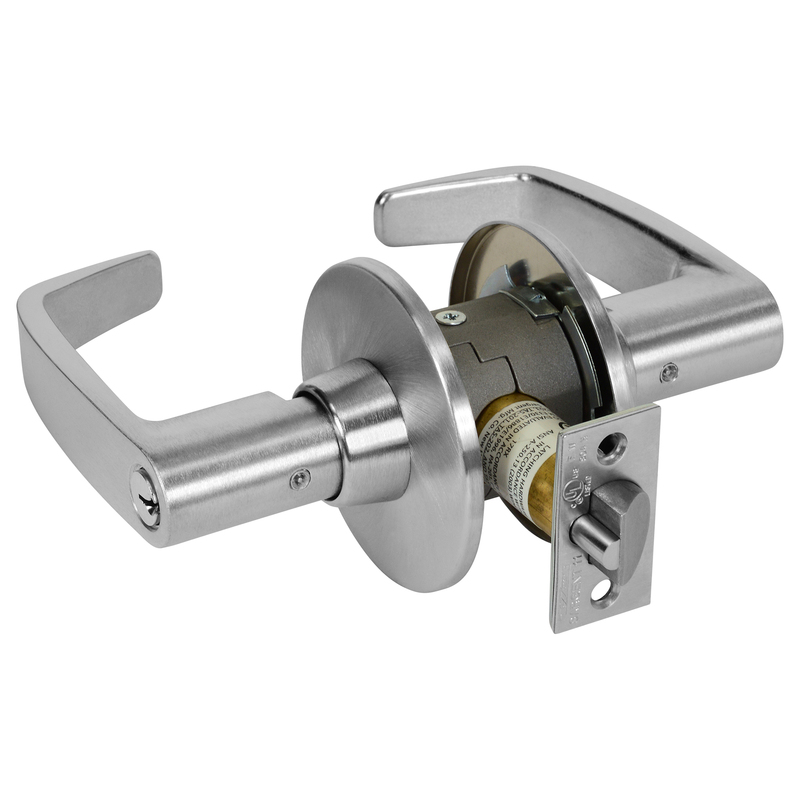

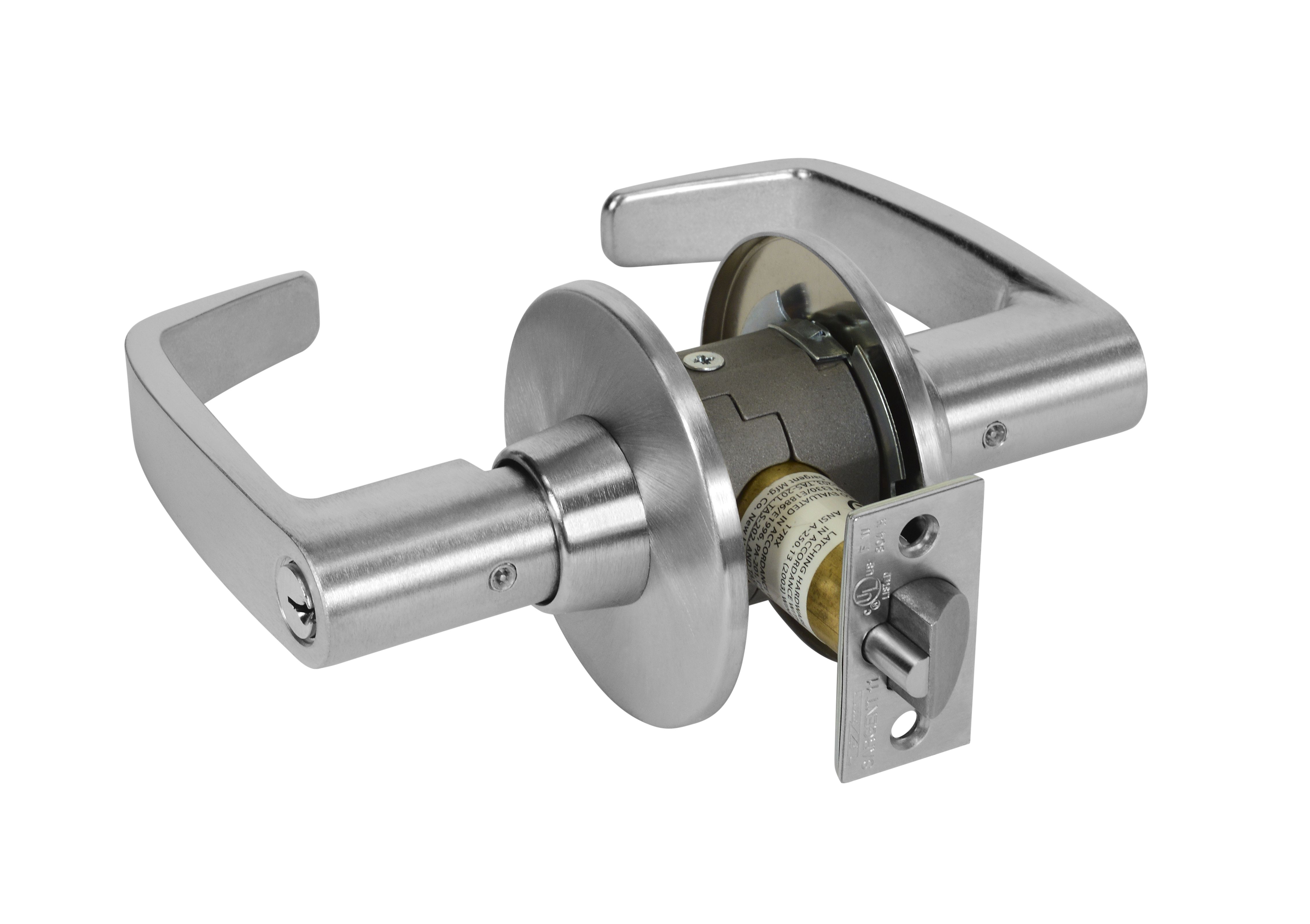

Sargent 2811G37LL26D Classroom Tubular Bored Lock Grade 1 offers a reliable security solution tailored for educational and commercial environments. This robust lockset features a modular design, enabling easy function changes in the field, ensuring adaptability to various security needs. It integrates seamlessly with existing facility key systems, accommodating SARGENT’s Degree® and Signature systems, along with SFIC and Schlage® and Medeco® LFIC options. Built to endure, this lockset has successfully completed the UL Cycle Above and Beyond test, surpassing 7.6 million cycles (Verification ID: V584148), demonstrating exceptional durability. The Sargent 2811G37LL26D fits standard 161 door preparations and is non-handed, facilitating straightforward installation on doors ranging from 1-3/4" to 2" thick. The lock features a satin chrome finish that not only enhances its aesthetic appeal but also provides resistance to wear and corrosion. Designed with convenience in mind, it allows simple cylinder removal and comes with a 10-year limited warranty for peace of mind. The L lever and L rose design, along with the ASA strike, further contribute to its functional elegance. Choose the Sargent 2811G37LL26D for reliable security that meets the demands of modern architectural applications.
SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.
Attributes
Alternate Codes: 11G37LL26D, 124902
Ansi: F84
Ansi Function: F84 - Classroom
Application: CM
Baa Qualified: Yes
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bolt Protection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4-1/4"
Box Width Fraction: 7-1/8"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Clazz: SG
Color: Satin Chrome
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: United States
Crossbore Size: 2-1/8" Bore
Cylinder Included: Yes
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Design: L Lever and L Rose
Dimension: 4-15/16" Lever with 2-3/4" Projection, and 3-1/2" Rose
Door Application: Cylindrical Levers
Door Bore Size: 2-1/8"
Door Range: 1-3/4" to 2"
Door Thickness: 1-3/4" - 2"
Door Thickness Max: 2"
Door Thickness Min: 1-3/4"
Dust Box: None
Finish: Satin Chrome
Finish Code: 26D
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 37-Classroom
Function Family: Classroom
Grade: Grade 1
Hand: Not Handed
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Item Class Description: Classroom Bored Lock Grade 1 with L Lever and L Rose and ASA Strike
Item Type Keyword: Tubular
Keying: Keyed Different
Keys: Cut
Keyway: LA
Knob/ Lever Design: L
Knob/ Lever Style: Lever
Latch Backset Dim: 2-3/4"
Latch Bolt Faceplate Size: 2-3/4" x 1-1/4"
Latch Bolt Throw: 1/2"
Latch Bolt Type: Deadlatch
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: 11-2106
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: L - Lever
Lever Knob Design Name: L
Lever Style: Angled Return Lever
Leverknob Design: L Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year
Lock Category: Cylindrical Lock
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Classroom
Manufacturer Warranty: 10 Year Limited Warranty
Material: Zinc
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
No Of Inners: 1
No Of Pins: 6 Pin Keyway
Num Of Keys: 2
Num Pins: 6
Number Of Inners: 1
Number Of Pins: 6 Pin Keyway
Of Keys: 2
Order_ Qty: 1
Origin: United States
Pack Height: 4.25"
Pack Height 2: 9"
Pack Length: 8.25"
Pack Length 2: 20.75"
Pack Qty: 1
Pack Volume: 249.82 in³
Pack Volume 2: 2801.25 in³
Pack Width: 7.13"
Pack Width 2: 15"
Pins: 6
Product Height: 4.25"
Product Length: 8.25"
Product Width: 7.13"
Projection: 2-3/4"
Rose Escutcheon: Rose
Rose Escutcheon Design: L - Rose
Rose/ Escutcheon Size: 3-1/2"
Rose/ Escutcheon Style: Rose
Roseescutcheon Design: L Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Combination
Series: 11 Line Series
Ship Weight: 4.2 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 11-2106
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 808
Strike Size: 2-1/4" x 1-1/8"
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Cylindrical Locksets
Subtype: Tubular
Supplier: Sargent
Type: Mechanical Commercial Locksets
Ul Listing: ANSI A156.2, Series 4000, Grade 1, UL Listed
Ul Listing Type: UL and cUL 3 Hour Fire Rating
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 10
