Attributes

Ansi: F76

Ansi Function: F76 - Privacy

Application: Medium Duty Cylindrical

Backset: 2-3/4" Backset

Base Material: Brass, Bronze

Bolt Projection: 1/2"

Bore Hole Diameter: 2-1/8"

Box Depth Fraction: 8-1/4"

Box Height Fraction: 4-1/4"

Box Width Fraction: 7-1/8"

Burglar Rated: No

Commercial Residential: Commercial

Country of Origin: Korea

Country of origin: United States

Cylinder Type: Non-Keyed

Cylinders Present: Non-Keyed

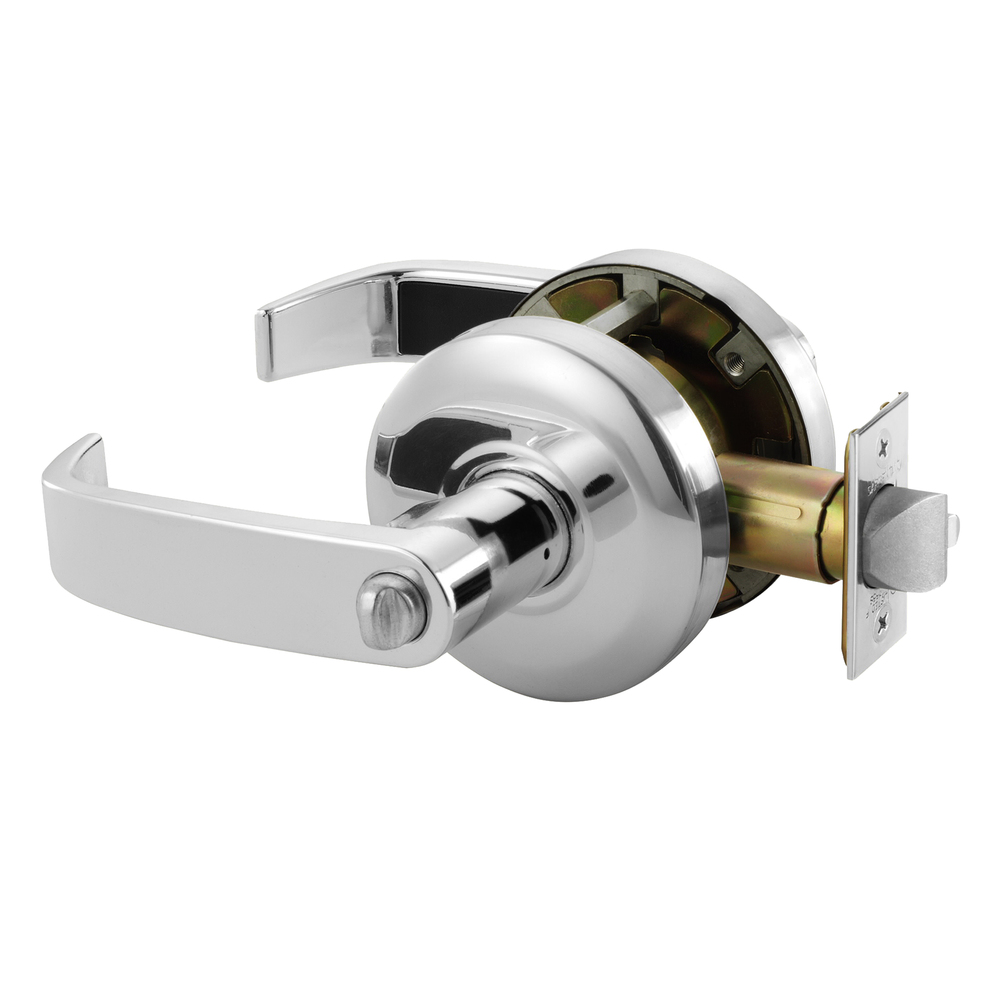

Design: L Lever and K Rose

Door Thickness: 1-3/8" to 1-3/4"

Dust Box: None

Finish: Bright Chrome

Finish Description: Bright Chrome

Finish Family: Polished Silver

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: 65-Privacy Bathroom

Function Family: Privacy

Grade: Grade 2

Handing: Non-handed

Installation: Commercial

Latch Bore Diameter: 1"

Lever Knob: Lever

Lever Knob Design Name: L

Leverknob Design: L Lever

Leverknob Design Family: Straight Return Lever

Limited Warranty: 10 Year Warranty

Lock Face Size: 1-1/8" x 2-1/4"

Manufacturer Function: Privacy/Bathroom

Maximum Door Thickness: 1-3/4"

Minimum Door Thickness: 1-3/8"

Origin: United States

Pack Height: 4.25"

Pack Height 2: 9"

Pack Length: 8.25"

Pack Length 2: 20.75"

Pack Qty: 1

Pack Volume: 249.82 in³

Pack Volume 2: 2801.25 in³

Pack Width: 7.13"

Pack Width 2: 15"

Product Height: 4.25"

Product Length: 8.25"

Product Width: 7.13"

Projection: 2-3/8"

Rose Escutcheon: Rose

Roseescutcheon Design: 3-3/8" Rose Diameter

Roseescutcheon Dimensions: 3-3/8"

Screws: Wood/Machine Screws

Series: 6500 Series

Ship Weight: 4.2 lbs.

Std Latch Backset Dim: 2-3/4"

Std Latch Number: 103486

Std Latch Type: Springlatch

Std Strike Height: 4-7/8"

Std Strike Number: 808

Std Strike Type: ANSI Curved Lip Strike

Std Strike Width: 1-1/4"

Strike: ASA Strike

Strike Dimensions: 1-1/4" x 4-7/8"

Subtype: Cylindrical

Type: Mechanical Commercial Locksets

Ul Listing: ANSI A156.2, Series 4000, Grade 2, UL Listed

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 10
