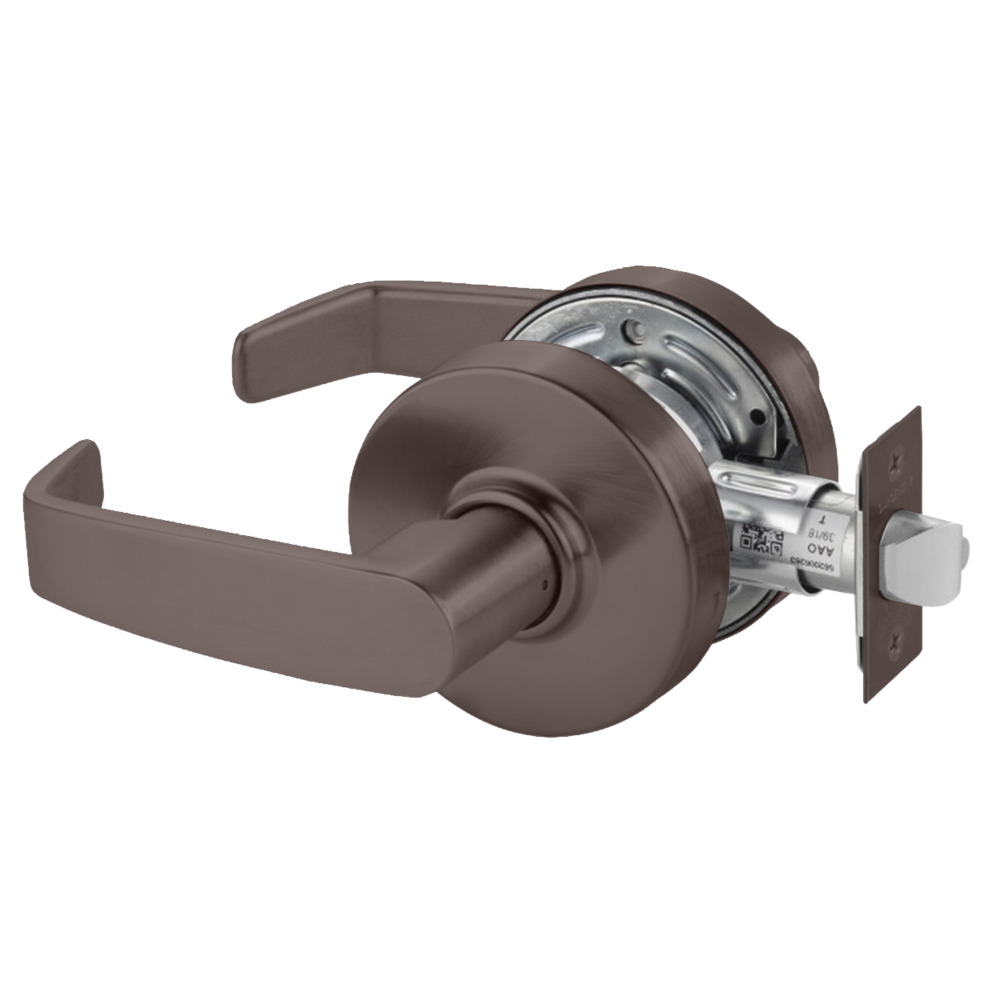

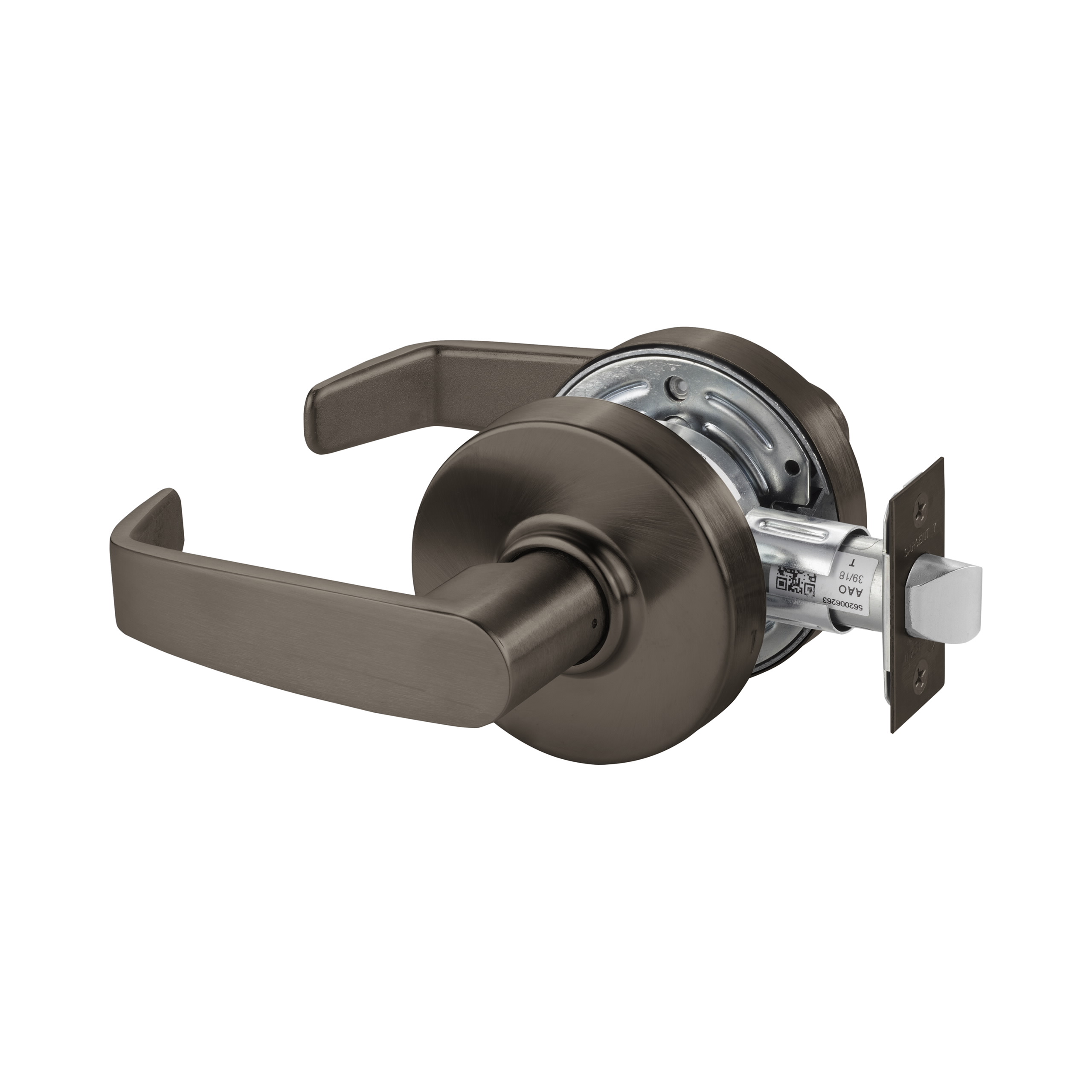

Sargent 287U15LL10B Passage Cylindrical Lock Grade 2 combines durability with an elegant design, ideal for a variety of settings including commercial, industrial, and educational buildings. This lock features a user-friendly L lever and L rose design, finished in a sophisticated oil-rubbed bronze that enhances any entryway. Designed for convenience, the Sargent 287U installs in one minute or less, complete with clear packaging and instructions. It is equipped with a 2-3/4" backset and is reversible for easy handing, accommodating door thicknesses ranging from 1-3/8" to 1-3/4". The lock's 2-1/8" crossbore size and internal through-bolts minimize additional door preparation, making it an efficient upgrade for retrofit applications. With a robust zinc construction and a 5" lever that projects 2-1/2", this lock not only provides a solid feel but also ensures longevity and reliability. The included ASA strike features a dimension of 4-7/8" with a 1-1/4" lip, further enhancing its function. Backed by a 5-year limited warranty, the Sargent 287U is UL and cUL listed with a 3-hour fire rating, making it a secure choice for any entryway.
SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.
Attributes
Ansi: F75
Ansi Function: F75 - Passage
Baa Qualified: Yes
Backset: 2-3/4" Backset
Base Material: Bronze
Bolt Projection: 1/2"
Bolt Protection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4-1/4"
Box Width Fraction: 6-7/8"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: United States
Crossbore Size: 2-1/8" Bore
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Design: L Lever and L Rose
Dimension: 5" Lever with 2-1/2" Projection, and 3-3/8" Rose
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8" - 1-3/4"
Dust Box: None
Finish: Oil Rubbed Bronze
Finish Code: 10B
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Finish Family: Dark Bronze
Fire Rated: No
Fire Rating: 3 Hours {A}
Function: 15-Passage
Function Family: Passage
Grade: Grade 2
Hand: Not Handed
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Backset Dim: 2-3/4"
Latch Bore Diameter: 7/8"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: 07-2428
Latch Type: Spring Latch (Unguarded)
Lever Knob: Lever
Lever Knob Design: L - Lever
Lever Knob Design Name: L
Leverknob Design: L Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 5 Year Warranty
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Passage
Manufacturer Warranty: 5 Year Limited Warranty
Material: Zinc
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/4"
No Of Inners: 1
Order_ Qty: 1
Origin: United States
Pack Height: 4.25"
Pack Height 2: 9"
Pack Length: 8.25"
Pack Length 2: 20.75"
Pack Qty: 1
Pack Volume: 241.05 in³
Pack Volume 2: 2801.25 in³
Pack Width: 6.88"
Pack Width 2: 15"
Product Height: 4.25"
Product Length: 8.25"
Product Width: 6.88"
Projection: 2-1/2"
Rose Escutcheon: Rose
Rose Escutcheon Design: L - Rose
Roseescutcheon Design: 3-3/8" Rose Diameter
Roseescutcheon Dimensions: 3-3/8"
Screws: Combination
Series: 7 Line Series
Ship Weight: 3.6 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 194493
Std Latch Type: Springlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 808
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Cylindrical Locksets
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
Ul Listing: ANSI A156.2, Series 4000, Grade 2, UL Listed
Ul Listing Type: UL and cUL 3 Hour Fire Rating
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 10
