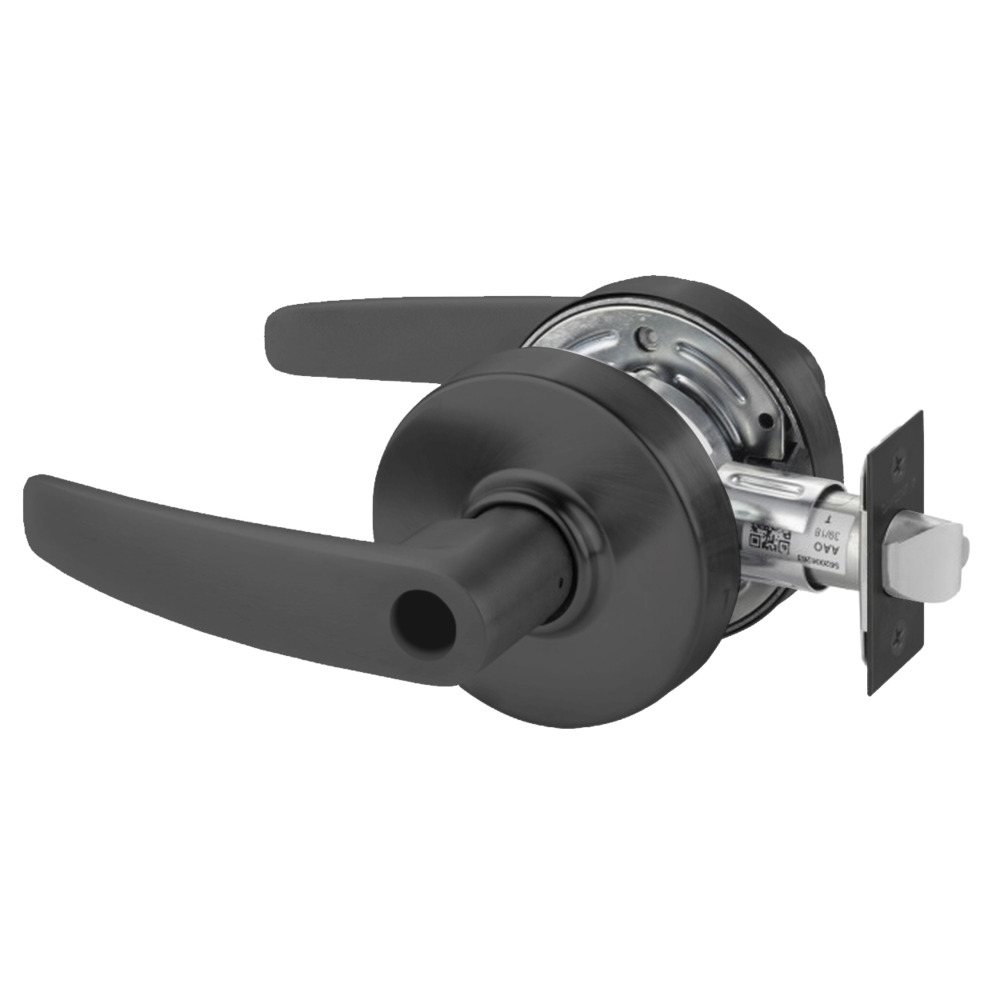

Sargent 28LC-7G04 LB BSP Grade 2 Cylindrical Lever is a robust locking solution designed for storerooms and closets. This Grade 2 lock features a sleek Black Suede Finish and a B Lever design, providing both functionality and aesthetic appeal. Crafted for standard duty commercial use, it excels in public buildings, medical offices, hotels, and government facilities, effectively meeting the demands of high-traffic environments. With a non-handed installation, this cylindrical lock accommodates 1-3/4" thick doors and offers a 2-3/4" backset standard, ensuring versatility in various applications. The lock's durable steel housing, treated with a zinc dichromate finish, guarantees longevity, while the 1/2" throw latch adds an extra layer of security. It exceeds ANSI/BHMA A156.2 standards for cycling and durability, making it a reliable choice for everyday use. The Sargent 28LC-7G04 is equipped with a 6-pin brass cylinder that can be master keyed, providing flexibility for complex security needs. It comes with two nickel silver keys and is UL Listed for safety and performance. This lock not only enhances security but also showcases quality craftsmanship, making it an ideal choice for building professionals and discerning homeowners alike.
Grade 2 Storeroom/Closet Cylindrical Lock, B Lever, Conventional Less Cylinder, Black Suede Finish, Non-handed
A key-in-lever lock designed for standard duty commercial interior and exterior applications in public buildings, medical offices, hotels/motels and government facilities. Exceeds ANSI/BHMA A156.2 standards for cycling and durability.
Sargent's 7 Line Bored Lever Locks are designed with a solid feel and a precise lever action.
A key-in-lever lock designed for standard duty commercial exterior and interior doors in offices, commercial interiors, medical clinics, government facilities and public buildings. Exceeds ANSI/BHMA A156.2 Standards for cycling and durability.
Attributes
Ansi: F86
Ansi Function: F86 - Storeroom
Base Material: Steel
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4-1/4"
Box Width Fraction: 6-7/8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Less Cylinder
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4"
Finish: BSP
Finish Family: Black
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 04-Storeroom or Closet
Function Family: Storeroom
Grade: Grade 2
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 7/8"
Lever Knob: Lever
Lever Knob Design Name: B
Leverknob Design: B Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 5 Year Warranty
Lock Face Size: 1-1/8 x 2-1/4"
Manufacturer Function: Storeroom/Closet
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/4"
Origin: United States
Pack Height: 4.25"
Pack Height 2: 9"
Pack Length: 8.25"
Pack Length 2: 20.75"
Pack Qty: 1
Pack Volume: 241.05 in³
Pack Volume 2: 2801.25 in³
Pack Width: 6.88"
Pack Width 2: 15"
Pins: 6
Product Height: 4.25"
Product Length: 8.25"
Product Width: 6.88"
Projection: 2-1/2"
Rose Escutcheon: Rose
Roseescutcheon Design: 3-3/8" Rose Diameter
Roseescutcheon Dimensions: 3-3/8"
Screws: Wood/Machine Screws
Series: 7-Line Bored Lever Locks
Ship Weight: 3.6 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 193762
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 2, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 10
