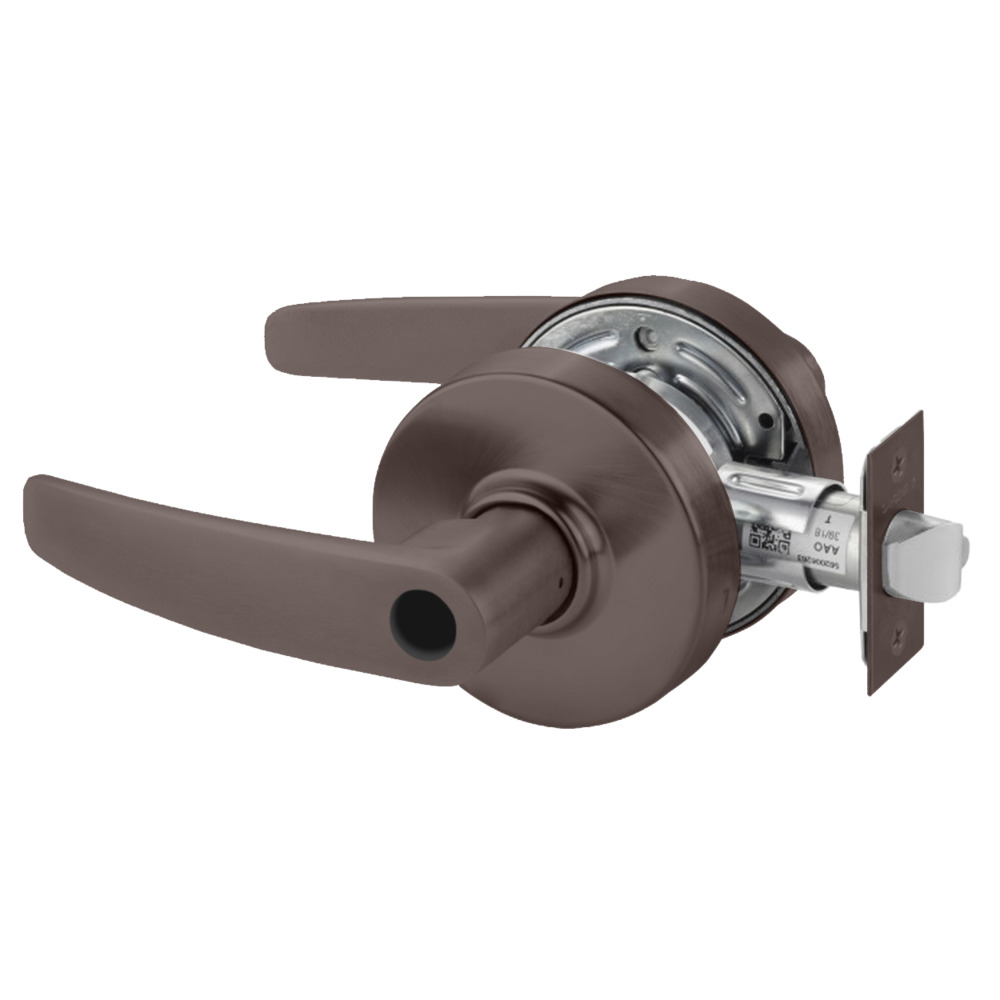

A key-in-lever lock designed for standard duty commercial interior and exterior applications in public buildings, medical offices, hotels/motels and government facilities. Exceeds ANSI/BHMA A156.2 standards for cycling and durability
Attributes
Ansi: F109
Ansi Function: F81 - Office
Ansi Function Description: Entry/Office
Baa Qualified: Yes
Backset: 2-3/4" Backset
Base Material: Bronze
Bolt Projection: 1/2"
Bolt Protection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4-1/4"
Box Width Fraction: 6-7/8"
Burglar Rated: No
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: United States
Cylinder Type: Less Cylinder
Cylinders Present: Single Cylinder
Design: B Lever and L Rose
Door Thickness: 1-3/8" - 1-3/4"
Dust Box: None
Finish: 613/US10B
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Finish Family: Dark Bronze
Fire Rated: No
Fire Rating: 3 Hours {A}
Function: 05-Entrance or Office
Function Family: Entrance/Office
Grade: Grade 2
Hand: Not Handed
Handing: Non-handed
Installation: Commercial
Latch Backset Dim: 2-3/4"
Latch Bore Diameter: 7/8"
Latch Number: 07-2430
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: B - Lever
Lever Knob Design Family: Curved Lever
Lever Knob Design Name: B
Leverknob Design: B Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 5 Year Warranty
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Entrance/Office
Manufacturer Function Description: Operated by deadlocking latch, latch by either lever unless outside lever is locked by push/turn button in inside lever, push button released by key outside or lever inside, turn button must be released manually, key retracts latch when outside lever is locked.
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/4"
Num Pins: 6
Origin: United States
Pack Height: 4.25"
Pack Height 2: 9"
Pack Length: 8.25"
Pack Length 2: 20.75"
Pack Qty: 1
Pack Volume: 241.05 in³
Pack Volume 2: 2801.25 in³
Pack Width: 6.88"
Pack Width 2: 15"
Pins: 6
Product Height: 4.25"
Product Length: 8.25"
Product Width: 6.88"
Projection: 2-1/2"
Rose Escutcheon: Rose
Rose Escutcheon Design: L - Rose
Rose Escutcheon Dimensions: 3-3/8"
Roseescutcheon Design: 3-3/8" Rose Diameter
Roseescutcheon Dimensions: 3-3/8"
Screws: Combination
Series: 7-Line Bored Lever Locks
Ship Weight: 3.6 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 193762
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ASA Strike
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 808
Strike Type: ASA
Strike Width: 1-1/4"
Structure Cylinder: LC
Structure Function: G05
Structure Latch Number: 193762
Structure Outside Finish: US10B
Structure Outside Trim: B
Structure Series: 7Line
Structure Strike Number: 808
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 2, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 10
