• Benefits:
• Flexible: Available in all Sargent cylinder formats.
• Enhanced Security: Features: a factory-master keying system design.
• Customizable: Offered in a wide variety of Finishes:.
• Convenient: Available in mortise; rim; key-in knob and lever; and, large and small format removable core cylinders.
• Certification:
• Cylinders BHMA A156.5 Grade 1 (except hotel Functions:)
• Technical Information:
• 6 Pin: 2-3/8" to 3-1/4"(60mm to 82mm) Door thickness when used without outside trim
• 7 Pin: 2-1/2" to 3-1/2"(64mm to 89mm) Door thickness when used without outside trim
• 27/32"(21mm) screw pattern for through-bolted Sargent exit devices

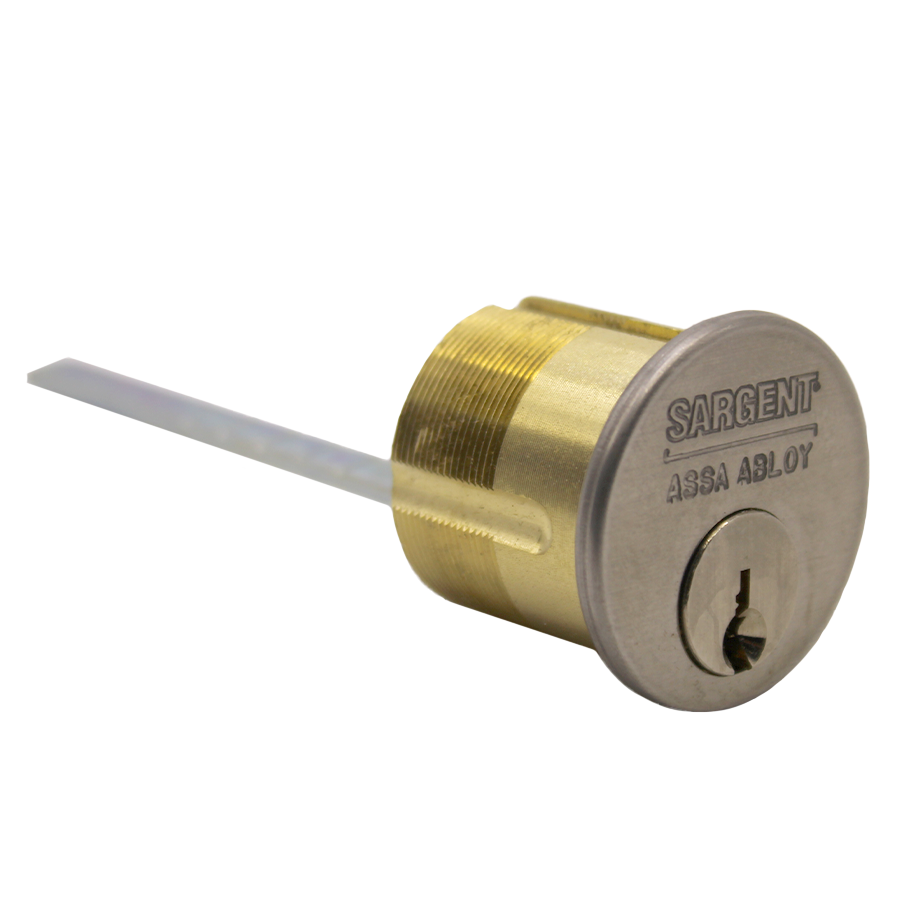

• Cylinder: Solid brass
• Cap: Brass, bronze or stainless steel
• Furnished standard with No.97 rosette and compression spring, "break-off" screws and back plate
• 6 Pin standard, for 7 Pin specify (7 pin)
• Horizontal tail piece only
• Cylinder Finishes: 3, 4, 9, 10, 10B, 10BE, 10BL, 15, 20D, 32, 32D or BSP
• Plug Finishes: 4 or 15

Features

• Cap: Brass, bronze or stainless steel
• Horizontal tail piece only
• Plug finishes: 4, 15
• 27/32" (21mm) screw pattern for through-bolted Sargent exit devices
• Door Thickness when used with outside trim: 2-3/8" to 3-1/4" (60mm to 82mm)
• Furnished standard with No. 97 rosette and compression spring, "break-off" screws and back plate
• Door Thickness when used with outside trim: 2-1/2" to 3-1/2" (64mm to 89mm)
• Cylinder finishes: 3, 4, 9, 10, 10B, 10BE, 10BL, 15, 20D, 32, 32D
• Cylinder: Solid brass
• Dim. A (Min.): 1-1/16" (27mm)
• For 7 pin specify "7 pin"
• 6 pin standard
• Dim. A (Min.): 1-7/32" (31mm)
