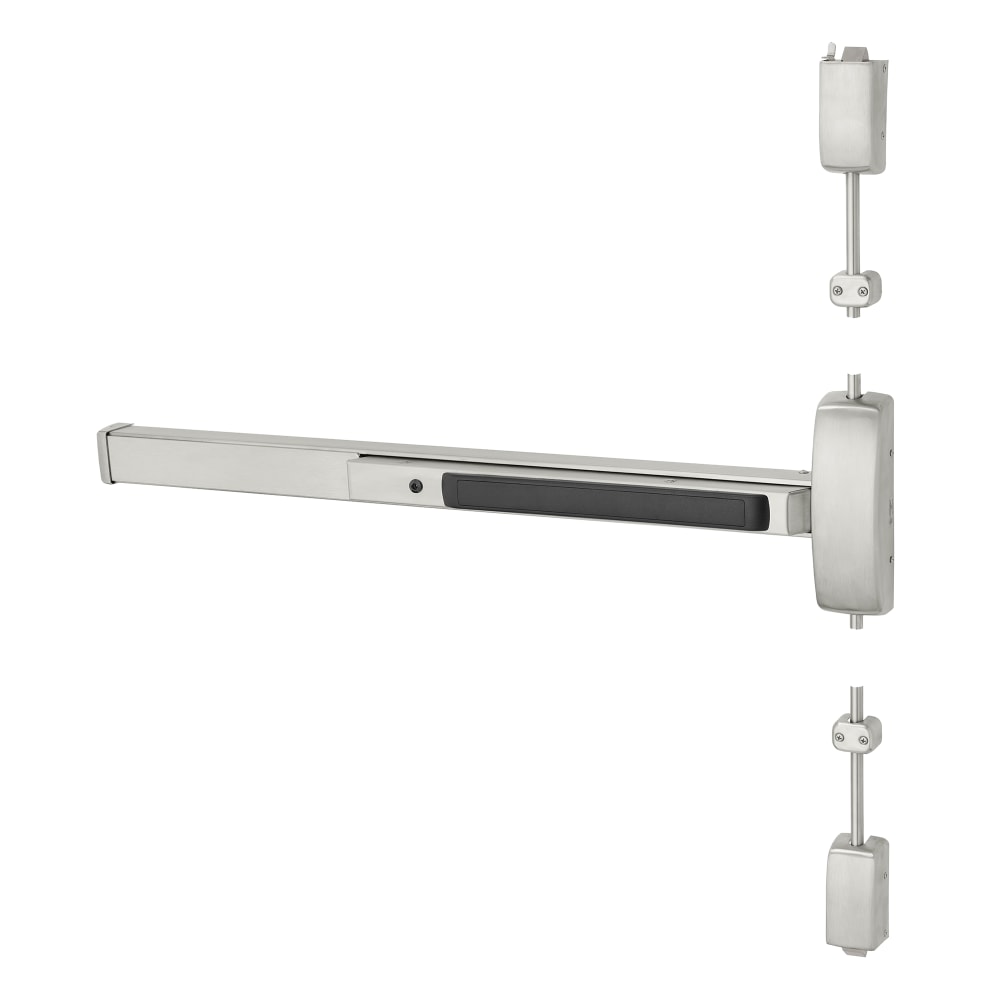

Sargent 43-8710G RHR 32D SVR Exit Device - Exit Only

Sargent 43-8710G RHR 32D SVR Exit Device, Exit Only, is a Grade 1 Surface Vertical Rod exit device designed for robust security and durability in commercial settings. Featuring a wide stile pushpad and a 48-inch device suitable for doors up to 96 inches in height, this exit device ensures reliable egress in emergency situations. The flush end cap adds a clean aesthetic, while the hex key dogging mechanism provides secure and convenient operation. Built to exceed ANSI/BHMA Grade 1 standards, the Sargent 80 Series exit devices are known for their maintenance-free modular construction, making them an excellent long-term investment for any facility. This model supports two-point latching and is adjustable through the center case, accommodating varying door widths from 43 to 48 inches without cutting, ensuring a perfect fit for your specific application. Compatible with both wood and metal doors with a thickness of 1-3/4" to 2-1/4", the Sargent 43-8710G is a versatile solution for diverse environments. Additionally, it is proudly made in the USA and comes with a five-year limited warranty, reflecting the manufacturer's commitment to quality and performance. Enhance your building's safety and accessibility with this reliable exit device.

SVR Exit Device, Exit Only

Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, 48" Device, 96" Door Height, Exit Only, Flush End Cap, Hex Key Dogging, Satin Stainless Steel Finish, Right Hand Reverse

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.

Has two point latching and is adjustable through the center case.

Part of Sargent's full line of exit devices that provide the best combination of simplicty, strength, durability, aesthetics, and innovation. The top and bottom latchbolt projection is adjustable through the center case.

• Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" to 2-1/4" specify thickness and order as a 31- prefix.  4-1/2" (114mm) minimum stile with trim and 3-1/2" (44mm) minimum stile without trim
• Door Widths:E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door

Resources

• 12-HC8700 Top Case Parts List
• 14-8700 Series Surface Vertical Rod Series Bottom Case Parts List
• 16- 816 Cylinder Dogging Kit (80 Series Exit Device) Installation Instructions
• 43-Flush End Cap Rail Cutting Installation Instructions
• 55-Signal Switch for 80 Series Installation Instructions
• 56-Electric Latch Retraction Exit Device Sell Sheet
• 565 & 665 Metal End Cap Kit Installation Instructions
• 57-Delayed Action 80 Series Exit Device Installation Instructions
• 57-Delayed Egress for 80 Series Exit Devices to ElectroLynx Connector System Installation
• 59-8700 Surface Vertical Rod Chassis Parts List
• 59-Electroguard Delayed Egress for 80 Series Exit Devices Installation Instructions
• 80 Series Brochure
• 816 Cylinder Dogging Kit Parts List
• 8600/8700/8800/8900 Wide Stile Rail Assemblies Parts List
• 8700 Series Surface Vertical Rod Exit Devices Cut Sheet
• AL- Alarmed Exit Device Installation Instructions
• Basic Fundamentals - Exit Devices
• Electric Dogging for 80 Series Installation Instructions
• Mounting 80 Series Exit Device with Glass Bead Shim Kit Installation Instructions
• NB-8700 ET Trim Template
• Thru-Bolt for 80 Series 8700,8800 and 8900 Installation Instructions
• Video: 8700 Series Surface Vertical Rod Exit Device Installation
• Windstorm Solutions - Exit Devices
