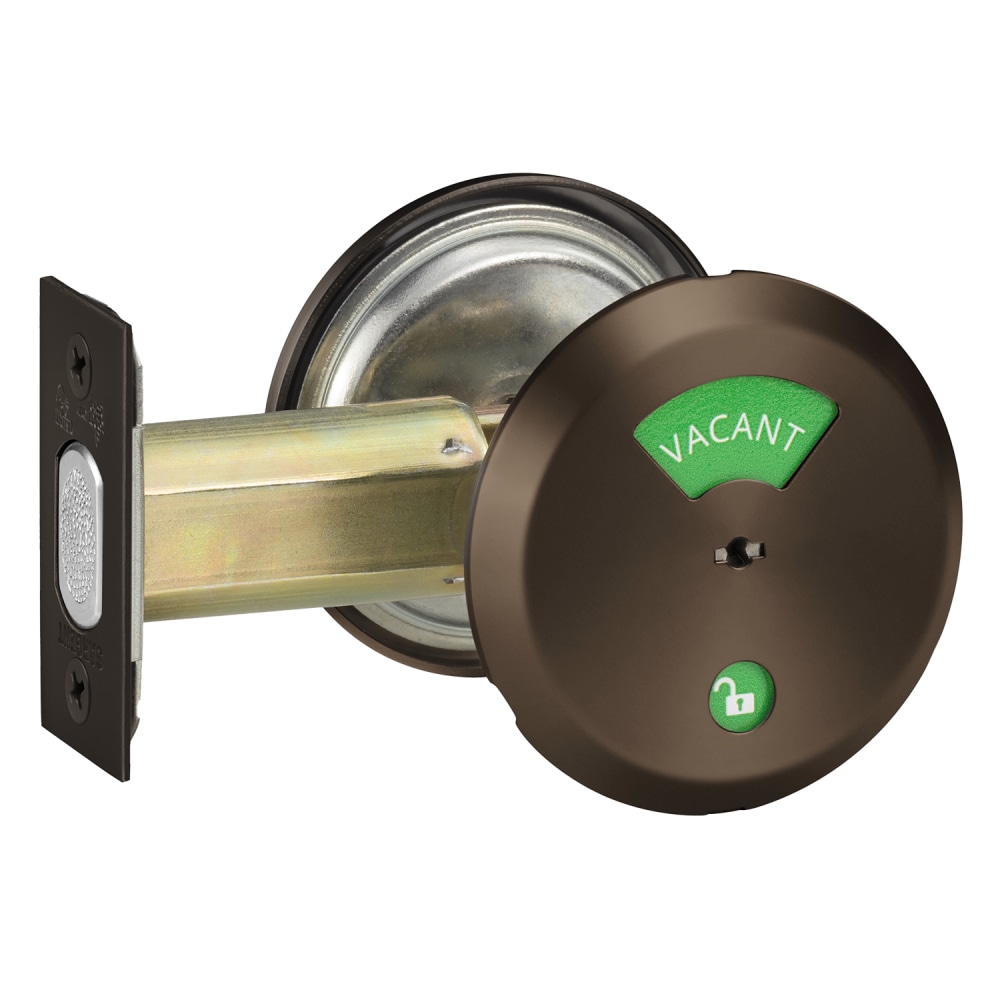

Sargent 468 10B V21 Grade 2 Indicator Deadbolt

Sargent 468 10B V21 Grade 2 Indicator Deadbolt offers a blend of security and convenience, making it an excellent choice for commercial applications. This Grade 2 deadbolt features a thumb turn x indicator function that clearly displays the status of the lock. The exterior indicator shows VACANT or OCCUPIED, while the interior indicator denotes UNLOCKED or LOCKED, utilizing a straightforward green/red color scheme. Designed for versatility, this deadbolt accommodates door thicknesses ranging from 1-3/8" to 1-3/4" and is equipped with a conventional cylinder. The 2-3/4" backset, compatible with both wood and metal strikes, ensures a seamless installation process. Finished in a dark oxidized satin bronze oil-rubbed finish, it not only enhances security but also complements a variety of door styles. The Sargent 468 is non-handed and field-reversible, providing flexibility in installation. With a robust bolt projection of 1" and six pins for added security, this model is UL 10C fire rated, ensuring safety in emergency situations. Backed by a one-year limited warranty, the Sargent 468 10B V21 Indicator Deadbolt is a reliable choice for those seeking durable and functional door hardware.

Grade 2 Indicator Deadbolt

Grade 2 Thumb Turn x Indicator Deadbolt, Conventional Cylinder, Exterior Indicator Displays VACANT/OCCUPIED, Interior Indicator Displays UNLOCKED/LOCKED, Green/Red, 2-3/4" Backset, Wood/Metal Strike, Dark Oxidized Satin Bronze Oil Rubbed Finish, Non-Handed, Field Reversible

The Sargent 460 Grade 2 Deadbolts are available with 3 functions including double cylinders, single cylinder, and thumbturn x indicator.

Resources

• 460 Series Template
• Sargent Auxiliary Locks Catalog
