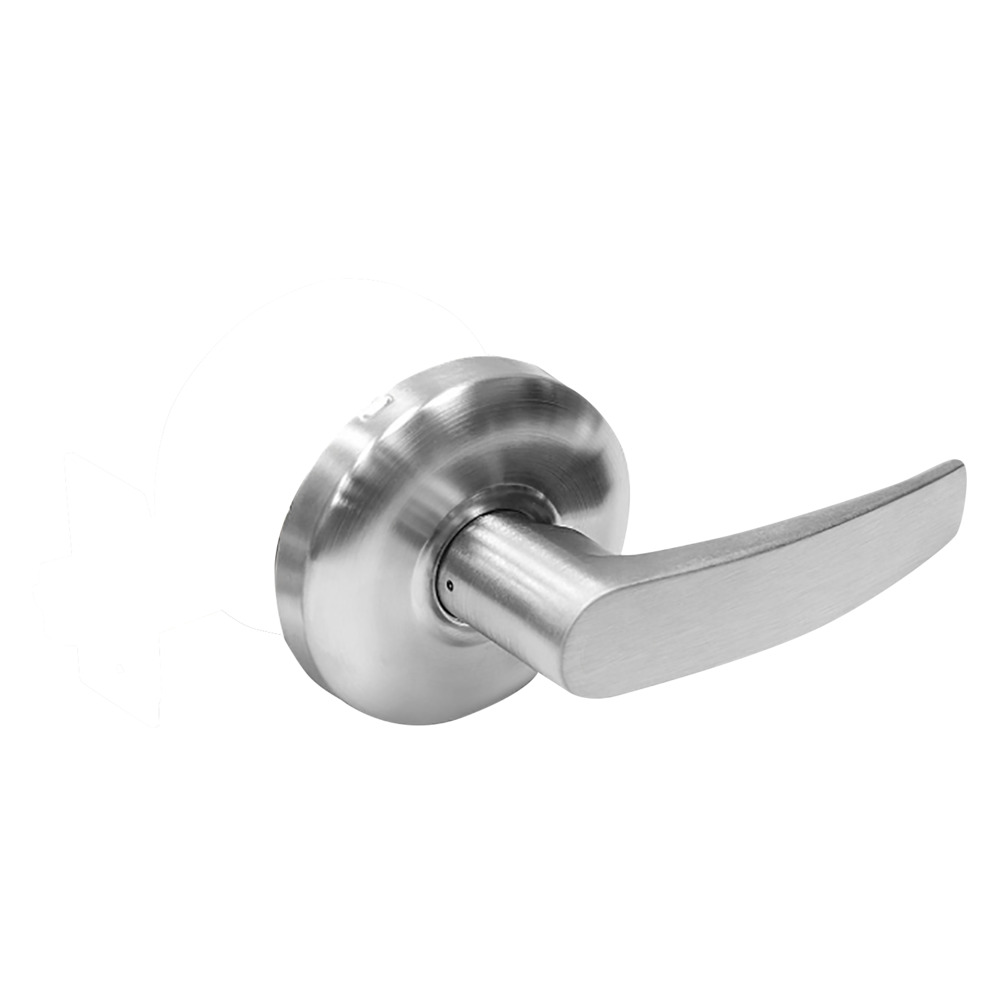

Sargent 65U94 KB 26D Grade 2 Double Dummy Trim

Sargent 65U94 KB 26D Grade 2 Double Dummy Trim offers a combination of style and functionality tailored for commercial applications. This Grade 2 double lever pull is crafted with a sleek satin chrome finish, ensuring durability and a modern aesthetic. Designed to meet the standards of ANSI A156.2 Series 4000 Grade 2, it provides reliable performance in medium-duty environments. With a non-handed design, the Sargent 65U94 accommodates door thicknesses from 1-3/8" to 1-3/4", making it versatile for various installations. The cylindrical housing features a robust steel zinc dichromate finish, while the front is constructed from high-quality wrought brass and stainless steel to enhance longevity and resistance to wear. The latch boasts a 1/2" throw, ensuring secure closure. This lock trim includes two nickel silver keys and is windstorm certified, making it an excellent choice for areas prone to harsh weather conditions. Its universal handing simplifies installation, while the 3-hour fire rating adds an extra layer of safety. With a limited 10-year warranty, the Sargent 65U94 KB 26D is not just a functional component, but a reliable investment for those looking to enhance their property’s security and accessibility.

Grade 2 Double Dummy Trim

Grade 2 Double Lever Pull, B Lever, Non-Keyed, Satin Chrome Finish, Non-handed

The SARGENT 6500 Line is a standard duty key-in-lever lock designed to exceed the requirements of ANSI A156.2 Series 4000 Grade 2.

Windstorm certified and has several function options.

• For Doors: 1-3/8" (35mm) to 1-3/4" (44mm) only
• Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional (20- Prefix)
• Cylindrical Housing: Steel zinc dichromate finish
• Front: Wrought brass and stainless steel;
• 2-1/4" (57mm) x 1-1/8"(29mm)
• Strike: 600 Curved Lip, Brass or Stainless Steel Standard, 808 ANSI Curved Lip available (28- prefix), 505 Full Lip strike available (14- prefix)
• Hand: Universal, not handed
• Latch: Brass 1/2" (13mm) throw
• Keys: Two, nickel silver
• Cylinder: Brass, 6 pin, LA keyway standard
• Finishes : 3, 4, 10, 10B, 26, 26D
• (No Split Finish)
• Door Prep: ANSI A115.2 (161) Modified
• Minimum Stile: 4-1/2" (114mm)
