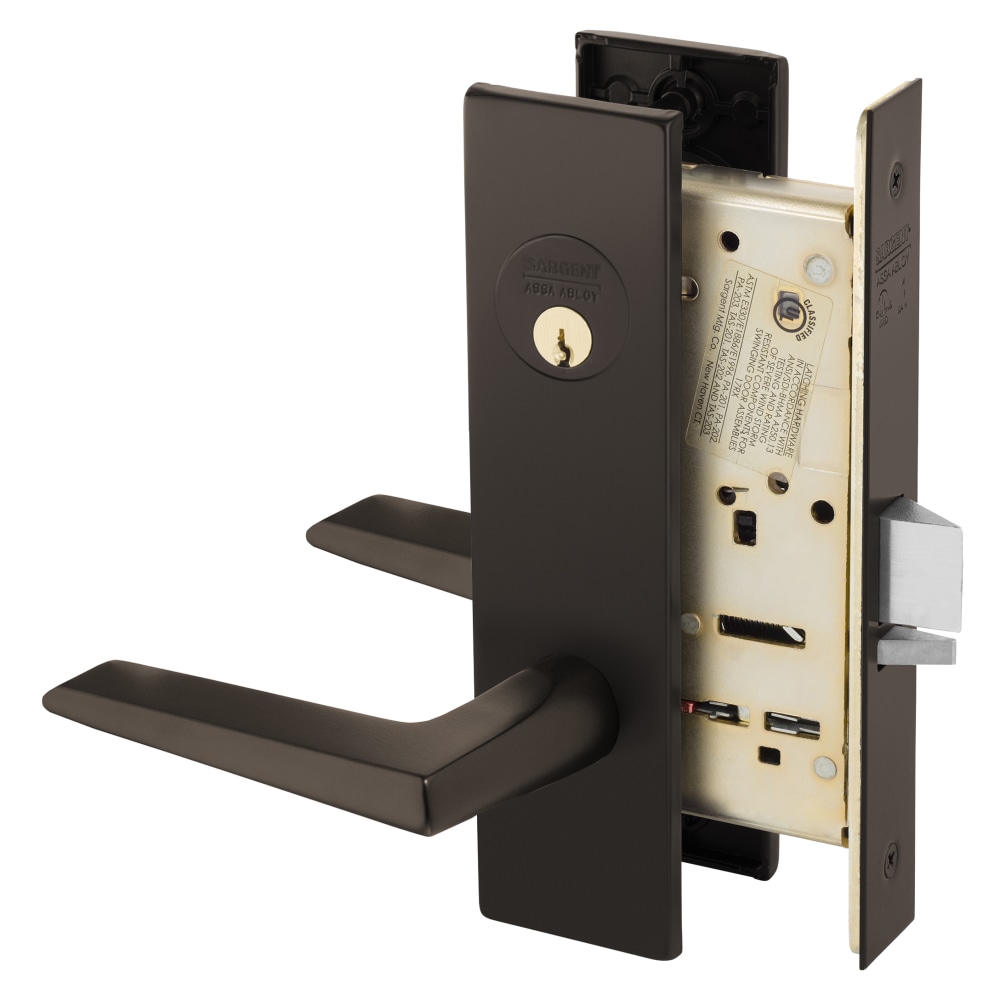

Sargent 8204 LE1F 10BE Grade 1 Storeroom Lock, No DB InstructionSargent 8204 LE1F 10BE Grade 1 Storeroom lock delivers unmatched strength and durability, setting the industry standard for mortise locks. This Grade 1 storeroom or closet lock features a field-reversible F-lever design and a LE1 escutcheon, ensuring both aesthetic appeal and functionality. With a conventional cylinder and dark oxidized bronze finish, it seamlessly integrates into various environments. Exceeding ANSI/BHMA A156.13 Series 1000 Grade 1 standards, the Sargent 8204 is the most durable mortise lock available. It boasts a UL-cUL listing for three-hour fire doors and windstorm applications, showcasing its reliability in critical situations. The robust construction includes a thru-bolted lever trim and a strengthened cylinder retainer, providing resistance against unauthorized entry and vandalism. This versatile lock is available with multiple security key systems and functions, including electromechanical and monitoring options, making it suitable for offices, hospitals, schools, and other facilities. Its ease of installation and maintenance, along with a 10-year warranty, make it an ideal choice for building professionals and discerning homeowners alike. Choose the Sargent 8204 LE1F 10BE for maximum security, flexibility, and a design that complements any architectural style.
Grade 1 Storeroom, No DB
Grade 1 Storeroom or Closet Mortise Lock, F - Lever, LE1 - Escutcheon, Field Reversible, Conventional Cylinder, ASA Strike, Dark Oxidized Bronze
When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability
Constructed with the highest quality components to provide maximum security, durability and performance.
Considered the industry benchmark for all mortise locks on the market today, the robust lock is an attractive solution with a multitude of lever and escutcheon styles available.
Features:
- ANSI/BHMA Grade 2 certified for cycle and strength requirements
- UL-cUL listed for three-hour fire doors and windstorm applications
- Thru-bolted lever trim and strengthened cylinder retainer
- Available with security key systems (Degree, Signature, KESO, and XC)
- Available in 58 different functions, including electromechanical, security (freewheeling, security escutcheon, anti-vandal pull trim) and monitoring
- 6 lever designs, 2 roses/escutcheons designs, and 14 architectural finishes offered
- Available with behavioral health trim
- 10-year warranty
- Patented design and construction
Benefits:
- Strength & Reliability: Exceeds independent testing, making it the most durable mortise lock in the industry.
- Security: Security features provide resistance against unauthorized entry and vandalism.
- Flexibility & Aesthetics: Visual design with a variety of functions, lever designs and architectural finishes match a wide range of styles and make it perfect for all types of applications (such as offices, hospitals, behavioral health environments, schools/universities).
- Ease of Installation & Maintenance: Multifunctional lockbody makes switching functions easy and reduces inventory requirements.
Attributes
Ansi Function: F07 - Storeroom/Exit
Baa Qualified: Yes
Bolt Projection: 3/4 In. Latch
Country of origin: USA
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/4 In.
Finish: 613E/US10BE
Fire Rated: 2 Hours {B}
Fire Rating: 2 Hours {B}
Function: 04-Storeroom or Closet
Grade: Grade 1
Handing: Field Reversible
Keying: Keyed Different
Keys: Cut
Leverknob Design: F - Lever
Limited Warranty: 10 Years
Lock Face Size: 8 In. x 1-1/4 In.
Of Keys: 2
Origin: USA
Pack Height: 4.38"
Pack Length: 9.25"
Pack Qty: 1
Pack Volume: 227.64 in³
Pack Width: 5.63"
Pins: 6
Roseescutcheon Design: LE1 - Escutcheon
Screws: Combination
Series: 8200 Line Lever Mortise Locks
Ship Weight: 6.1 lbs.
Std Keyway: LA
Std Latch Backset Dim: 2-3/4 In.
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8 In.
Std Strike Number: 82-0110
Std Strike Type: ASA Strike
Std Strike Width: 1-1/4 In.
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
