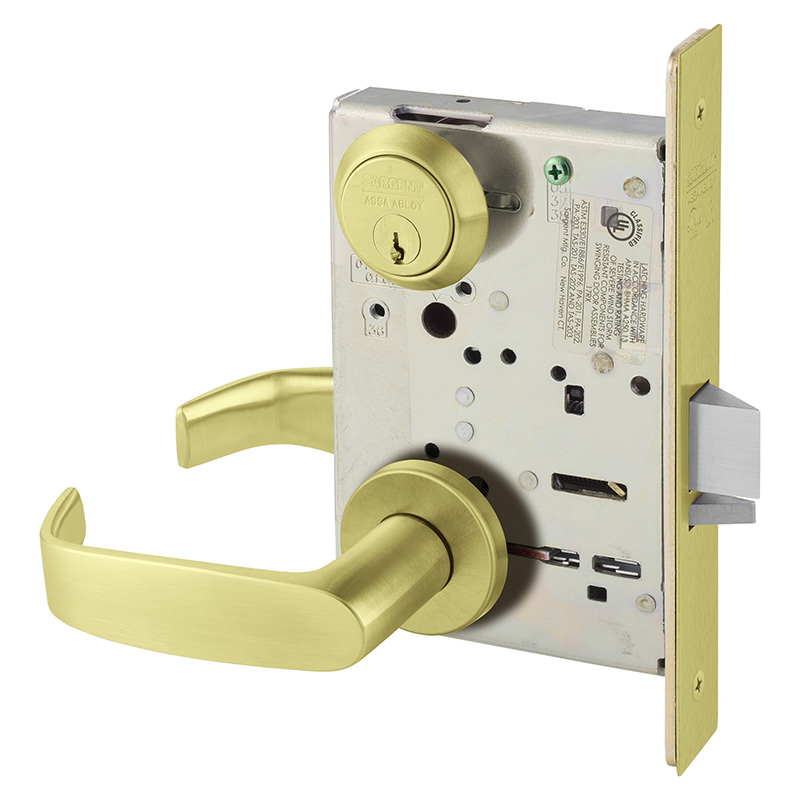

Sargent 8237 LNL 4 Grade 1 Classroom No DB Lock

Sargent 8237 LNL 4 Grade 1 Classroom No DB is a Grade 1 Classroom Mortise Lock designed for superior strength and durability. Featuring a sleek L-lever and LN-rose design, this lock is field reversible and equipped with a conventional cylinder and ASA strike, finished in elegant satin brass. This model exceeds ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it one of the strongest mortise locks available in the industry. Its robust construction utilizes high-quality components to ensure maximum security and performance, vital for high-traffic environments such as schools and hospitals. The lock is UL-cUL listed for three-hour fire doors, offering peace of mind in emergency situations. With a variety of lever designs and architectural finishes available, the Sargent 8237 can seamlessly match various aesthetics while providing flexible functionality. It supports multiple functions, including electromechanical and security options, making it an excellent choice for diverse applications. The 10-year warranty reinforces its reliability, while the ease of installation and maintenance simplifies usage for professionals. Invest in the Sargent 8237 LNL for a blend of strength, reliability, and aesthetic versatility that meets the demands of modern building security.

Grade 1 Classroom No DB

Grade 1 Classroom Mortise Lock, L - Lever, LN - Rose, Field Reversible, Conventional Cylinder, ASA Strike, Satin Brass

When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability

Constructed with the highest quality components to provide maximum security, durability and performance.

Considered the industry benchmark for all mortise locks on the market today, the robust lock is an attractive solution with a multitude of lever and escutcheon styles available.

Features:

• ANSI/BHMA Grade 2 certified for cycle and strength requirements
• UL-cUL listed for three-hour fire doors and windstorm applications
• Thru-bolted lever trim and strengthened cylinder retainer
• Available with security key systems (Degree, Signature, KESO, and XC)
• Available in 58 different functions, including electromechanical, security (freewheeling, security escutcheon, anti-vandal pull trim) and monitoring
• 6 lever designs, 2 roses/escutcheons designs, and 14 architectural finishes offered
• Available with behavioral health trim
• 10-year warranty
• Patented design and construction

Benefits:

• Strength & Reliability: Exceeds independent testing, making it the most durable mortise lock in the industry.
• Security: Security features provide resistance against unauthorized entry and vandalism.
• Flexibility & Aesthetics: Visual design with a variety of functions, lever designs and architectural finishes match a wide range of styles and make it perfect for all types of applications (such as offices, hospitals, behavioral health environments, schools/universities).
• Ease of Installation & Maintenance: Multifunctional lockbody makes switching functions easy and reduces inventory requirements.
