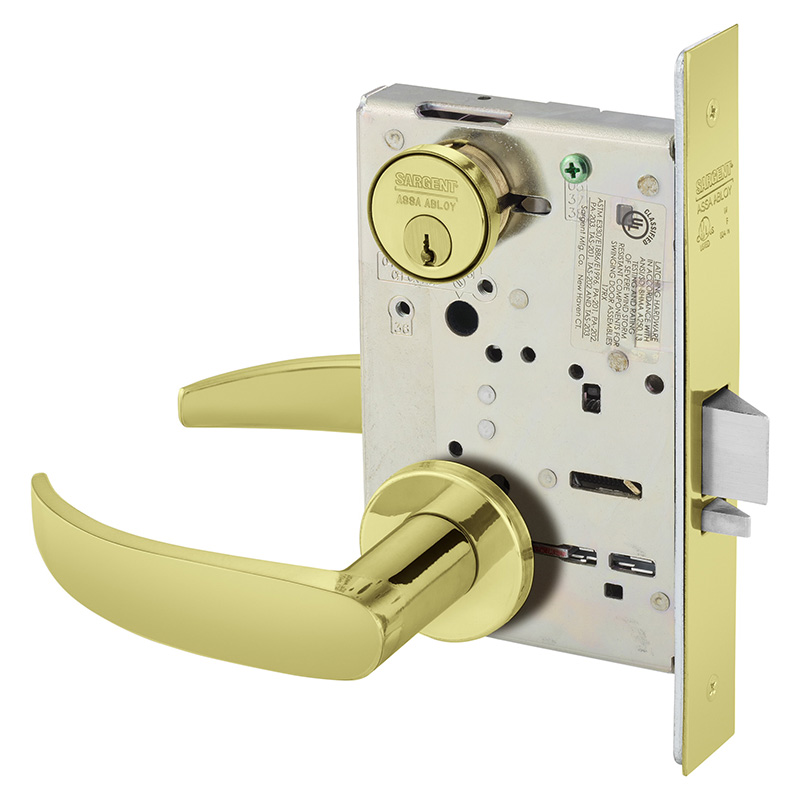

Sargent 8237 LNP 3 Grade 1 Classroom Door Hardware No DBSargent 8237 LNP 3 Grade 1 Classroom No DB delivers exceptional strength and reliability, making it a top choice for various applications including schools, offices, and healthcare facilities. This Grade 1 Classroom Mortise Lock features a P-Lever design and LN-Rose, ensuring a contemporary aesthetic that complements any environment. Its field-reversible handing and conventional cylinder offer flexibility for various door configurations. Engineered to exceed ANSI/BHMA A156.13 Series 1000 Grade 1 standards, the Sargent 8237 is built with high-quality components that provide maximum security and performance. It is UL-cUL listed for three-hour fire doors, ensuring safety in emergency situations. The lock’s robust construction includes a thru-bolted lever trim and a strengthened cylinder retainer, enhancing durability against wear and unauthorized access. With a variety of functions available-58 in total-along with six lever designs and 14 architectural finishes, this lock can be tailored to fit the specific needs and styles of your project. Backed by a 10-year warranty, the Sargent 8237 offers peace of mind along with ease of installation and maintenance, making it an ideal choice for professionals who prioritize security and aesthetics in their door hardware solutions.
Grade 1 Classroom No DB
Grade 1 Classroom Mortise Lock, P - Lever, LN - Rose, Field Reversible, Conventional Cylinder, ASA Strike, Bright Brass
When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability
Constructed with the highest quality components to provide maximum security, durability and performance.
Considered the industry benchmark for all mortise locks on the market today, the robust lock is an attractive solution with a multitude of lever and escutcheon styles available.
Features:
- ANSI/BHMA Grade 2 certified for cycle and strength requirements
- UL-cUL listed for three-hour fire doors and windstorm applications
- Thru-bolted lever trim and strengthened cylinder retainer
- Available with security key systems (Degree, Signature, KESO, and XC)
- Available in 58 different functions, including electromechanical, security (freewheeling, security escutcheon, anti-vandal pull trim) and monitoring
- 6 lever designs, 2 roses/escutcheons designs, and 14 architectural finishes offered
- Available with behavioral health trim
- 10-year warranty
- Patented design and construction
Benefits:
- Strength & Reliability: Exceeds independent testing, making it the most durable mortise lock in the industry.
- Security: Security features provide resistance against unauthorized entry and vandalism.
- Flexibility & Aesthetics: Visual design with a variety of functions, lever designs and architectural finishes match a wide range of styles and make it perfect for all types of applications (such as offices, hospitals, behavioral health environments, schools/universities).
- Ease of Installation & Maintenance: Multifunctional lockbody makes switching functions easy and reduces inventory requirements.
Attributes
Ansi Function: F05 - Classroom
Baa Qualified: Yes
Bolt Projection: 3/4 In. Latch
Country of origin: USA
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/4 In.
Finish: 605/US3
Fire Rated: 2 Hours {B}
Fire Rating: 2 Hours {B}
Function: 37-Classroom
Grade: Grade 1
Handing: Field Reversible
Keying: Keyed Different
Keys: Cut
Leverknob Design: P - Lever
Limited Warranty: 10 Years
Lock Face Size: 8 In. x 1-1/4 In.
Of Keys: 2
Origin: USA
Pack Height: 4.38"
Pack Length: 9.25"
Pack Qty: 1
Pack Volume: 227.64 in³
Pack Width: 5.63"
Pins: 6
Roseescutcheon Design: LN - Rose
Screws: Combination
Series: 8200 Line Lever Mortise Locks
Ship Weight: 6.1 lbs.
Std Keyway: LA
Std Latch Backset Dim: 2-3/4 In.
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8 In.
Std Strike Number: 82-0110
Std Strike Type: ASA Strike
Std Strike Width: 1-1/4 In.
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
